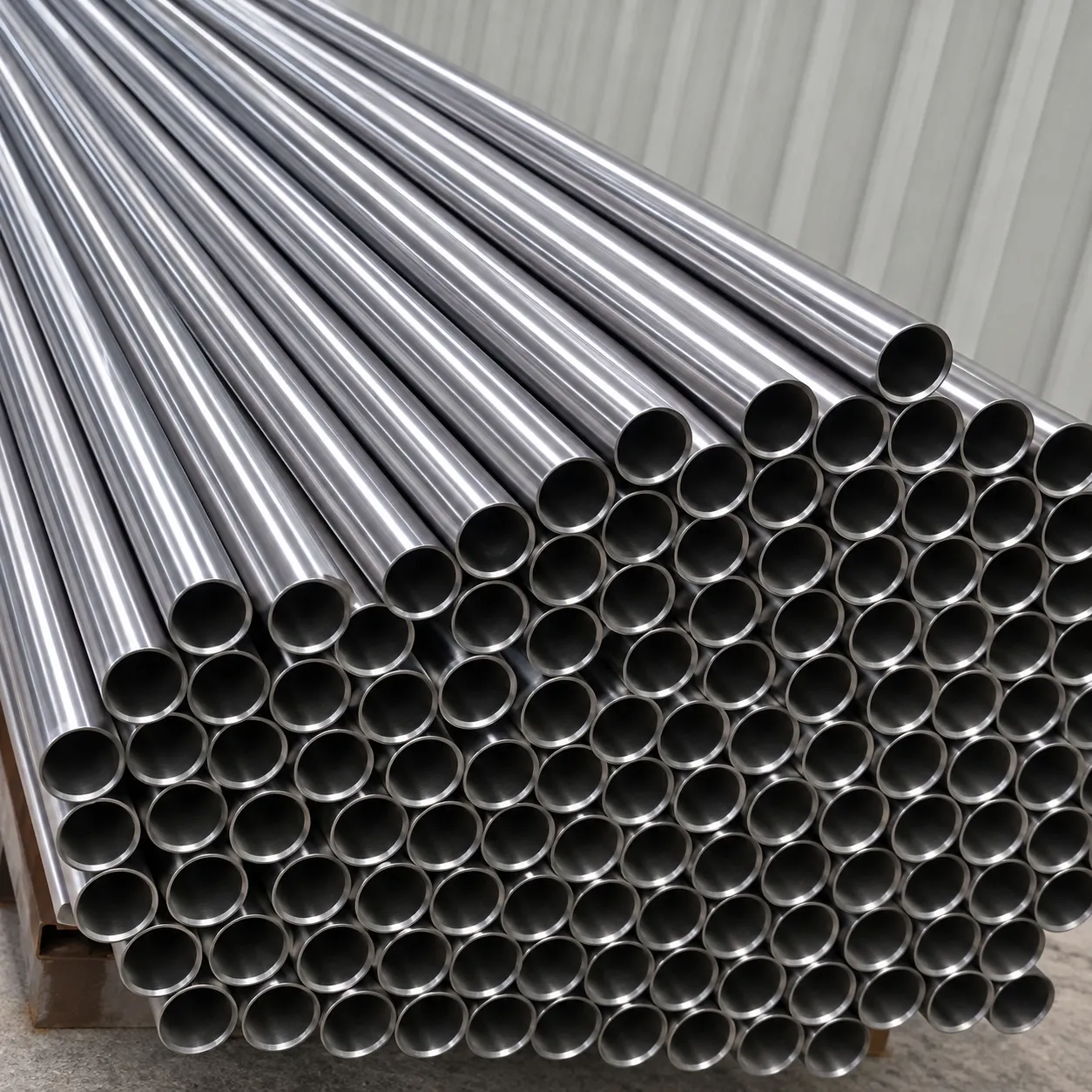

Stainless steel 316L pipe
316L Stainless Steel Seamless Pipe is an austenitic stainless steel pipe widely selected for applications requiring good corrosion resistance, particularly in environments containing chlorides and other corrosive media. The addition of molybdenum to the 316L composition improves resistance to localized corrosion compared with many standard stainless steel grades.
The low-carbon 316L grade is commonly used in welded and fabricated equipment because its lower carbon content helps reduce the risk of sensitization during suitable welding and fabrication processes.
316L seamless pipes are used in chemical processing, pharmaceutical equipment, food processing, marine applications, water treatment, petrochemical systems, and industrial piping where the material must withstand demanding service conditions.
316L stainless steel pipe specifications
316L stainless steel pipe specifications
| SPECIFICATION | DETAILS |
|---|---|
| Shapes | Square, round, rectangle |
| Sizes | 1/2 inch – 24 inch NB |
| Tolerance | ±10% |
| Length | 1/2 to 12 meter |
| Wall Thickness | 0.8 - 12.7 mm |
| Surface Finish | Bright, Annealing, Polished |
| Pipe End | Beveled, Plain |
| Packaging | Wooden Box, Bubble Wraps, Bundled |
| Standards | ASTM A312 | ASME SA312 |
| Testing | Third party inspection, Hardness test, Impact test, Fatigue mechanics test, PMI test, Tensile test |
| Documentation | Mill Test Certificates, PMI Test Reports, Visual Inspection |
| Services | Cutting, Heat Treatment, Shearing |

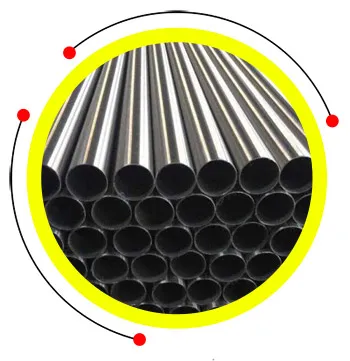

Stainless steel 316L pipe

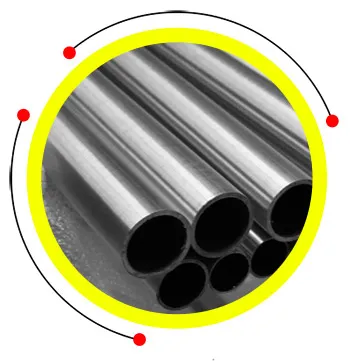

SS 316L seamless pipe

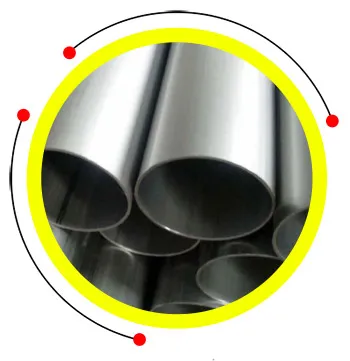

ASTM A312 TP316L welded pipe

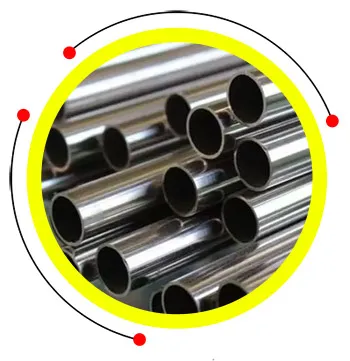

SA312 TP316L hollow pipe

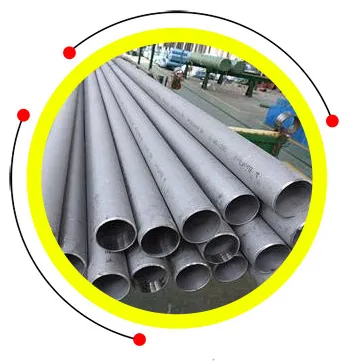

SS 316L ERW pipes

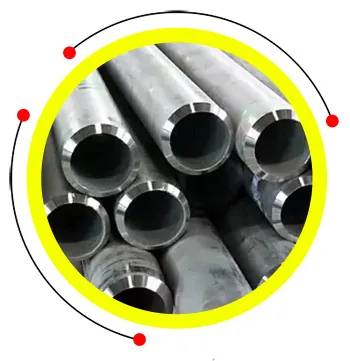

UNS S31603 round pipe
SS 316L seamless pipe applications
- Construction
- Power Plants sector
- Oil and Gas Processing
- Textile Machinery
- Pulp and Paper sector
SS 316L pipe weight chart
SS 316L pipe weight chart
| Nominal size [inches] | Weight [lb/ft] | Outside diameter [inches] | Wall thickness [inches] | Wall thickness [mm] | Outside diameter [mm] | Weight [kg/m] |
|---|---|---|---|---|---|---|
| 1 1/4″ DN32 | 2.29 | 1.66 | 0.14 | 3.56 | 42.2 | 3.41 |
| 1″ DN25 | 1.69 | 1.32 | 0.133 | 3.38 | 33.4 | 2.52 |
| 10″ DN250 | 40.79 | 10.75 | 0.365 | 9.27 | 273.1 | 60.7 |
| 2″ DN50 | 3.68 | 2.375 | 0.154 | 3.91 | 60.3 | 5.47 |
| 3 1/2″ | 9.18 | 4.0 | 0.226 | 5.74 | 101.6 | 13.66 |
| 1/2″ DN15 | 0.85 | 0.84 | 0.109 | 2.77 | 21.3 | 1.27 |
| 1 1/2″ DN40 | 2.74 | 1.9 | 0.145 | 3.68 | 48.3 | 4.08 |
| 12″ DN300 | 49.91 | 12.75 | 0.375 | 9.53 | 323.9 | 74.28 |
| 3/4″ DN20 | 1.14 | 1.05 | 0.113 | 2.87 | 26.7 | 1.7 |
| 4″ DN100 | 10.87 | 4.5 | 0.237 | 6.02 | 114.3 | 16.18 |
| 2 1/2″ DN65 | 5.84 | 2.875 | 0.203 | 5.16 | 73.0 | 8.69 |
| 3″ DN80 | 7.64 | 3.5 | 0.216 | 5.49 | 88.9 | 11.36 |
| 6″ DN150 | 19.11 | 6.625 | 0.28 | 7.11 | 168.3 | 28.44 |
| 5″ DN125 | 14.72 | 5.563 | 0.258 | 6.55 | 141.3 | 21.91 |
| 8″ DN200 | 28.77 | 8.625 | 0.322 | 8.18 | 219.1 | 42.82 |
316L stainless steel pipe pressure rating
316L stainless steel pipe pressure rating
| Pipe Size (inches) |
Pipe Schedule | Temperature (°F) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 750 | 100 | 600 | 200 | 500 | 300 | 700 | 400 | 650 | ||
| 8" | 160 | 1885 | 3175 | 2004 | 2738 | 2103 | 2460 | 1905 | 2262 | 1944 |
| 2" | 40 | 1129 | 1902 | 1201 | 1640 | 1260 | 1474 | 1141 | 1355 | 1165 |
| 5" | 40 | 797 | 1342 | 847 | 1158 | 889 | 1040 | 805 | 956 | 822 |
| 2" | 160 | 2671 | 4499 | 2840 | 3880 | 2980 | 3486 | 2699 | 3205 | 2755 |
| 5" | 80 | 1176 | 1981 | 1250 | 1709 | 1312 | 1535 | 1189 | 1411 | 1213 |
| 1" | 80 | 2501 | 4213 | 2659 | 3634 | 2791 | 3265 | 2528 | 3002 | 2580 |
| 10" | 40 | 578 | 974 | 615 | 840 | 945 | 755 | 584 | 694 | 596 |
| 1" | 160 | 3646 | 6140 | 3876 | 5296 | 4068 | 4759 | 3684 | 4375 | 3761 |
| 10" | 160 | 1868 | 3147 | 1986 | 2714 | 2085 | 2439 | 1880 | 2242 | 1927 |
| 1.5" | 80 | 1889 | 3182 | 2009 | 2744 | 2108 | 2466 | 1909 | 2267 | 1949 |
| 8" | 80 | 1005 | 1692 | 1068 | 1459 | 1121 | 1311 | 1015 | 1205 | 1036 |
| 1.5" | 160 | 2743 | 4619 | 2916 | 3984 | 3060 | 3580 | 2772 | 3291 | 2829 |
| 3" | 40 | 1072 | 1806 | 1140 | 1558 | 1196 | 1400 | 1084 | 1287 | 1106 |
| 4" | 80 | 1314 | 2213 | 1397 | 1909 | 1466 | 1715 | 1328 | 1577 | 1355 |
| 6" | 40 | 724 | 1219 | 770 | 1052 | 808 | 945 | 732 | 869 | 747 |
| 3" | 80 | 1516 | 2553 | 1612 | 2202 | 1691 | 1979 | 1532 | 1819 | 1564 |
| 6" | 160 | 1953 | 3289 | 2076 | 2836 | 2179 | 2549 | 1973 | 2343 | 2014 |
| 4" | 40 | 909 | 1531 | 967 | 1321 | 1014 | 1187 | 919 | 1091 | 938 |
SS 316L schedule 40 pipe thickness
SS 316L schedule 40 pipe thickness
| Nominal Pipe Size (NPS) | SCH 40 Wall Thickness (mm) | SCH 40 Wall Thickness (inches) |
|---|---|---|
| 1/2" | 2.77 | 0.109" |
| 3/4" | 2.87 | 0.113" |
| 1" | 3.38 | 0.133" |
| 1 1/2" | 3.68 | 0.145" |
| 2" | 3.91 | 0.154" |
| 3" | 5.49 | 0.216" |
| 4" | 6.02 | 0.237" |
| 6" | 7.11 | 0.280" |
| 8" | 8.18 | 0.322" |
SS 316L pipe schedule chart
SS 316L pipe schedule chart
| NB | inch | 1 1/2 | 2 | 2 1/2 | 3 | 4 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | 40 | 50 | 65 | 80 | 100 | 3 | 6 | 10 | 15 | 20 | 25 | 32 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |
| Sch 40S | mm | 3.68 | 3.91 | 5.16 | 5.49 | 6.02 | 1.73 | 2.24 | 2.31 | 2.77 | 2.87 | 3.38 | 3.56 | 6.55 | 7.11 | 8.18 | 9.27 | 9.52 | 11.13 | 12.7 | 14.27 | 15.09 | 17.48 |
| Sch 80S | mm | 5.08 | 5.54 | 7.01 | 7.62 | 8.56 | 2.41 | 3.02 | 3.2 | 3.75 | 3.91 | 4.55 | 4.85 | 9.53 | 10.97 | 12.7 | 12.7 | 12.7 | 19.05 | 21.41 | 23.8 | 26.19 | 30.96 |
| OD | mm | 48.3 | 60.3 | 73 | 88.9 | 114.3 | 10.3 | 13.7 | 17.1 | 21.3 | 26.7 | 33.4 | 42.2 | 141.3 | 168.3 | 219.1 | 273.1 | 323.9 | 355.6 | 406.4 | 457.2 | 508 | 609.6 |
| Sch 5S | mm | 1.65 | 1.65 | 2.11 | 2.11 | 2.11 | 1.24 | 1.24 | 1.24 | 1.65 | 1.65 | 1.65 | 1.65 | 2.77 | 2.77 | 2.77 | 3.4 | 3.96 | 3.96 | 4.19 | 4.19 | 4.78 | 5.54 |
| Sch 10S | mm | 2.77 | 2.77 | 3.05 | 3.05 | 3.05 | 1.24 | 1.65 | 1.65 | 2.11 | 2.11 | 2.77 | 2.77 | 3.4 | 3.4 | 3.76 | 4.19 | 4.57 | 4.78 | 4.78 | 4.78 | 5.54 | 6.35 |
| Sch 160S | mm | 7.14 | 8.74 | 9.53 | 11.1 | 13.49 | 4.75 | 5.54 | 6.35 | 6.35 | 15.88 | 18.2 | 23 | 28.6 | 33.32 | 35.71 | 40.46 | 45.71 | 49.99 | 59.54 | |||
| Sch XXS | mm | 10.16 | 11.07 | 14.2 | 15.24 | 17.12 | 7.47 | 7.82 | 9.09 | 9.7 | 19.05 | 21.95 | 22.23 | 25.4 | 25.4 |
Stainless steel 316L pipe sizes
Stainless steel 316L pipe sizes
| Nominal Pipe Size (NPS) | Outside Diameter (OD) | |
|---|---|---|
| inch | milimeter | milimeter |
| 5" | 125 | 141.3 |
| 1" | 25 | 33.4 |
| 14" | 350 | 355.6 |
| 1.1/4" | 32 | 42.2 |
| 3" | 80 | 88.9 |
| 1.1/2" | 40 | 48.3 |
| 4" | 100 | 114.3 |
| 2" | 50 | 60.3 |
| 10" | 250 | 273.1 |
| 1/8" | 3 | 10.3 |
| 6" | 150 | 168.3 |
| 1/4" | 6 | 13.7 |
| 18" | 450 | 457.2 |
| 3/8" | 10 | 17.1 |
| 8" | 200 | 219.1 |
| 1/2" | 15 | 21.3 |
| 12" | 300 | 323.8 |
| 3/4" | 20 | 26.7 |
| 20" | 500 | 508.0 |
| 2.1/2" | 65 | 73.0 |
| 24" | 600 | 610.0 |
| 16" | 400 | 406.4 |
316L SS pipe dimensions
316L SS pipe dimensions
| Outside Diameter |
Qty/B | 1.5 | 0.9 | 2.0 | 0.6 | 6.0 | 0.7 | 5.0 | 0.8 | 1.0 | 3.0 | 1.2 | 4.0 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Inches | Lgh | Kgs | |||||||||||
| 63.5 | 21/2" | 10 | 14.13 | 8.56 | 18.69 | 7.62 | 9.50 | 27.58 | 11.36 | |||||
| 25.4 | 1" | 100 | 5.45 | 3.35 | 2.26 | 2.63 | 2.99 | 3.71 | 4.41 | |||||
| 50.8 | 2" | 10 | 11.24 | 6.82 | 14.83 | 6.08 | 7.57 | 21.79 | 9.04 | |||||
| 152.4 | 6" | 10 | ||||||||||||
| 9.5 | 3/8" | 100 | 1.82 | 1.18 | 0.81 | 0.94 | 1.06 | 1.29 | 1.51 | |||||
| 22.2 | 7/8" | 100 | 4.72 | 2.91 | 1.97 | 2.29 | 2.60 | 3.22 | 3.83 | |||||
| 12.7 | 1/2" | 100 | 2.55 | 1.61 | 1.10 | 1.28 | 1.45 | 1.78 | 2.10 | |||||
| 38.1 | 11/2" | 50 | 8.34 | 5.09 | 3.42 | 3.98 | 4.53 | 5.64 | 6.73 | |||||
| 15.9 | 5/8" | 100 | 3.28 | 2.05 | 1.39 | 1.62 | 1.84 | 2.26 | 2.68 | |||||
| 31.8 | 11/4" | 50 | 6.91 | 4.23 | 2.84 | 3.31 | 3.77 | 4.68 | 5.58 | |||||
| 19.1 | 3/4" | 100 | 4.01 | 2.49 | 1.69 | 1.96 | 2.22 | 2.75 | 3.26 | |||||
| 28.6 | 11/8" | 50 | 6.18 | 3.79 | 2.55 | 2.97 | 3.38 | 4.19 | 5.00 | |||||
| 88.9 | 31/2" | 10 | 19.92 | 12.03 | 26.41 | 10.71 | 13.36 | 39.16 | 15.99 | 51.60 | ||||
| 41.3 | 15/8" | 50 | 9.07 | 5.52 | 3.71 | 4.32 | 4.92 | 6.12 | 7.31 | |||||
| 76.2 | 3" | 10 | 17.03 | 10.30 | 22.55 | 9.17 | 11.43 | 33.37 | 13.68 | 43.88 | ||||
| 44.5 | 13/4" | 50 | 9.80 | 5.96 | 4.00 | 4.66 | 5.31 | 6.61 | 7.90 | |||||
| 127 | 5" | 10 | ||||||||||||
| 101.6 | 4" | 10 | 22.82 | 30.27 | 87.16 | 73.39 | 44.95 | 18.31 | 59.32 | |||||
Mechanical properties of UNS s31603 round pipe
Mechanical properties of UNS s31603 round pipe
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength (MPa) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 316L | 485 | 40% | 170 | 95 | 217 |
SS 316L pipe chemical composition
SS 316L pipe chemical composition
| Grade | Mn | Cr | Si | C | S | P | Ni | Mo | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 316L | min. | - | 16.0 | - | - | - | - | 10.0 | 2.00 | - |
| max. | 2.00 | 18.0 | 0.75 | 0.08 | 0.03 | 0.045 | 14.0 | 3.00 | 0.10 | |
316L stainless steel pipe price
316L stainless steel pipe price
| Description | Price per kg ( USD) | Price per kg (INR) |
|---|---|---|
| Ss 316L Welded Pipe, Size: 2 inch | $ 4.08 | ₹ 350 |
| Stainless steel 316L pipes, Thickness: 0.5 To 50 Mm | $ 2.91 | ₹ 250 |
| 1/2 inchSs 316L round pipe, 6 meter | $ 3.26 | ₹ 280 |
SA312 Tp316L hollow pipe equivalent grades
SA312 Tp316L hollow pipe equivalent grades
| STANDARD | UNS | BS | WERKSTOFF NR. | JIS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 316L | S31603 | 316S11 / 316S13 | 1.4404 / 1.4435 | SUS 316L | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Physical properties of ASTM A312 Tp316L welded pipe
Physical properties of ASTM A312 Tp316L welded pipe
| Grade | Density (kg/m3) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | Mean Coefficient of Thermal Expansion (m/m/0C) | Elastic Modulus (GPa) | Thermal Conductivity (W/m.K) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 316L | 8000 | 500 | 740 | 15.9 | 16.2 | 17.5 | 193 | 16.3 | 21.5 |
SS 316L pipe hsn code
SS 316L pipe hsn code
| Material | HS code |
|---|---|
| SS 316L | 73041110 |
316L stainless steel pipe roughness
316L stainless steel pipe roughness
| MATERIAL SURFACE | ABSOLUTE ROUGHNESS COEFFICIENT Ε MM |
|---|---|
| Drawn Brass / Copper | 0.0015 |
| SS 316L | 0.015 |
| Lead, Aluminum Alloy | 0.001 to 0.002 |
SS 316L schedule 10 pipe thickness
SS 316L schedule 10 pipe thickness
| Nominal Pipe Size (NPS) | Schedule 10 Wall Thickness (mm) | Schedule 10 Wall Thickness (inches) |
|---|---|---|
| 1/2" | 2.11 | 0.083" |
| 3/4" | 2.11 | 0.083" |
| 1" | 2.77 | 0.109" |
| 1 1/2" | 2.77 | 0.109" |
| 2" | 2.77 | 0.109" |
| 3" | 3.05 | 0.120" |
| 4" | 3.05 | 0.120" |
| 6" | 3.40 | 0.134" |
| 8" | 3.76 | 0.148" |
SS 316L erw pipe temperature range
SS 316L erw pipe temperature range
| Condition | Temperature Range |
|---|---|
| Cryogenic Applications | -196°C to 0°C (-320°F to 32°F) |
| Normal Operating Range | 0°C to 425°C (32°F to 797°F) |
| High-Temperature Resistance | 425°C to 870°C (797°F to 1600°F) |
| Maximum Service Temperature | Up to 870°C (1600°F) |
AISI 316L pipe welding process
AISI 316L pipe welding process
| Sl. No. | Abbreviation | Welding Process |
|---|---|---|
| 1 | GTAW (TIG) | Gas Tungsten Arc Welding |
| 2 | GMAW (MIG) | Gas Metal Arc Welding |
| 3 | SMAW (Stick) | Shielded Metal Arc Welding |
| 4 | FCAW | Flux-Cored Arc Welding |
| 5 | PAW | Plasma Arc Welding |
What Is 316L Stainless Steel Seamless Pipe?
A 316L stainless steel seamless pipe is manufactured from Type 316L austenitic stainless steel without a longitudinal welded seam. The designation 316L refers to a low-carbon version of Type 316 stainless steel. Key characteristics include:
- Austenitic stainless steel structure
- Low carbon content — reduces risk of sensitization during welding
- Chromium-nickel-molybdenum alloy composition
- Good general corrosion resistance
- Improved resistance to pitting and crevice corrosion compared with 304 in many chloride environments
- Good weldability
- Suitable for chemical, food, pharmaceutical and marine applications
The actual suitability of 316L depends on the chemical environment, temperature, concentration, pressure and service conditions.
Applications of 316L Stainless Steel Seamless Pipe
Chemical Processing
Used for selected process piping and equipment exposed to corrosive chemicals.
Pharmaceutical Industry
316L is widely used in suitable pharmaceutical and process environments because of its corrosion resistance and fabrication characteristics.
Food & Beverage
Used in selected hygienic processing and fluid-handling systems.
Marine Applications
316L is commonly considered for marine and chloride-containing environments because of its molybdenum content.
Water Treatment
Used in suitable water-processing and industrial fluid systems.
Petrochemical Industry
Used in selected process and utility applications where corrosion resistance is required.
Heat Exchangers
Can be used in suitable heat-transfer and process systems.
Request a Quote for 316L Stainless Steel Seamless Pipe
Share your grade, size, schedule, quantity, applicable standard and testing requirements. Our team will respond within 24 hours.
