SS decorative profiles
Specification chart of stainless steel decorative profiles
Specification chart of stainless steel decorative profiles
| SPECIFICATION | DETAILS |
|---|---|
| Length | 8 Feet & 10 Feet |
| Grade | SS 304, SS 316 & SS 202 |
| Thickness | 0.6 ~ 2.0 mm |
| Finishes | Hairline | Mirror | Bead Blast |
| Color | Gold, Black, Rose Gold, Silver |
| Technology | Square edge technology |

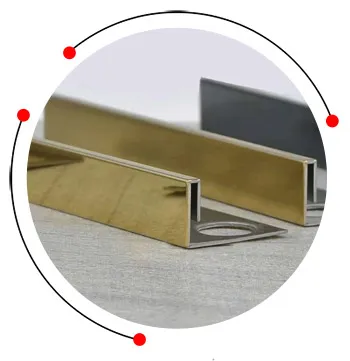

Stainless steel decorative profiles

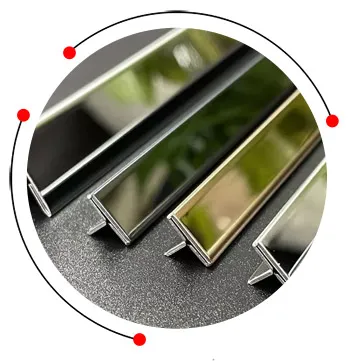

SS decorative profile

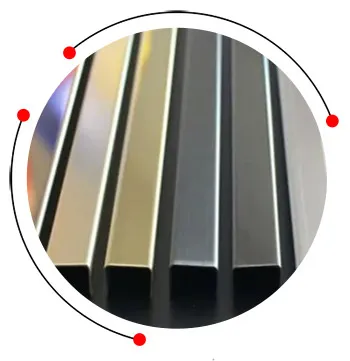

Decorative SS profile sections

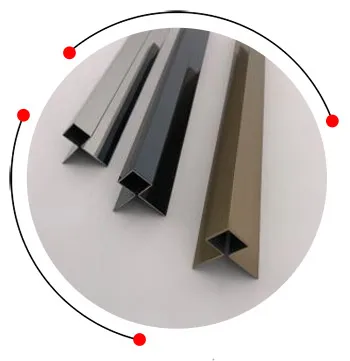

SS 304 decorative profiles

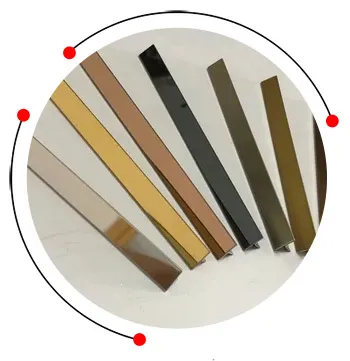

Decorative stainless steel profile sections

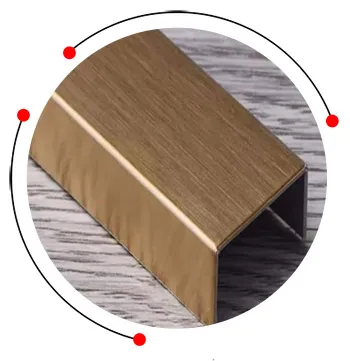

Decorative SS profiles
Decorative SS profile sections color option
- Gold
- Rose God
- Black
- Silver
- Champagne (Mirror & Brushed Both finished)
- Antique Hairline
- Antique Copper, etc.
SS 304 decorative profiles equivalent grades
SS 304 decorative profiles equivalent grades
| Grade | EN / DIN | UNS | BS | JIS | ASTM |
|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | 304S15 / 304S31 | SUS 304 | A240 / A276 |
| SS 316 | 1.4401 | S31600 | 316S16 | SUS 316 | A240 / A276 |
| SS 201 | 1.4372 | S20100 | 201S17 | SUS 201 | A666 |
| SS 430 | 1.4016 | S43000 | 430S17 | SUS 430 | A240 |
Decorative stainless steel profile sections physical properties
Decorative stainless steel profile sections physical properties
| Property | SS 304 | SS 201 | SS 316 | SS 430 |
|---|---|---|---|---|
| Thermal Conductivity (W/m·K) | 16.2 | 15 | 16.3 | 26 |
| Electrical Resistivity (µΩ·cm) | 72 | 70 | 74 | 60 |
| Density (g/cm³) | 7.93 | 7.90 | 7.98 | 7.75 |
| Melting Point (°C) | 1400–1450 | 1400–1450 | 1375–1400 | 1425–1510 |
| Modulus of Elasticity (GPa) | 193 | 200 | 193 | 200 |
| Coefficient of Expansion (µm/m·K) | 17.2 | 17.0 | 16.0 | 10.4 |
Decorative SS profiles finish
- Mirror (No. 8)
- Satin (No. 4)
- Matte
- Hairline
- PVD Coated (Rose Gold, Gold, Bronze, Black, Champagne)
Size chart of stainless steel decorative patti
Size chart of stainless steel decorative patti
| Profile Type | Width (mm) | Thickness (mm) | Height (mm) | Length (m) |
|---|---|---|---|---|
| U-Profile | 6 / 8 / 10 / 12 | 0.6 – 2.0 | 10 / 12 / 15 | 2.5 / 3 |
| T-Profile | 10 / 15 / 20 | 0.8 – 1.5 | 10 – 20 | 2.5 / 3 |
| L-Angle | 10 × 10 / 15 × 15 / 20 × 20 | 0.6 – 2.0 | As per width | 2.5 / 3 |
| Flat Bar | 10 – 50 | 0.8 – 3.0 | Flat | 2.5 / 3 |
| Square Profile | 10 × 10 / 20 × 20 / 30 × 30 | 0.8 – 2.5 | Equal height | 2.5 / 3 |
SS 316 decorative profiles features
- Long-lasting and durable
- Elegant visual finish
- Corrosion and rust-resistant
- Easy to clean and maintain
- Customizable in shape, size, and color
Chemical composition of stainless steel decorative profiles
Chemical composition of stainless steel decorative profiles
| Element | Percentage (%) |
|---|---|
| Manganese (Mn) | <2% |
| Silicon (Si) | <1% |
| Chromium (Cr) | 18–20% |
| Nickel (Ni) | 8–10.5% |
| Carbon (C) | <0.08% |
| Iron (Fe) | Balance |
| Phosphorus (P) | <0.045% |
| Sulfur (S) | <0.03% |
SS decorative profile mechanical properties
SS decorative profile mechanical properties
| Property | SS 316 | SS 304 |
|---|---|---|
| Tensile Strength | 515–750 MPa | 505–720 MPa |
| Yield Strength | 205–300 MPa | 205–290 MPa |
| Elongation | 40–50% | 40–50% |
| Hardness (HB) | 160–200 | 170–200 |
Decorative SS profile sections applications
Decorative SS profile sections applications
| Walls | Ceilings | Tiles |
| Flooring | Main door | Interior decoration |
| Bathroom | Living room | House |
| Hotel Lobby | Hotel Reception | First class lounge |
| KTV | Restaurants | Subways |
FAQ
What are the different types of SS decorative profiles?
- U Profile
- T Profile
- L Profile (Angle)
- C Profile
- J Profile
- Flat Profile
- Square Profile
- Round Profile
What thicknesses are available for SS 304 decorative profiles?
Typically from 0.5 mm to 3 mm.
What SS grades are used for decorative profiles?
Common grades include SS 304, SS 201, and SS 316 depending on the application.
Where are decorative stainless steel profile sections commonly used?
Used in wall edges, interiors, tile corners, cabinetry, facades, and elevators.
How do you install stainless steel decorative profiles?
- Surface Preparation
- Application of Adhesive or Fasteners
- Secure Attachment
- Additional Fixation (if needed)
- Finishing Touches
