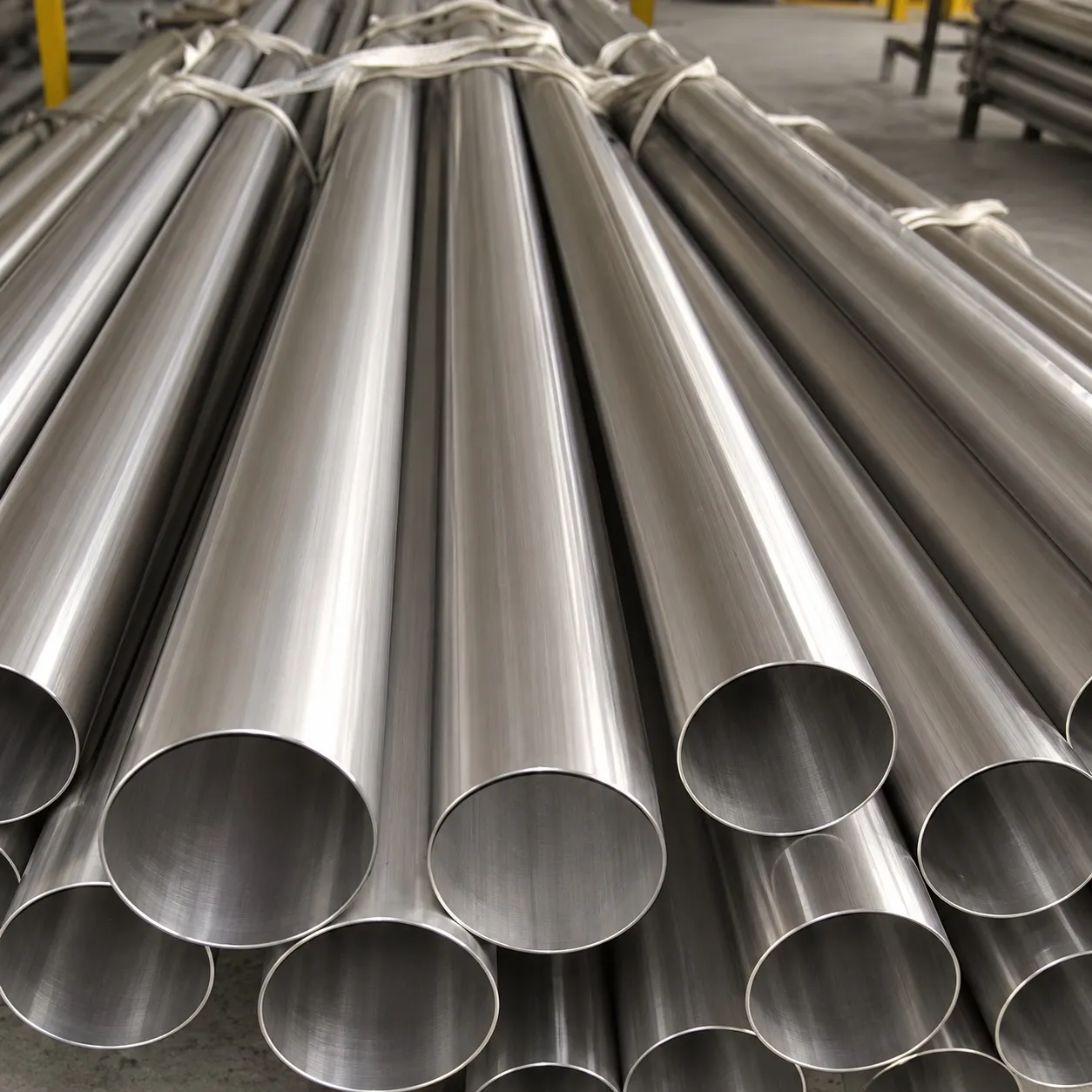

Stainless steel 316 pipe

ISO Certified Manufacturer

SS 316 seamless pipe

20+

Years of Experience

50+

Grades in Stock

1/8"–2–4"

Size Range

100%

Quality Tested

316 stainless steel pipe specifications

SPECIFICATION	DETAILS
Sizes	OD : 0.35 to 6.35 mm, Size: : 1/8 upto 30" NB, Thickness : 0.1 to 1.2mm
ERW pipe sizes	Wall Thickness: 12.7 - 0.8 mm, OD: 6.35 - 114.3 mm, Length : 26 meter
Shapes	Round, Square, Rectangular
Welded pipe sizes	OD: 36 to 1/4 inch, Wall Thickness: 20 to 1 mm
Seamless pipe sizes	OD: 12 to 1/8 inches, Wall Thk : 12.7 to 0.6 mm
Manufacturing process	Cold Formed, Hot Formed, Precision Rolled
Application	Gas Tube, Heat Exchanger, Boiler, Fluid Tube
Packing	Plastic Bags, Bundled, Wooden Boxes
Documentation	PMI Test Reports, Mill Test Certificates, Visual Inspection
Shapes	Honed, U Bend, Square, Round, Hex, Hydraulic, Precision, Rectangle, Coil
Tolerance	Outer Dia +/-0.05mm, Inner Dia +/-0.05mm
Manufacturing standard	DIN 17456, DIN 17458, BS, ASME B36.19M, EN 10216 – 2, ASME SA 312/ ASTM A312

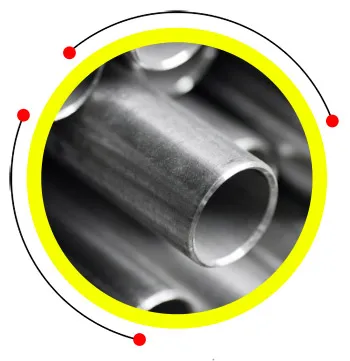

Stainless steel 316 pipe

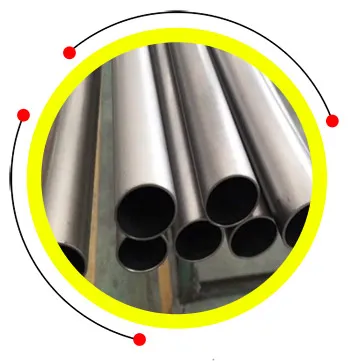

SS 316 seamless pipe

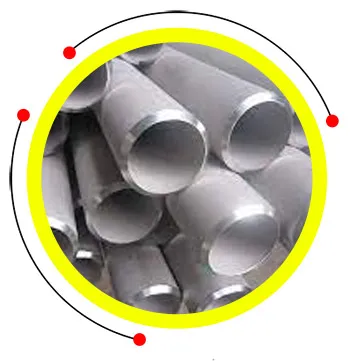

ASTM A312 tp316 hollow pipe

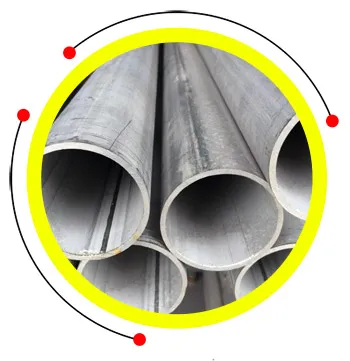

SS 316 welded pipe

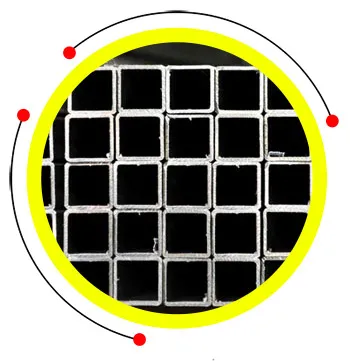

UNS S31600 square pipe

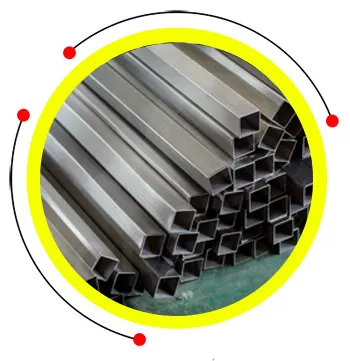

SS 316 ERW square pipe

316 SS pipe dimensions

NPS(Inches)	OD (milimeter)	Wall Thick (milimeter)	Wall Thick (Inches)	Weight (lb/ft)
31/2	1016	3.05	0.120	5.01
6	1683	3.40	0.134	9.35
18	4570	4.78	0.188	36.05
3/4	257	211	0.083	0.87
4	114.3	3.05	0.120	5.66
8	219.1	3.76	0.148	13.50
1 1/2	483	11/2	0.109	21
1	334	2.77	0.109	141
1/2	213	2.11	0.083	0.68
21/2	73.0	3.05	0.120	3.56
2	60.3	277	0.109	2.66
11/4	42.2	277	0.109	1.82
3	88.9	3.05	0.120	4.37
16	406.4	4.78	0.188	32.02
10	2731	4.19	0.165	18.79
14	355.6	4.78	0.188	27.97
30	7620	7.92	0.312	99.60
5	141.3	340	0.134	7.82
12	3239	4.57	0.180	24.34

316 stainless steel pipe sizes

Size in Milimeter	Kilogram per meter
25 x 25 x 1.05	1.015
40 x 40 x 2.00	2.045
20 x 20 x 2.00	0.018
30 x 30 x 1.02	1.011
30 x 30 x 2.00	1.084
15 x 15 x 1.05	0.066
12 x 12 x 1.05	0.059
20 x 20 x 1.05	0.090
25 x 25 x 1.02	0.093
40 x 40 x 1.02	1.050
15 x 15 x 1.02	0.054
30 x 30 x 1.05	1.037
20 x 20 x 1.02	0.073
40 x 40 x 1.05	1.086
25 x 25 x 2.00	1.050
40 x 40 x 3.00	3.076
25 x 25 x 3.00	2.022
30 x 30 x 3.00	2.072

316 SS pipe pressure rating

OD (inches)	Collapse Pressure (PSI)	Yield Strength (PSI) Minimum	Average Wall thickess (inches)	Tensile Strength (PSI) Minimum	Theoretical Burst Pressure (PSI)	Working Pressure (PSI) 25% of Burst	Theoretical Yield Point (PSI)
.750	2669	30000	.035	75000	7721	1930	3088
.750	4749	30000	.065	75000	15726	3931	6290
.750	6637	30000	.095	75000	25446	6362	10179
.750	8064	30000	.120	75000	35294	8824	14118
.875	1859	30000	.028	75000	5128	1282	2051
.875	3172	30000	.049	75000	9459	2365	3784
.875	5152	30000	.083	75000	17560	4390	7024
.875	6543	30000	.109	75000	24886	6221	9954
1	1633	30000	.028	75000	4449	1112	1780
1	2796	30000	.049	75000	8149	2037	3259
1	4567	30000	.083	75000	14928	3732	5971
1	5827	30000	.109	75000	20908	5227	8363
.250	5967	30000	.028	75000	21649	5412	8660
.250	9455	30000	.049	75000	48355	12089	19342
.375	3029	30000	.020	75000	8955	2239	3582
.375	5077	30000	.035	75000	17213	4303	6885
.375	8597	30000	.065	75000	39796	9949	15918
.500	3172	30000	.028	75000	9459	2365	3784
.500	5316	30000	.049	75000	18284	4571	7313
.500	8307	30000	.083	75000	37275	9319	14910
.625	2568	30000	.028	75000	7381	1845	2953
.625	4335	30000	.049	75000	13947	3487	5579
.625	6910	30000	.083	75000	27124	6781	10850
.625	8639	30000	.109	75000	40172	10043	16069
1	6963	30000	.134	75000	27459	6865	10984
1.250	2260	30000	.049	75000	6380	1595	2552
1.250	3719	30000	.083	75000	11485	2871	4594
1.250	4776	30000	.109	75000	15843	3961	6337
1.250	5742	30000	.134	75000	20468	5117	8187
1.500	1896	30000	.049	75000	5243	1311	2097
1.500	3136	30000	.083	75000	9333	2333	3733
1.500	4043	30000	.109	75000	12754	3188	5101
1.500	4881	30000	.134	75000	16315	4079	6526
1.750	1176	30000	.035	75000	3125	781	1250
1.750	2146	30000	.065	75000	6019	1505	2407
1.750	3080	30000	.095	75000	9135	2284	3654
1.750	3832	30000	.120	75000	11921	2980	4768
1.750	4645	30000	.148	75000	15268	3817	6107
2	1032	30000	.035	75000	2720	680	1088
2	1887	30000	.065	75000	5214	1303	2086
2	2715	30000	.095	75000	7873	1968	3149
2	3384	30000	.120	75000	10227	2557	4091
2	4111	30000	.148	75000	13028	3257	5211

SS 316 schedule 40 pipe thickness

Nominal Pipe Size (NPS)	Sch 40 Wall Thickness (inches)	Outside Diameter (OD) (inches)
1-1/4"	0.140	1.660
1-1/2"	0.145	1.900
2"	0.154	2.375
2-1/2"	0.203	2.875
3"	0.216	3.500
3-1/2"	0.226	4.000
4"	0.237	4.500
1/8"	0.068	0.405
1/4"	0.088	0.540
3/8"	0.091	0.675
1/2"	0.109	0.840
3/4"	0.113	1.050
1"	0.133	1.315
5"	0.258	5.563
6"	0.280	6.625
8"	0.322	8.625
10"	0.365	10.750
12"	0.375	12.750
14"	0.437	14.000
16"	0.500	16.000
18"	0.562	18.000
20"	0.593	20.000
24"	0.687	24.000

Stainless steel 316 schedule 80 pipe thickness

Nominal Pipe Size (NPS)	Schedule 80 Wall Thickness (inches)	Outside Diameter (OD) (inches)
3"	0.300	3.500
3-1/2"	0.318	4.000
4"	0.337	4.500
5"	0.375	5.563
6"	0.432	6.625
8"	0.500	8.625
10"	0.593	10.750
1/8"	0.095	0.405
1/4"	0.119	0.540
3/8"	0.126	0.675
1/2"	0.147	0.840
3/4"	0.154	1.050
1"	0.179	1.315
1-1/4"	0.191	1.660
1-1/2"	0.200	1.900
2"	0.218	2.375
2-1/2"	0.276	2.875
12"	0.687	12.750
14"	0.750	14.000
16"	0.843	16.000
18"	0.937	18.000
20"	1.031	20.000
24"	1.218	24.000

Hydrostatic Test
PMI Test
100% RT
Ultrasonic Test

Temperature range of SS 316 ERW pipe

Description	Temperature Range
ASTM A312 TP316	-40°F to 1600°F

EN 10216 – 2
ASME B36.19M
EN 10216 – 5, NSF 61
EN 10217-7
EN 10088-2
ASME B36.19, DIN 17456

316 stainless steel pipe price list

Description	Price per kg ( USD)	Price per kg (INR)
SS 316 Round Pipes, 12 meter	$ 1.75	₹ 150
1/4 " To 24 " round Stainless steel 316 pipe, 6 meterThickness: 1 Mm To 20 Mm	$ 4.37	₹ 375
SS 316 seamless pipe, 6 meter	$ 4.78	₹ 410

Stainless steel 316 pipe weight

NPS	Wall thickness [milimeter]	OD [milimeter]	Wall thickness in inches	OD in inches	Weight [kilogram/meter]	Weight [lb/ft]
1 1/2 “	3.68	48.3	0.145	1.900	4.05	2.72
2 1/2″	5.16	73.0	0.203	2.875	8.63	5.79
1/8″	1.73	10.3	0.068	0.405	0.37	0.24
1/2″	2.77	21.3	0.109	0.840	1.27	0.85
1″	3.38	33.4	0.133	1.315	2.50	1.68
3 1/2″	5.74	101.6	0.226	4.000	13.57	9.11
5″	6.55	141.3	0.258	5.563	21.77	14.62
8″	8.18	219.1	0.322	8.625	42.55	28.55
12″	10.31	323.8	0.406	12.750	79.73	53.52
16″	12.70	406.4	0.500	16	123.30	82.77
20″	15.09	508.0	0.594	20	183.42	123.11
32″	17.48	813.0	0.688	32	342.91	230.08

SS 316 pipe chemical composition

Element	C	UNS	Mn	P	S	Cr	Si	Ni
TP316	0.08	S30400	2	0.045	0.03	18.0-20.0	1	8.0-11.0

SS316 pipe mechanical properties

Material	Heat	Tensile Strength	Temperature	Elongation %, Minimum	Yield Strength
	Treatment	Ksi (MPa), Minimum.	Minimum.		Ksi (MPa), Minimum.
			º F(º C)
TP316	Solution	75(515)	1900 (1040)	35	30(205)

316 stainless steel exhaust pipe equivalent grade

Grade	Swedish SS	UNS No	Euronorm		Old British		Japanese JIS
Grade	Swedish SS	UNS No	No	Name	BS	En	Japanese JIS
316	2332	S31600	1.4301	X5CrNi18-10	304S31	58E	SUS 316

Physical properties of 316 stainless steel seamless pipe

Grade	Density (kg/m3)	Mean Coefficient of Thermal Expansion (m/m/0C)			Elastic Modulus (GPa)	Specific Heat 0-1000C (J/kg.K)	Thermal Conductivity (W/m.K)		Electrical Resistivity (n.m)
Grade	Density (kg/m3)	0-1000C	0-3150C	0-5380C	Elastic Modulus (GPa)	Specific Heat 0-1000C (J/kg.K)	at 1000C	at 5000C	Electrical Resistivity (n.m)
304L	8000	17.2	17.8	18.4	193	500	16.2	21.5	720

SS 316 pipe hsn code

grade	HSN code
316	73041110

Stainless steel 316 pipe roughness

Finish	Average Roughness (Ra)
As Fabricated	0.2 to 0.5 µm
Polished	0.05 to 0.2 µm
Electropolished	0.02 to 0.1 µm

SS 316 pipe schedule chart

NPS	Inner DIa	Outer Dia	Schedules	Wall	LBS per Ft
3/8"	.545	.675	10, 10S	.065	.4235
	.493		40, STD, 40S	.091	.5676
	.423		80, XS, 80S	.126	.7388
3/4"	.884	1.050	10, 10S	.083	.8572
	.742		80, XS, 80S	.154	1.474
	.824		40, STD, 40S	.113	1.131
	.434		XX	.308	2.441
	.614		160	.218	1.937
1 1/4"	1.442	1.660	10, 10S	.109	1.806
	1.380		40, STD, 40S	.140	2.273
	1.278		80, XS, 80S	.191	2.997
	1.160		160	.250	3.765
	.896		XX	.382	5.214
1/4"	.410	.540	10, 10S	.065	.3297
	.302		80, XS, 80S	.119	.5351
	.364		40, STD, 40S	.088	.4248
1/8"	.307	.405	10, 10S	.049	.1863
	.215		80, XS, 80S	.095	.3145
	.269		40, STD, 40S	.068	.2447
4 1/2"	4.290	5.000	XS, 80S	.355	17.61
4 1/2"	4.506	5.000	STD, 40S	.247	12.54
1/2"	.622	.840	40, STD, 40S	.109	.8510
	.466		160	.187	1.304
	.546		80, XS, 80S	.147	1.088
	.674		10, 10S	.083	.6710
	.252		XX	.294	1.714
1 1/2"	1.610	1.900	40, STD, 40S	.145	2.718
	1.337		160	.281	4.859
	1.500		80, XS, 80S	.200	3.631
	1.682		10, 10S	.109	2.085
	1.100		XX	.400	6.408
1"	1.097	1.315	10, 10S	.109	1.404
	1.049		40, STD, 40S	.133	1.679
	.957		80, XS, 80S	.179	2.172
	.815		160	.250	2.844
	.599		XX	.358	3.659
3"	3.260	3.500	10, 10S	.120	4.332
	3.068		40, STD, 40S	.216	7.576
	2.624		160	.438	14.32
	2.900		80, XS, 80S	.300	10.25
	2.300		XX	.600	18.58
2"	2.157	2.375	10, 10S	.109	2.638
	2.067		40, STD, 40S	.154	3.853
	1.939		80, XS, 80S	.218	5.022
	1.687		160	.344	7.462
	1.503		XX	.436	9.029
6"	6.065	6.625	40, STD, 40S	.280	18.97
	5.501		120	.562	35.39
	5.761		80, XS, 80S	.432	28.57
	6.357		10, 10S	.134	9.290
	5.189		160	.719	43.35
	4.897		XX	.864	53.16
3 1/2"	3.760	4.000	10, 10S	.120	4.937
	3.364		80, XS, 80S	.318	12.51
	3.548		40, STD, 40S	.226	9.109
	2.728		XX	.636	22.85
2 1/2"	2.635	2.875	10, 10S	.120	3.531
	2.469		40, STD, 40S	.203	5.793
	2.323		80, XS, 80S	.276	7.651
	2.125		160	.375	10.01
	1.771		XX	.552	13.70
4"	4.260	4.500	10, 10S	.120	5.613
	3.826		80, XS, 80S	.337	14.98
	3.438		160	.531	22.51
	3.624		120	.438	19
	4.026		40, STD, 40S	.237	10.790
	3.152		XX	.674	27.54

316 stainless steel pipe diameters

NPS (Inches)	Outside Diameter (OD) (milimeter)	SCH 40 (STD) milimeter	SCH 10 milimeter	SCH 160 milimeter	SCH 80 (XS) milimeter	SCH XXS milimeter)
1/8"	10.3	1.73	1.24	—	2.41	—
1/4"	13.7	2.24	1.65	—	3.02	—
3/8"	17.1	2.31	1.65	—	3.20	—
1/2"	21.3	2.77	1.65	4.78	3.73	7.47
3/4"	26.7	2.87	1.65	5.56	3.91	7.82
1"	33.4	3.38	2.11	6.35	4.55	9.09
1-1/4"	42.2	3.56	2.77	6.91	4.85	9.70
2"	60.3	3.91	2.77	8.74	5.54	11.07
2-1/2"	73.0	5.16	3.05	9.53	7.01	14.02
3"	88.9	5.49	3.05	11.13	7.62	15.24
4"	114.3	6.02	3.05	13.49	8.56	17.12
5"	141.3	6.55	3.40	15.88	9.53	19.05
6"	168.3	7.11	3.40	18.26	10.97	21.95
8"	219.1	8.18	3.76	23.01	12.70	27.79
1-1/2"	48.3	3.68	2.77	7.14	5.08	10.15
10"	273.0	9.27	4.19	28.58	15.09	34.93
12"	323.8	10.31	4.57	33.32	17.48	40.49
14"	355.6	11.13	4.78	35.71	19.05	43.56
16"	406.4	12.70	4.78	40.49	21.41	48.61
18"	457.2	14.27	4.78	45.24	23.83	53.98
20"	508.0	15.09	5.54	50.01	26.19	59.54
24"	609.6	17.48	6.35	59.54	31.75	70.87
