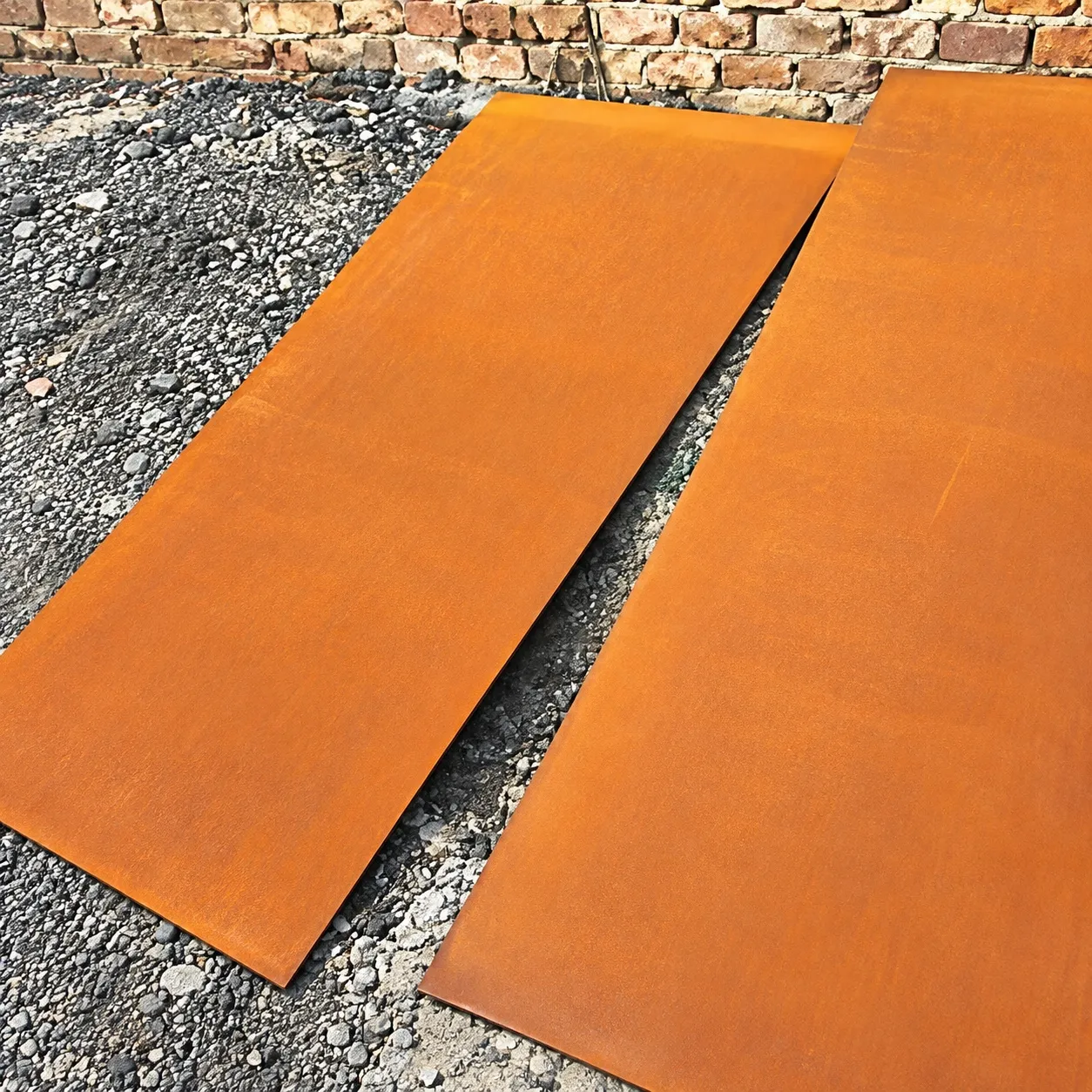

Corten steel sheet suppliers
Corten steel plate specification
Corten steel plate specification
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 2 to 60 mm |
| Width | 900 to 4800 mm |
| Length | Up to 12000 mm |
| Density | 8.03 kg/m3 |
| Standard | DIN 17177, BS-6323-6, EN 10217-1 & 2, EN 10305-2 & 3, BS-6323-5, JIS G 3445 |
| Services | Rolling, Pickling, Heat Treatment, Cutting, Annealed, Forging, Bending, Polish, Minor Fabrication, Cladding |
| Processing | Testing, Forming, Cutting, Drilling, Grinding, Machining |
| Method of cutting | Plasma, Waterjet , Laser cutting |
| Features | Low maintenance, Weatherproof, Hard-wearing |

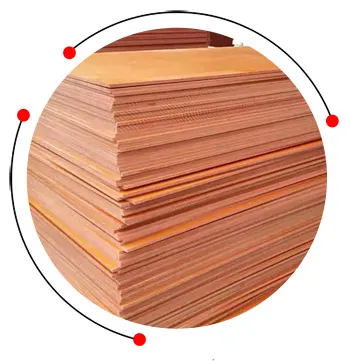

Corten steel sheet

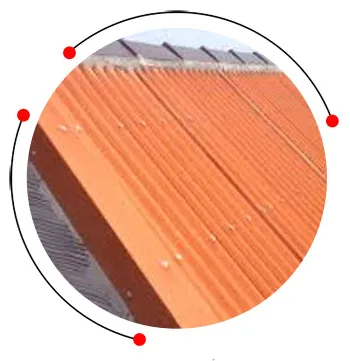

Corten roofing sheets

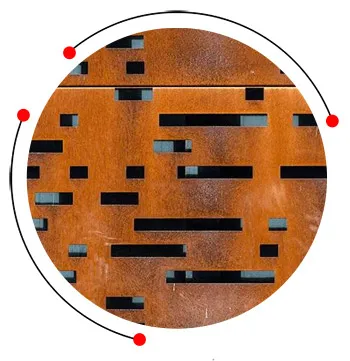

Corten perforated panels

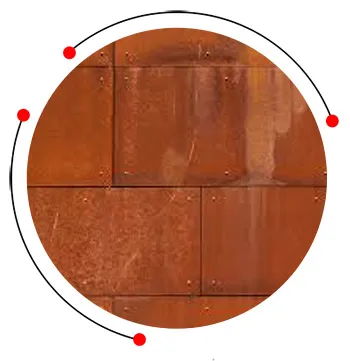

Corten steel panels

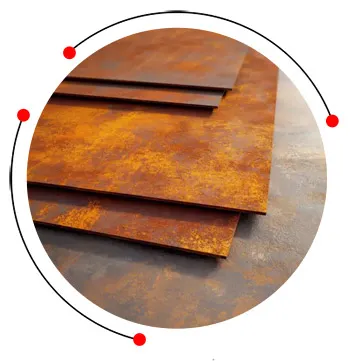

Corten sheet metal

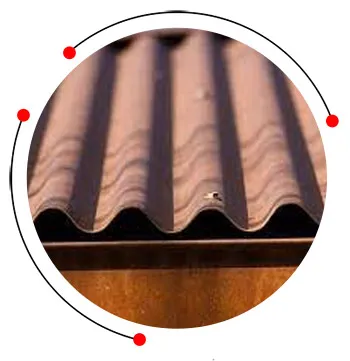

Corten corrugated sheet
Corten steel sheet sizes
Corten steel sheet sizes
| Thickness | Width | Weight (lbs/ft) |
Length |
|---|---|---|---|
| 3/8" | 48.00" | 15.315 | 120.00" |
| 1/4" | 48.00" | 10.210 | 120.00" |
| 1/4" | 60.00" | 10.210 | 120.00" |
| 1/2" | 48.00" | 20.420 | 120.00" |
Corten steel sheet thickness
Corten steel sheet thickness
| 3/4" | 1-1/2" | 1" | 1-1/8" | 1-1/4" | 1-3/8" |
| 3/16" | 5/8" | 1/4" | 5/16" | 3/8" | 1/2" |
| 1-3/4" | >2"-5" | 2" |
Weight chart of corten roofing sheets
Weight chart of corten roofing sheets
| Thickness | Weight (lbs/ft) |
|---|---|
| 1/4″ | 10.210 |
| 3/8″ | 15.315 |
| 1/4″ | 10.210 |
| 1/2″ | 20.420 |
Corten perforated panels dimension
Corten perforated panels dimension
| FINISH | STOCK | THICKNESS MM | SHEET SIZE MM |
|---|---|---|---|
| Patina Rust (to order) | Rusted | 0.8 – 3.0 | 3000 x 1500, 2500 x 1250 |
| Patina Rust (to order) | Rusted | 1 | 2500 x 1250 |
| Bright | Natural | 0.8 – 3.0 | 3000 x 1500, 2500 x 1250 |
| Bright | Corrugated | 0.8 | 3000 x 1110 |
| Bright | Natural | 1 | 2500 x 1250 |
| Rusted (to order) | Corrugated | 0.8 | 3000 x 1110 |
Corten sheet heat treatment
Corten sheet heat treatment
| Heat Treatment | Temperature °C |
|---|---|
| Normalising | 860 – 940 [target 910] |
| Stress Relieving | 550 – 600 [target 580] |
Corten steel panels processing
- Grinding
- Forming Drilling / Machining
- Cutting
- Testing
Corten sheet metal gauge chart
Corten sheet metal gauge chart
| Gauge | Corten sheet gauge W & L in inch |
|---|---|
| 12 | 0.105 * 60 * 120 |
| 14 | 0.075 * 36 * 120 |
| 14 | 0.075 * 48 * 120 |
| 16 | 0.060 * 36 * 120 |
| 16 | 0.060 * 48 * 96 |
| 16 | 0.060 * 48 * 120 |
| 16 | 0.060 * 60 * 120 |
| 18 | 0.048 * 36 * 120 |
| 18 | 0.048 * 48 * 120 |
| 20 | 0.036 * 36 * 120 |
| 20 | 0.036 * 48 * 120 |
| 7 | 0.1874 * 48 * 120 |
| 10 | 0.135 * 48 * 120 |
| 11 | 0.120 * 36 * 120 |
| 11 | 0.120 * 48 * 96 |
| 11 | 0.120 * 48 * 120 |
| 11 | 0.120 * 48 * 144 |
| 11 | 0.120 * 60 * 96 |
| 12 | 0.105 * 36 * 120 |
| 12 | 0.105 * 48 * 120 |
| 22 | 0.030 * 36 * 120 |
| 22 | 0.030 * 48 * 96 |
| 22 | 0.030 * 48 * 120 |
| 24 | 0.024 * 36 * 120 |
| 24 | 0.024 * 48 * 120 |
| 26 | 0.018 * 36 * 120 |
| 26 | 0.018 * 48 * 120 |
| 28 | 0.015 * 36 * 120 |

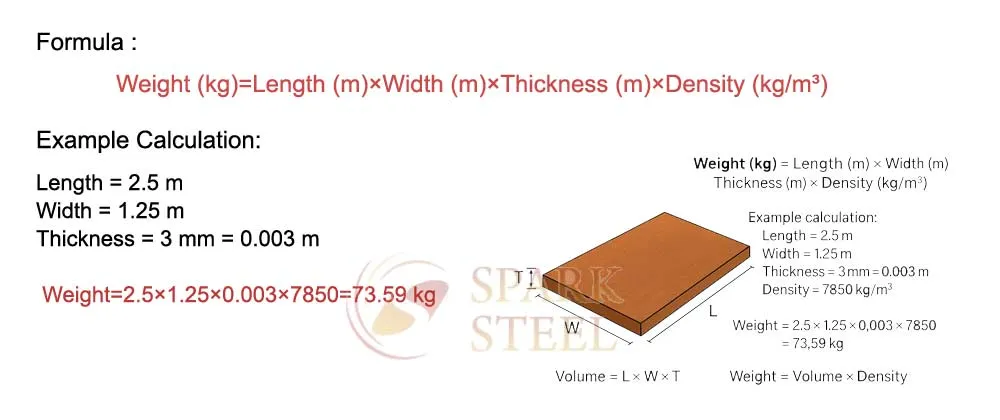

Corten steel sheet weight calculator
Application of corten steel perforated panels
- Tanks and containers
- Power station precipitators
- Windshields on chimneys
- Rail and road vehicles
- Exhaust systems
- Bridges
Corten corrugated sheet chemical composition
Corten corrugated sheet chemical composition
| ASTM 242 TYPE -1 | IRSM 41 -97 | A |
|
|---|---|---|---|
| Manganese | 1.00 | 0.25-0.45 | 0.20-50 |
| Nickel, max | – | 0.20-0.49 | 0.65 |
| Molybdenum, max | – | – | – |
| Vanadium | – | 0.050 | – |
| Copper | 0.20 min | 0.30-0.39 | 0.25-0.55 |
| Silicon | 0.25-0.40 | 0.28-0.72 | 0.25-0.75 |
| Phosphorus | 0.15 | 0.07-0.11 | 0.07-0.15 |
| Carbon, Max | 0.15 | 0.10 | 0.12 |
| Sulphur, max | 0.05 | 0.030 | 0.030 |
| Chromium | – | 0.30-0.50 | 0.50-1.25 |
| Aluminimum | – | 0.030 | – |
Corten corrugated metal panels mechanical properties
Corten corrugated metal panels mechanical properties
| Tensile Strength | Elongation | Min. Yield Point | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | 20 % min | [355 MPa] |
| ASTM 242 TYPE -1 | [480 MPa] | 16% min | [345 MPa] |
| ASTM 588 GR. A | [485 MPa] | 21% min | [345 MPa] |
Corten flat sheets equivalent grades
Corten flat sheets equivalent grades
| Material # | EN 10155 | NFA 35-502 | SEW 087 | UNI | ASTM | BS 4360 |
|
|
|---|---|---|---|---|---|---|---|---|
| 1.8959 | S355J0W | E 36 WB 3 | - | Fe 510 C2K1 | A 588 – A 242 Gr. 1 | WR 50 B | SMA 50 AW | |
| 1.8963 | S355J2G1W | - | WTSt 52-3 | Fe 510 D2K1 | A 588 Gr. A | WR 50 C | to | |
| 1.8965 | S355J2G2W | - | - | - | - | - | SMA 50 CP | |
| 1.8961 | S235J2W | E 24 W 4 | WTSt 37-3 | Fe 360 DK 1 | - | - | - | |
| 1.8945 | S355J0WP | Fe 510 C1K1 | E 36 WA 3 | WR 50 A | - | - | - | |
| 1.8946 | S355J2WP | E 36 WA 4 | - | Fe 510 D1K1 | A 242 Type 1 | - | - | |
| 1.8966 | S355K2G1W | E 36 WB 4 | - | - | A 709 Gr. 50 W | - | - | |
| 1.8967 | S355K2G2W | - | - | - | - | - | - |
Corrugated corten steel panels advantages and disadvantages
Advantages
- Weathered look
- Low maintenance
- Corrosion-resistant
- Durable and strong
Disadvantages
- Needs dry climate
- Higher cost
- Stains nearby surfaces
- Special welding required
Corten steel vs. Mild steel
Corten steel vs. Mild steel
| Property | Corten Steel | Mild Steel |
|---|---|---|
| Corrosion Resistance | High | Low |
| Appearance | Rusty Patina | Plain |
| Maintenance | Low | High |
| Strength | Higher | Moderate |
| Uses | Outdoor, Architecture | General Fabrication |
| Cost | Higher | Lower |
Perforated corten steel sheets hsn code
Perforated corten steel sheets hsn code
| Corten Steel Sheet | 7225.99.00 |
