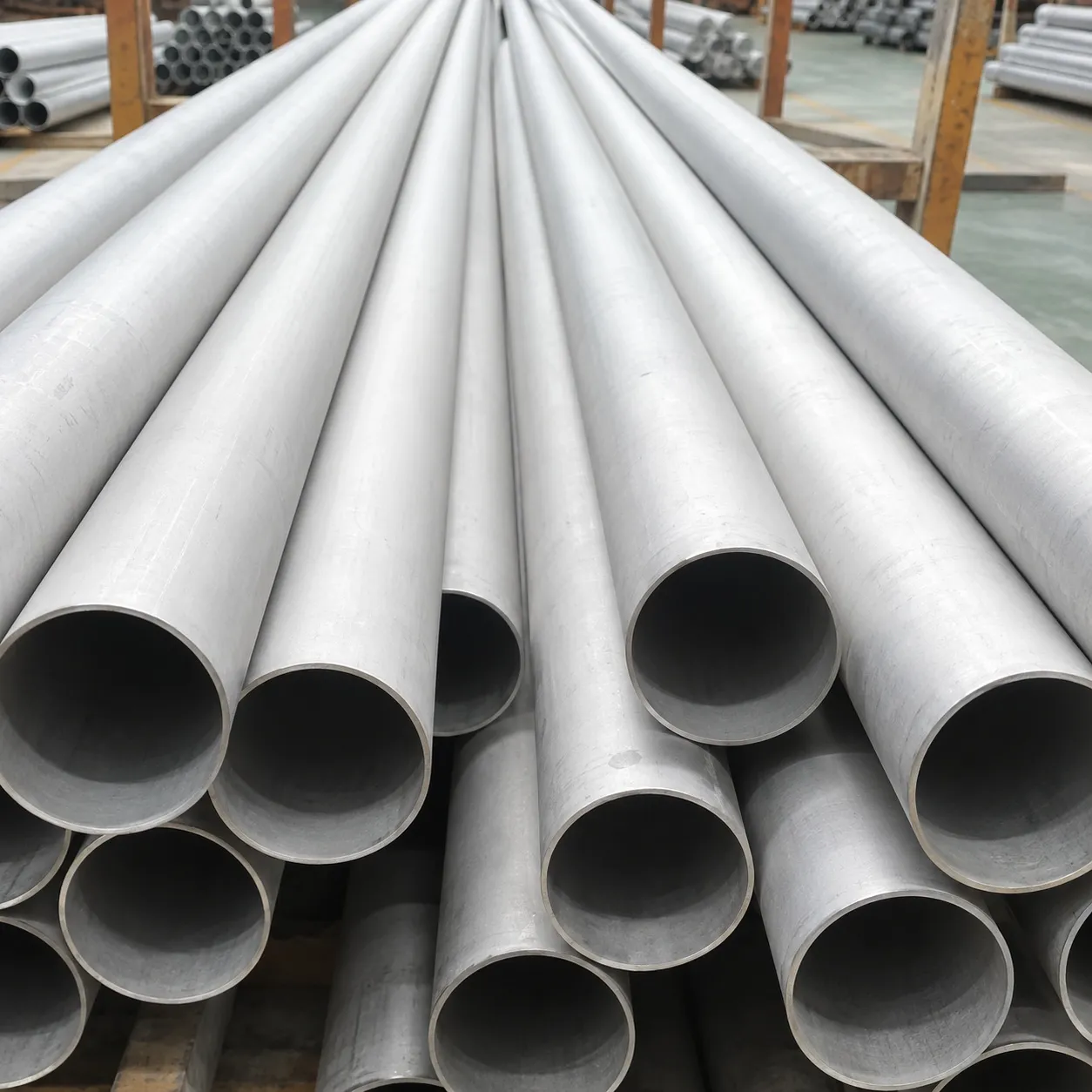

ASTM A790 UNS S32750 pipe

ISO Certified Manufacturer

Super Duplex S32750 Seamless Pipe

20+

Years of Experience

50+

Grades in Stock

1/8"–2–4"

Size Range

100%

Quality Tested

Specification of ASTM A790 UNS S32750 pipe

SPECIFICATION	DETAILS
Size	5.0 MM To 1219.2 MM
Thickness	0.3 To 50 MM
Swg and Bwg	10, 12, 14, 16, 18, 20 Swg.
Wall thickness	0.020" –0.220 Inch
Application	Oil Tube, Fluid Tube, Gas Tube, Heat exchanger and Boiler
Schedule	SCH20, SCH40, SCH30, STD, SCH40S, SCH80, SCH120

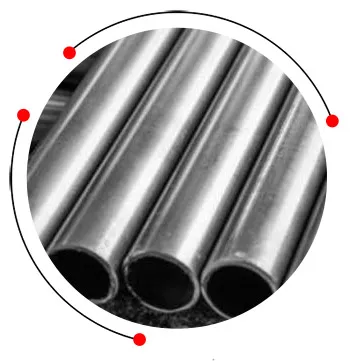

ASTM A790 UNS S32750 pipe

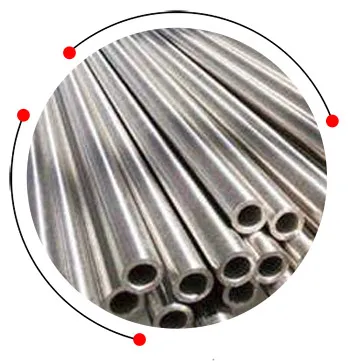

Super duplex S32750 seamless pipe

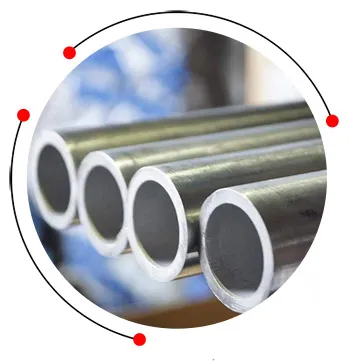

ASME SA 790 S32750 welded pipe

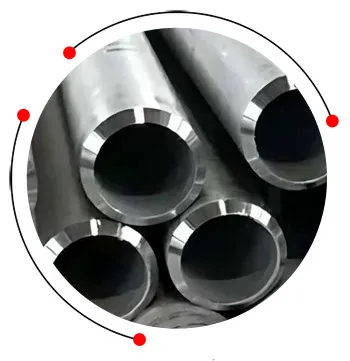

ASTM A790 UNS S32750 erw pipe

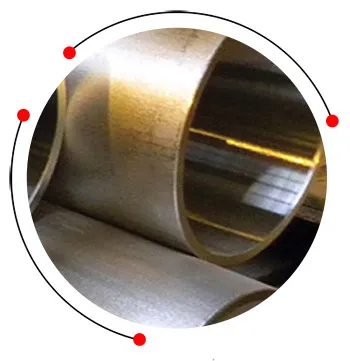

A790 super duplex S32750 efw pipe

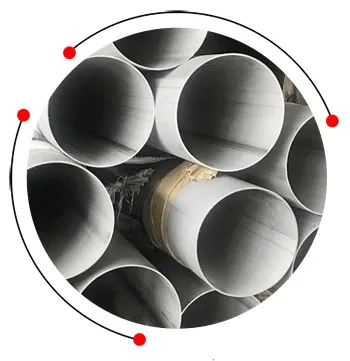

UNS S32750 duplex round pipe

Super duplex S32750 seamless pipe sizes

Pipe Outer Diameter MM	inch	schedule	Pipe wall thickness MM	Kg / M
26.67	3/4	80S	3.91	2.23
33.40	1	10S	2.77	2.13
33.40	1	40S	3.38	2.54
33.40	1	80S	4.55	3.29
33.40	1	160	6.352)	4.30
42.16	1¼	10S	2.77	2.73
42.16	1¼	40S	3.56	3.44
42.16	1¼	80S	4.85	4.53
42.16	1¼	160	6.352)	5.69
48.26	1½	10S	2.77	3.16
48.26	1½	40S	3.68	4.11
48.26	1½	80S	5.08	5.49
60.33	2	10S	2.77	3.99
60.33	2	40S	3.91	5.52
13.72	1/4	10S	1.65	0.50
13.72	1/4	40S	2.24	0.64
13.72	1/4	80S	3.02	0.81
17.15	3/8	10S	1.65	0.64
17.15	3/8	40S	2.31	0.86
17.15	3/8	80S	3.20	1.12
21.34	1/2	10S	2.11	1.02
21.34	1/2	40S	2.77	1.29
21.34	1/2	80S	3.73	1.65
26.67	3/4	10S	2.11	1.30
26.67	3/4	40S	2.87	1.71
60.33	2	80S	5.54	7.60
60.33	2	160	8.742)	11.29
73.03	2½	10S	3.05	5.35
73.03	2½	40S	5.16	8.77
73.03	2½	80S	7.01	11.59
88.90	3	10S	3.05	6.56
88.90	3	40S	5.49	11.47
88.90	3	80S	7.62	15.51
88.90	3	160	11.132)	21.67
101.60	3½	10S	3.05	7.53
101.60	3½	40S	5.74	13.78
101.60	3½	80S	8.08	18.92
114.30	4	10S	3.05	8.50
114.30	4	40S	6.02	16.32
114.30	4	80S	8.56	22.67
114.30	4	160	13.492)	34.05
141.30	5	40S	6.55	22.10
141.30	5	80S	9.53	31.44
141.30	5	160	15.882)	49.87
168.28	6	10S	3.4	14.04
168.28	6	40S	7.11	28.69
168.28	6	80S	10.97	43.21
168.28	6	120	14.27	54.75
168.28	6	160	18.262)	68.59
219.08	8	40S	8.18	43.20
219.08	8	80S	12.7	65.63
219.08	8	120	18.23	91.30
219.08	8	160	23.012)	112.97

Chemical composition of ASME SA 790 S32750 welded pipe

Carbon	Silicon	Manganese	Chromium	Nitrogen	Sulfur	Nickel	Molybdenum	Phosphorus
0.0030 maximum	0.08 maximum	1.020 maximum	24.00 to 26.00	0.024 to 0.032	0.0020 maximum	6.00 to 8.00	3.00 to 5.00	0.0035 maximum

Mechanical properties of ASTM A790 UNS S32750 erw pipe

Melting Range (°F)	2460
Density (g/centimeter 3)	7.8
UNS	S32750
Melting Range (°C)	1350
Density (lb/inch 3)	0.281

ASTM A790 super duplex S32750 efw pipe weight chart

NPS	Wall Thickness		Weight	Outside Diameter			Weight
NPS	inch	milimeter	kg/Mtr	inch	milimeter	Schedule	Lb/ft
8″	0.0188	4.0775	25.0233	8.0625	219		16.0940
	0.0203	5.0156	27.0198				18.0259
	0.0219	5.0563	29.0286				19.0661
	0.0250	6.0350	33.0308			20	22.0361
	0.0277	7.0036	36.0786			30	24.0696
	0.0322	8.0179	42.0352			40	28.0554
	0.0375	9.0525	49.0216				33.0041
	0.0406	10.0312	53.0085			60	35.0638
	0.0500	12.0700	64.0627			80 XHY	43.0388
10″	0.0188	4.0775	31.0588	10.0750	273		21.0207
	0.0219	5.0563	36.0689				24.0631
	0.0250	6.0350	41.0759			20	28.0035
	0.0307	7.0798	51.0002			30	34.0240
	0.0344	8.0738	56.0946				38.0231
	0.0365	9.0271	63.0301			40 STD	40.0483
	0.0438	11.0125	71.0852				48.0238
	0.0500	12.0700	81.0530			60 XHY	54.0735
	0.0594	15.0088	95.0969			80	64.0429
12″	0.0188	4.0775	37.0570	12.0750	324		25.0222
	0.0219	5.0563	43.0657				29.0309
	0.0250	6.0350	49.0713				33.0375
	0.0281	7.0137	55.0739				37.0420
	0.0312	7.0925	61.0735				41.0445
	0.0375	9.0525	73.0824				49.0562
	0.0406	10.0312	79.0727				53.0525
	0.0500	12.0700	97.0438				65.0415
	0.0562	14.0275	108.0966				73.0154
1/2″	0.0109	2.0769	1.0268	0.0840	21	40 STD	0.0851
	0.0147	3.0734	1.0621			80 STD	1.0088
3/4″	0.0113	2.0870	1.0684	1.0050	27	40 STD	1.0131
	0.0154	3.0912	2.0195			80 STD	1.0474
1″	0.0133	3.0378	2.0501	1.0315	33	40 STD	1.0679
	0.0179	4.0547	3.0325			80 STD	2.0172
1 1/4″	0.0140	3.0556	3.0385	1.0660	42	40 STD	2.0273
	0.0191	4.0851	4.0464			80 STD	2.0997
1 1/2″	0.0145	3.0683	4.0048	1.0900	48	40 STD	2.0718
	0.0200	5.0080	5.0409			80 STD	3.0361
2″	0.0154	3.0912	5.0441	2.0375	60	40 STD	3.0653
	0.0218	5.0537	7.0480			80 STD	5.0022
2 1/2″	0.0203	5.0516	8.0629	2.0875	73	40 STD	5.0793
	0.0276	7.0010	11.0411			80 STD	7.0661
3″	0.0216	5.0486	11.0284	3.0500	89	40 STD	7.0576
	0.0300	7.0620	15.0272			80 STD	10.0253
4″	0.0237	6.0020	16.0073	4.0500	114		10.0790
	0.0337	8.0560	22.0318				14.0983
6″	0.0188	4.0775	19.0252	6.0625	168		12.0924
	0.0203	5.0516	20.0739				13.0923
	0.0219	5.0563	22.0318				14.0983
	0.0250	6.0350	25.0354				17.0021
	0.0280	7.0112	58.0263			40 STD	18.0974
	0.0312	7.0925	31.0334				21.0036
	0.0375	9.0525	37.0285				25.0031
	0.0432	10.0973	42.0561			80 XHY	28.0573
	0.0500	12.0700	48.0719				32.0708
14″	0.0188	4.0775	41.0308	14.0000	356		27.0732
	0.0219	5.0563	48.0012				32.0233
	0.0250	6.0350	54.0685			20	36.0713
	0.0281	7.0137	61.0327				41.0172
	0.0312	7.0925	67.0939				45.0611
	0.0375	9.0525	81.0281			STD	54.0568
	0.0438	11.0125	94.0498			40	63.0441
	0.0500	12.0700	107.0381			XHY	72.0090
	0.0625	15.0875	132.0983				89.0278
18″	0.0219	5.0563	61.0948	18.0000	457		41.0588
	0.0250	6.0350	70.0593				47.0393
	0.0281	7.0137	79.0208				53.0176
	0.0312	7.0925	87.0792			20	58.0939
	0.0375	9.0525	105.0144			STD	70.0588
	0.0438	11.0125	122.0369			30	82.0152
	0.0500	12.0700	139.0198			XHY	93.0450
	0.0562	14.0275	155.0904			40	104.0666
	0.0625	15.0875	172.0754				115.0978
20″	0.0250	6.0350	78.0547	20.0000	508		52.0733
	0.0282	7.0163	88.0458				59.0386
	0.0312	7.0925	97.0719				65.0604
	0.0375	9.0525	117.0075			20 STD	78.0598
	0.0438	11.0125	136.0305				91.0508
	0.0500	12.0700	155.0106			30 XHY	104.0130
	0.0594	15.0088	183.0378			40	123.0110
	0.0625	15.0875	192.0640				129.0328
	0.0688	17.0475	211.0368				141.0901
16”	0.0188	4.0775	47.0290	16.0000	406		21.0748
	0.0219	5.0563	54.0980				36.0910
	0.0250	6.0350	62.0639			10	42.0053
	0.0281	7.0137	70.0268				47.0174
	0.0312	7.0925	77.0866			20	52.0275
	0.0344	8.0738	85.0677				57.0519
	0.0375	9.0525	93.0213			30 STD	62.0578
	0.0438	11.0125	108.0433				72.0797
	0.0500	12.0700	123.0289			40 XHY	82.0770
24″	0.0250	6.0350	94.0456	24.0000	610		63.0413
	0.0281	7.0137	106.0029				71.0183
	0.0312	7.0925	117.0573				18.0932
	0.0375	9.0525	140.0938			20 STD	64.0618
	0.0438	11.0125	164.0176				110.0219
	0.0500	12.0700	186.0923			XHY	125.0490
	0.0625	15.0875	232.0410				156.0028
	0.0688	17.0475	255.0148			40	171.0293
	0.0750	19.0050	277.0401				186.0233
30″	0.0250	6.0350	118.0318	30.0000	762		79.0433
	0.0281	7.0137	132.0851				89.0189
	0.0312	7.0925	147.0353			10	98.0925
	0.0375	9.0525	176.0731			STD	118.0648
	0.0438	11.0125	205.0983				138.0286
	0.0500	12.0700	234.0647			20 XHY	157.0530
	0.0625	15.0875	292.0066			30	196.0078
	0.0688	17.0475	320.0817				215.0380
	0.0750	19.0050	348.0988				234.0293
36″	0.0250	6.0350	142.0180	36.0000	914		95.0453
	0.0281	7.0137	159.0672				107.0196
	0.0312	7.0925	177.0133			10	118.0918
	0.0375	9.0525	215.0525			STD	142.0678
	0.0438	11.0125	247.0790				166.0353
	0.0500	12.0700	282.0372			20 XHY	198.0570
	0.0625	15.0875	351.0723				236.0128
	0.0688	17.0475	386.0487				259.0467
	0.0750	19.0050	420.0576				282.0353
42″	0.0312	7.0925	206.0914	42.0000	1067		138.0911
	0.0375	9.0525	248.0319			STD	166.0708
	0.0500	12.0700	33.0097			XHY	221.0610
	0.0750	19.0050	492.0163				330.0413
48″	0.0375	9.0525	284.0112	48.0000	1219	STD	190.0738
	0.0438	11.0125	331.0404				222.0487
	0.0500	12.0700	377.0822			XHY	253.0650
	0.0750	19.0050	563.0750				378.0473
	0.0875	22.0225	655.0969				440.0383

Flaring Test
Pitting Resistance Test
Flattening Test
Chemical Analysis – Spectro Analysis
Hardness Test
Intergranular Corrosion (IGC) Test
Micro and MacroTest
Positive Material Identification – PMI Testing

ASME SA 790 S32750 rectangular pipe equivalent grades

Alloy	British	Common Name	United States	European	Proof Stress	Tensile Strength	Elongation
2507	1.4410	Alloy 2507	F53	UNS S32750	550 [79.8]	800 [116]	15

Physical properties of UNS S32750 square pipe

Fracture Toughness, Kq (MPa.m)	475
Density (Kg.m-1)	7810
Specific Electrical Resistance, 20°C (µO.m)	0.80
Magnetic Permeability	33
Young’s Modulus (N/mm2)	199 x 103
Specific Heat, 20°C (J.Kg-1.°K-1)	475
Thermal conductivity, 20°C (W.m-1.°K-1)	14.2
Mean coefficient of thermal expansion, 20-100°C (°K-1)	11.1 x 10-6

ASME SA 790 UNS S32750 cold drawn seamless pipe price list

Description	Price in USD	Price in Kilogram (INR)
ASTM A790 UNS S32750 Pipe, Size: 2 inch	$ 8.18	₹ 700
Seamless A790 UNS S32750 Pipe, Thickness: 4mm, Size: 2 Inch	$ 8.42	₹ 720
Super Duplex UNS S32750 Pipe, Size: 6	$ 9.35	₹ 800

SA 790 Gr S32750 ERW pipe pressure rating

ASTM A790 UNS S32750 Pipe O.D. (in.)	Wall Thickness of ASTM A790 UNS S32750 seamless Pipe (inches)
ASTM A790 UNS S32750 Pipe O.D. (in.)	0.028	0.035	0.083	0.049	0.065	0.095	0.109	0.120
	Working Pressure (psig)
3/8		3100		4400	6100
1/2		2300		3200	4400
1/8	7900	10100
1/4	3700	4800		7000	9500
5/16		3700		5400	7300
3/4			4000	2200	3000	4600
1			2900		2200	3400	3900	4300
