ISO Certified Manufacturer
SA335 GR P5 seamless pipe
ASTM A335 P5 specification
ASTM A335 P5 specification
| SPECIFICATION | DETAILS |
|---|---|
| Sizes | 1/8 to 24 inch |
| Diameter | 19.05 - 114.3 mm |
| Manufacturing Types | Seamless, ERW, Welded, EFW |
| Schedule | SCH 10 - SCH 160 |
| Edges | Mill Edge, Slit Edge |
| Shapes | Round, Precision, Coil, Hydraulic, Square, Rectangle, Hex |

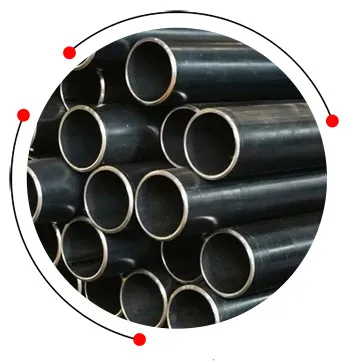

ASTM A335 P5 pipe

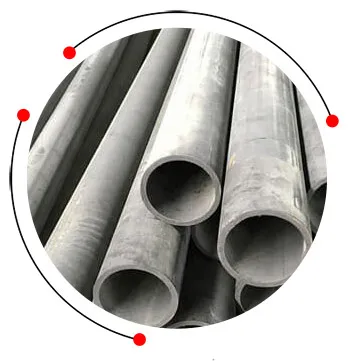

SA335 GR P5 seamless pipe

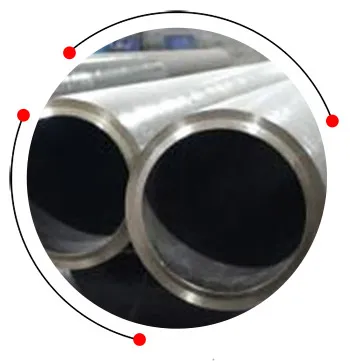

A335 P5 welded pipes

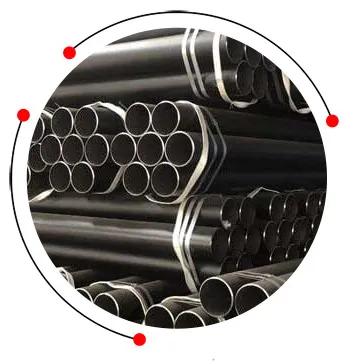

A335 GR P5 cold drawn pipe

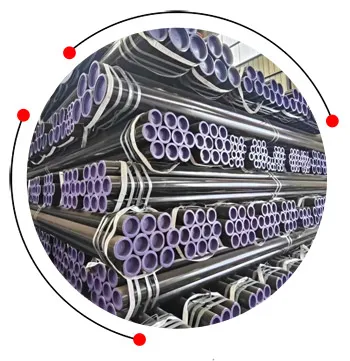

DIN 1.7362 hot finished seamless pipes

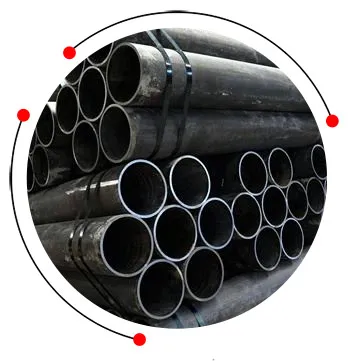

ASTM A335 GR P5 ERW pipe
A335 Gr P5 seamless pipe sizes
A335 Gr P5 seamless pipe sizes
| Nominal | Size | Outer diameter milimeter | Sch 60 | Sch STD | Sch 40 | Sch 20 | Sch 30 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| milimeter | Inch | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | Wall | Wt. | |
| 350 mm | 14″ | 355.6 | 15.1 | 126.4 | 9.53 | 81.3 | 11.13 | 94.3 | 7.92 | 68.1 | 9.53 | 81.3 |
| 400 mm | 16″ | 406.4 | 16.7 | 160 | 9.53 | 93.3 | 12.7 | 123 | 7.92 | 77.9 | 9.5 | 93.3 |
| 3 mm | 1/8″ | 10.3 | 1.73 | 0.37 | 1.73 | 0.357 | ||||||
| 6 mm | ¼” | 13.7 | 2.24 | 0.63 | 2.24 | 0.625 | ||||||
| 10 mm | 3/8″ | 17.1 | 2.31 | 0.84 | 2.31 | 0.84 | ||||||
| 15 mm | ½” | 21.3 | 2.77 | 1.26 | 2.77 | 1.26 | ||||||
| 20 mm | ¾” | 26.7 | 2.87 | 1.69 | 2.87 | 1.68 | ||||||
| 25 mm | 1″ | 33.4 | 3.38 | 2.5 | 3.38 | 2.5 | ||||||
| 32 mm | 11/4″ | 42.2 | 3.56 | 3.39 | 3.56 | 3.38 | ||||||
| 40 mm | 11/2″ | 48.3 | 3.68 | 4.05 | 3.68 | 4.05 | ||||||
| 90 mm | 31/2″ | 1.6 | 5.74 | 13.57 | 5.74 | 13.57 | ||||||
| 100 mm | 4″ | 114.3 | 6.02 | 16.07 | 6.02 | 16.07 | ||||||
| 125 mm | 5″ | 141.3 | 6.6 | 21.77 | 6.55 | 21.77 | ||||||
| 150 mm | 6″ | 168.3 | 7.11 | 28.26 | 7.11 | 28.26 | ||||||
| 200 mm | 8″ | 219.1 | 10.3 | 53.1 | 8.2 | 42.5 | 8.2 | 42.5 | 6.35 | 33.3 | 7 | 36.8 |
| 250 mm | 10″ | 273 | 12.7 | 81.5 | 9.27 | 60.3 | 9.27 | 60.3 | 6.35 | 41.7 | 7.8 | 51.3 |
| 300 mm | 12″ | 323.9 | 14.3 | 109 | 9.53 | 73.8 | 10.3 | 79.7 | 6.35 | 49.7 | 8.4 | 65.2 |
| 50 mm | 2″ | 60.3 | 3.9 | 5.44 | 3.9 | 5.44 | ||||||
| 65 mm | 21/2 “ | 73 | 5.2 | 8.63 | 5.16 | 8.63 | ||||||
| 80 mm | 3/8 “ | 88.9 | 5.5 | 11.3 | 5.5 | 11.3 | ||||||
| 450 mm | 18 “ | 457.2 | 19 | 206 | 9.53 | 105 | 14.3 | 156 | 7.92 | 87.8 | 11.1 | 122 |
| 500 mm | 20 “ | 508 | 20.6 | 248 | 9.53 | 177.2 | 15.1 | 183 | 9.53 | 117.2 | 12.7 | 155.1 |
| 550 mm | 22 “ | 558.8 | 22.2 | 294 | 9.53 | 129 | 9.53 | 129 | 12.7 | 171 | ||
| 600 mm | 24 “ | 609.6 | 24.5 | 355 | 9.53 | 141 | 17.4 | 255 | 9.53 | 141 | 14.3 | 210 |
SA335 P5 welded pipe price list
SA335 P5 welded pipe price list
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| ASTM A335 P5 Pipe, Thickness: >5 mm | $ 3.50 | ₹ 300 |
| ASTM A335 P5 Alloy Steel Pipe, 0.5 inch | $ 1.22 | ₹ 105 |
| ASTM A335 P5 Seamless Pipe,Thickness: 40, Size: 3 inch, | $ 4.08 | ₹ 350 |
| ASTM A335 P5 ALLOY STEEL PIPE, Outer Diameter: 5 - 100mm | $ 1.40 | ₹ 120 |
Welding process of SA 335 P5 pipe material
- TIG Welding
- MIG Welding
- Stick Welding
- Flux-Cored Arc Welding
- Submerged Arc Welding
P5 pipe chemical composition
P5 pipe chemical composition
| C, % | Mn, % | Si, % | Cr, % | P, % | S, % | Mo, % |
| 0.015 max | 0.30-0.60 | 0.50 max | 4.00-6.00 | 0.025 max | 0.025 max | 0.45-0.65 |
A335 Gr P5 cold drawn pipe mechanical properties
A335 Gr P5 cold drawn pipe mechanical properties
| Yield Strength | Tensile Strength | Elongation |
|---|---|---|
| 205 MPa-min | 415 MPa-min | 30 % min |
A335 P5 equivalent material
A335 P5 equivalent material
| ASTM | ASME | UNS | ABS | BS | DIN | JIS G 3458 | NK | ISO | LRS |
|---|---|---|---|---|---|---|---|---|---|
| ASTM A335 P5 pipes | ASME SA335 P5 pipes | K41545 | ABS 14 | 3604 P1 625 | – | STPA 25 | – | 2604 III TS37 | – |
Application of ASTM A335 P5 pipe
- Pulp & Paper
- Chemical
- Nuclear Power Plant
- Petrochemical
- Research & Development
- Oil and Gas
WT tolerance of P5 pipe
WT tolerance of P5 pipe
| Nominal WT (mm) | Max WT Allowed (mm) | Tolerance | Min WT Allowed (mm) |
|---|---|---|---|
| 10.0 | 10.0 | +0 / -12.5% | 8.75 |
| 6.0 | 6.0 | +0 / -12.5% | 5.25 |
| 8.0 | 8.0 | +0 / -12.5% | 7.0 |
| 12.0 | 12.0 | +0 / -12.5% | 10.5 |
| 15.0 | 15.0 | +0 / -12.5% | 13.13 |
ASTM A335 Gr P5 erw pipe heat treatment
ASTM A335 Gr P5 erw pipe heat treatment
| Grade | P5 (b,c) | |
|---|---|---|
| Heat Treatment Type | Normalize and Temper | Subcritical Anneal (P5c only) |
| Subcritical Annealing or Tempering Range deg F [deg C] | 1250 [675] | 1325 – 1375 [715 – 745] |
DIN 1.7362 hot finished seamless pipes dimension
DIN 1.7362 hot finished seamless pipes dimension
| NPS (in) | OD (mm) | WT (mm) – SCH 80 | WT (mm) – SCH 40 |
|---|---|---|---|
| 4" | 114.3 | 8.56 | 6.02 |
| 6" | 168.3 | 10.97 | 7.11 |
| 8" | 219.1 | 12.7 | 8.18 |
| 10" | 273.0 | 15.09 | 9.27 |
| 1" | 33.4 | 4.55 | 3.38 |
| 1 ½" | 48.3 | 5.08 | 3.68 |
| 2" | 60.3 | 5.54 | 3.91 |
| 3" | 88.9 | 7.62 | 5.49 |
| 12" | 323.9 | 17.48 | 9.53 |
| 14" | 355.6 | 17.12 | 9.53 |
| 16" | 406.4 | 18.26 | 9.53 |
X12crmo5 chrome moly pipe coatings
- Blacking painting
- 3LPE coating
- Galvanized coating
- FBE coating
- Varnished coating
Weight chart of P5 alloy steel pipes
Weight chart of P5 alloy steel pipes
| NPS | 1/2 | 3/4 | 2 1/2 | 3 | 1 | 1 1/4 | 1 1/2 | 2 | 5 | 6 | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | .84 | 1.05 | 2.875 | 3.5 | 1.315 | 1.66 | 1.9 | 2.375 | 5.563 | 6.625 | |||||||||||||||||||||||||||||
| WT | .109 | .188 | .113 | .219 | .12 | .216 | .276 | .12 | .216 | .25 | .281 | .3 | .438 | .133 | .25 | .14 | .25 | .145 | .281 | .109 | .218 | .281 | .674 | .188 | .219 | .258 | .281 | .312 | .344 | .375 | .5 | .625 | .75 | .109 | .134 | .188 | .219 | .28 | .344 |
| ID | .622 | .464 | .824 | .612 | 2.635 | 2.443 | 2.323 | 3.26 | 3.068 | 3 | 2.938 | 2.9 | 2.624 | 1.049 | .815 | 1.38 | 1.16 | 1.61 | 1.338 | 2.157 | 1.939 | 1.813 | 3.152 | 5.187 | 5.125 | 5.047 | 5.001 | 4.939 | 4.875 | 4.813 | 4.563 | 4.313 | 4.063 | 6.407 | 6.357 | 6.249 | 6.187 | 6.065 | 5.937 |
| Weight per Foot | .85 | 1.31 | 1.13 | 1.95 | 3.53 | 6.14 | 7.67 | 4.34 | 7.58 | 8.69 | 9.67 | 1 .26 | 14.34 | 1.68 | 2.85 | 2.27 | 3.77 | 2.72 | 4.86 | 2.64 | 5.03 | 6.29 | 27.57 | 1 .8 | 12.51 | 14.63 | 15.87 | 17.51 | 19.19 | 2 .8 | 27.06 | 32.99 | 38.59 | 7.59 | 9.3 | 12.94 | 15 | 18.99 | 23.1 |
SA 335 Gr P5 seamless pipe characteristic
- Attractive appearance
- Low-maintenance (long lasting)
- Temperature resistant
- Corrosion resistant
- Very durable
- High tensile strength
- Environmentally friendly (recyclable)
- Easy formability and fabrication
SA335 Gr P5 pipe thickness
SA335 Gr P5 pipe thickness
| NPS (in) | OD (mm) | WT – SCH 80 (mm) | WT – SCH 40 (mm) | WT – SCH 160 (mm) | WT – XXS (mm) |
|---|---|---|---|---|---|
| 3" | 88.9 | 7.62 | 5.49 | 11.13 | 15.24 |
| 4" | 114.3 | 8.56 | 6.02 | 13.49 | 17.12 |
| 6" | 168.3 | 10.97 | 7.11 | 18.26 | 21.95 |
| 8" | 219.1 | 12.7 | 8.18 | 23.01 | 28.58 |
| 1" | 33.4 | 4.55 | 3.38 | 6.35 | 9.09 |
| 1½" | 48.3 | 5.08 | 3.68 | 7.14 | 10.15 |
| 2" | 60.3 | 5.54 | 3.91 | 8.74 | 11.07 |
| 10" | 273.0 | 15.09 | 9.27 | 28.58 | 34.29 |
| 12" | 323.9 | 17.48 | 9.53 | 33.32 | 38.10 |
ASTM A335 P5 boiler pipes condition
ASTM A335 P5 boiler pipes condition
ASTM A335 alloy steel P5 pipe od tolerance
ASTM A335 alloy steel P5 pipe od tolerance
| P5 | NPS [DN] | Over 1 1/2 to 4 | Over 4 to 8 | 1/8 to 1 1/2 / | Over 8 to 12 |
|---|---|---|---|---|---|
| Under | mm | 0.79 | 0.79 | 0.4 | 0.79 |
| in. | 1/32 | 1/32 | 1/64 | 1/32 | |
| Over | mm | 0.79 | 1.59 | 0.4 | 2.38 |
| in. | 1/32 | 1/16 | 1/64 | 3/32 |
ASTM A335 P5 pipe schedule chart
ASTM A335 P5 pipe schedule chart
| NPS (in) | OD (mm) | WT (mm) – SCH 80 | WT (mm) – SCH 40 | WT (mm) – SCH 160 | WT (mm) – XXS |
|---|---|---|---|---|---|
| 3" | 88.9 | 7.62 | 5.49 | 11.13 | 15.24 |
| 4" | 114.3 | 8.56 | 6.02 | 13.49 | 17.12 |
| 6" | 168.3 | 10.97 | 7.11 | 18.26 | 21.95 |
| 8" | 219.1 | 12.70 | 8.18 | 23.01 | 28.58 |
| 10" | 273.0 | 15.09 | 9.27 | 28.58 | 34.29 |
| 12" | 323.9 | 17.48 | 9.53 | 33.32 | 38.10 |
| 1/2" | 21.3 | 3.73 | 2.77 | 4.78 | 4.78 |
| 3/4" | 26.7 | 3.91 | 2.87 | 5.56 | 5.56 |
| 1" | 33.4 | 4.55 | 3.38 | 6.35 | 9.09 |
| 1 1/4" | 42.2 | 4.85 | 3.56 | 6.35 | 9.70 |
| 1 1/2" | 48.3 | 5.08 | 3.68 | 7.14 | 10.15 |
| 2" | 60.3 | 5.54 | 3.91 | 8.74 | 11.07 |
| 14" | 355.6 | 19.05 | 9.53 | 35.71 | 40.49 |
| 16" | 406.4 | 21.44 | 9.53 | 40.49 | 46.02 |
| 18" | 457.0 | 23.83 | 9.53 | 46.02 | 50.80 |
| 20" | 508.0 | 26.19 | 9.53 | 50.80 | 55.62 |
| 24" | 610.0 | 28.58 | 9.53 | 60.33 | 63.50 |
Physical properties of SA335 P5 pipe
Physical properties of SA335 P5 pipe
| Property | Value / Range |
|---|---|
| Thermal Conductivity | ~26 W/m·K at 100°C |
| Specific Heat Capacity | ~460 J/kg·K |
| Density | ~7.8 g/cm³ (7800 kg/m³) |
| Material Type | Ferritic alloy steel (5% Cr, 0.5% Mo) |
| Poisson’s Ratio | ~0.30 |
| Coefficient of Thermal Expansion | ~11.0 x 10⁻⁶ /°C (20–300°C) |
| Standard | ASTM A335 / ASME SA335 |
| Grade | P5 |
| Melting Point | ~1425–1510°C |
| Electrical Resistivity | ~0.42 μΩ·m at 20°C |
| Modulus of Elasticity | ~200 GPa |
| Hardness (Typical) | ~163–207 HB (Brinell) |
Difference between P5 and P9 material
Difference between P5 and P9 material
| Property | P5 | P9 |
|---|---|---|
| Chemical Composition | Fe–Cr(4–6)–Mo(0.45–0.65) | Fe–Cr(8–10)–Mo(0.90–1.10) |
| Tensile Strength (min) | 415 MPa | 585 MPa |
| Hardness (typical) | ~160–200 HB | ~200–240 HB |
| Yield Strength (min) | 205 MPa | 275 MPa |
| Applications | superheaters, Boilers, steam lines | steam reformers, Reheaters, petrochemical heaters |
