SS water ripple sheet
Specifications of SS water ripple sheet
Specifications of SS water ripple sheet
| SPECIFICATION | DETAILS |
|---|---|
| Technique | Cold Rolled |
| Thickness | 0.3mm~3.0mm |
| Color | Gold/ Bronze/ Rose Gold/ Black |
| Thickness Tolerance | +/-0.09mm |
| Shape | Flat |
| Surface Treatment | Polished |
| Coating Layer Thickness | 0-5 Micron |
| Film Thickness | 50 /70 /80 /10 Micron |
| HS Code | 72199000 |
| Pattern | Pearl millet, refined corrugated board, pearl panels, checkered small, checkered antique |
| Grade | 202, 304 and 316 |
| Certification | ISO, AISI, ASTM |

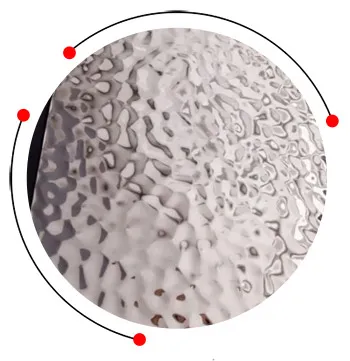

Water ripple stainless steel sheet

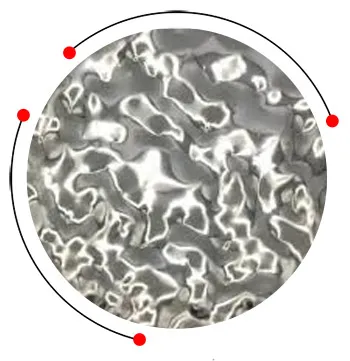

SS water ripple sheet

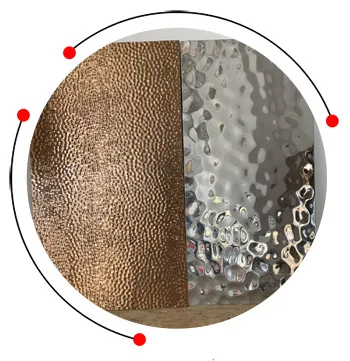

Stainless steel water ripple sheet

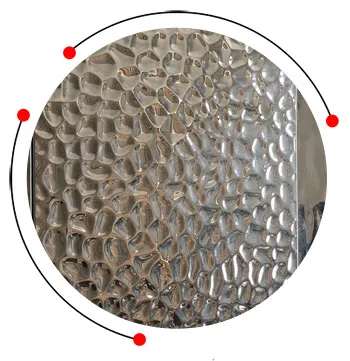

SS water ripple metal sheet

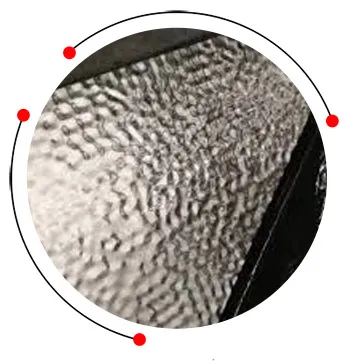

Water ripple steel sheet

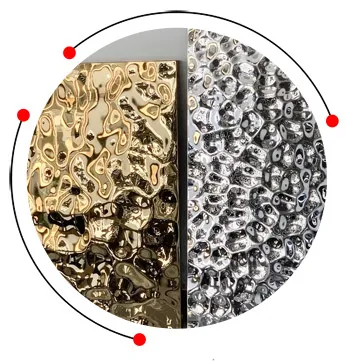

Ripple stainless steel sheet
SS water ripple metal sheet sizes
SS water ripple metal sheet sizes
| Thickness (mm) | Standard Length (mm) | Standard Width (mm) | Surface Finish |
|---|---|---|---|
| 0.6 – 1.5 | 2000 / 2438 / 3000 | 1000 / 1219 / 1500 | Mirror / PVD / Etched Ripple |
Water ripple steel sheet weight chart
Water ripple steel sheet weight chart
| Thickness (mm) | Weight per m² (kg) |
|---|---|
| 1.0 | 8.0 |
| 1.2 | 9.6 |
| 0.6 | 4.8 |
| 0.8 | 6.4 |
| 1.5 | 12.0 |

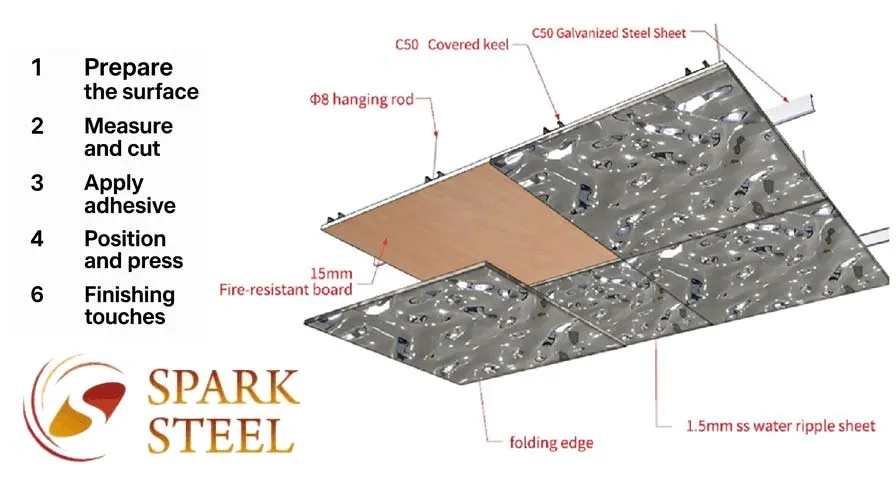

Water ripple stainless steel sheet installation
Application of ripple metal sheet
- Transport
- Furniture Design
- Architecture
- Hospitality
- Interior Design
Ripple stainless steel sheet chemical composition
Ripple stainless steel sheet chemical composition
| Grade | SUS304 | SUS316L | SUS201 | SUS430 |
|---|---|---|---|---|
| Cr(%) | 18-20 | 16-18 | 16-18 | 16-18 |
| Ni(%) | 8-10 | 10-14 | 0.5-1.5 | ≤0.6 |
| Elong(%) | ≥40 | 30 | 50-60 | >22 |
| Hardness | ≤200HV | ≤200HV | 100HRB, 230HV | <200HV |
| C% | ≤0.08 | ≤0.07 | ≤0.15 | ≤0.12 |
Water ripple sheet metal mechanical properties
Water ripple sheet metal mechanical properties
| Property | 316 Stainless Steel | 304 Stainless Steel |
|---|---|---|
| Yield Strength (MPa) | 215 | 205 |
| Hardness (HRB) | ≤ 95 | ≤ 95 |
| Tensile Strength (MPa) | 520 – 770 | 515 – 750 |
| Elongation (%) | ≥ 40 | ≥ 40 |
| Modulus of Elasticity | 193 GPa | 193 GPa |
| Melting Point (°C) | 1370–1400 | 1400–1450 |
Water wave stainless steel panel features
- Abrasion Resistance
- High Strength
- Corrosion Resistance
- Easy to Clean
- Decorative
Water ripple SS sheet equivalent grades
Water ripple SS sheet equivalent grades
| Standard | 304 Equivalent | 316 Equivalent |
|---|---|---|
| EN / DIN | 1.4301 | 1.4401 / 1.4404 |
| JIS | SUS 304 | SUS 316 |
| AISI / ASTM | 304 | 316 |
| GB (China) | 06Cr19Ni10 | 06Cr17Ni12Mo2 |
