Titanium finish SS sheet
Specification of titanium coated stainless steel sheet
Specification of titanium coated stainless steel sheet
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0.3mm - 3.0mm |
| Grade | 304, 430, 316L, 316, 201 |
| Fabrication | Bending, Shearing, Grooving |
| Sizes | 1219*2438mm, 1000*2000mm, 1500*3000mm |
| Color | Gold, Black, Rose gold, Bronze |
| Shape | Rectangular |

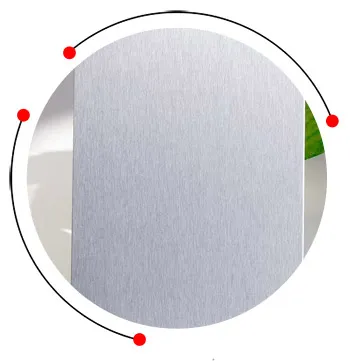

Titanium coated stainless steel sheet

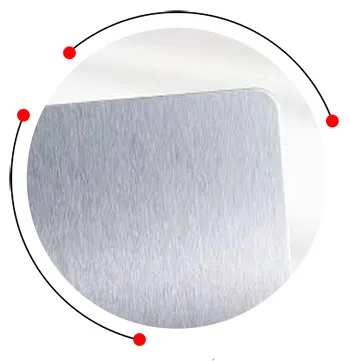

Titanium coated ss sheet

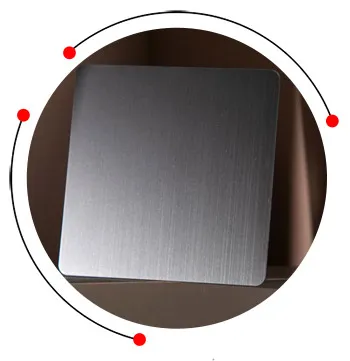

Titanium stainless steel sheet

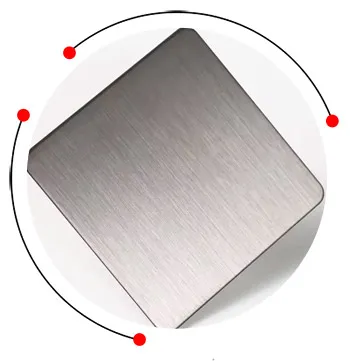

SS titanium coated sheet

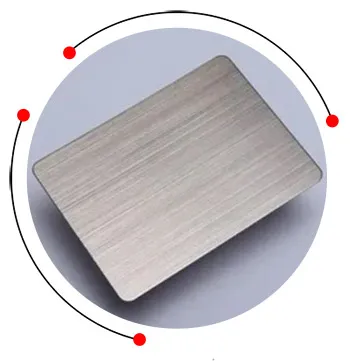

Titanium finish stainless steel sheet

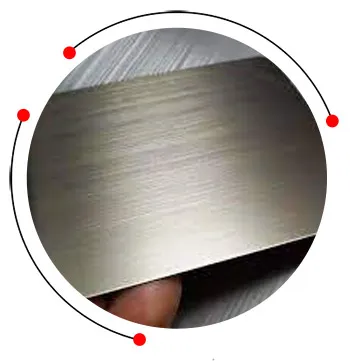

Decorative titanium coated SS sheet
Titanium stainless steel sheet application
- Hotels, malls, signage
- Kitchen panels, trims
- Elevators, walls, facades
SS titanium coated sheet sizes
SS titanium coated sheet sizes
| Metric Size (mm) | Thickness Range (mm) | Imperial Size (inch) |
|---|---|---|
| 1219 × 3048 | 0.8 – 2.0 | 48" × 120" |
| 1000 × 2000 | 0.3 – 3.0 | 39.4" × 78.7" |
| 1219 × 2438 | 0.5 – 3.0 | 48" × 96" |
| Custom Sizes | On Request | — |
Advantages of titanium finish stainless steel sheet
- Durable and easy to clean
- Premium look (gold, black)
- Scratch & corrosion resistant
Weight chart of decorative titanium coated SS sheet
Weight chart of decorative titanium coated SS sheet
| Thickness (mm) | Weight for mm sheet (kg) | Weight per m² (kg) |
|---|---|---|
| 1.0 | 23.76 | 8.0 |
| 1.2 | 28.51 | 9.6 |
| 1.5 | 35.64 | 12.0 |
| 0.5 | 11.88 | 4.0 |
| 0.8 | 19.01 | 6.4 |
| 2.0 | 47.52 | 16.0 |
| 3.0 | 71.28 | 24.0 |
Titanium colored stainless steel sheets finishes
Titanium colored stainless steel sheets finishes
| Mirror | Hairline | Brushed |
| Hammered | Antique | Vibration |
| Bead Blasted | Etched | Embossed |
Disadvantages of titanium gold color coated stainless steel sheet
- Can't bend after coating
- Higher cost
- Only surface-level strength
Titanium coated stainless steel sheet chemical composition
Titanium coated stainless steel sheet chemical composition
| Grade | Ni (%) | C (%) | Cr (%) |
|---|---|---|---|
| 430 | — | ≤ 0.12 | 16–18 |
| 201 | 3.5–5.5 | ≤ 0.15 | 16–18 |
| 202 | 4–6 | ≤ 0.15 | 17–19 |
| 409 | — | ≤ 0.08 | 10.5–11.75 |
| 304 | 8–10.5 | ≤ 0.08 | 18–20 |
| 304L | 8–12 | ≤ 0.03 | 18–20 |
| 316 | 10–14 | ≤ 0.08 | 16–18 |
| 316L | 10–14 | ≤ 0.03 | 16–18 |
| 441 | — | ≤ 0.03 | 17.5–18.5 |
| 444 | 1.5–2.5 | ≤ 0.025 | 17.5–19.5 |
Titanium coated SS sheet mechanical properties
Titanium coated SS sheet mechanical properties
| Grade | 0.2% Proof Stress M/mm2 Min | UTS M/mm2 Min | Hardness RB Max | % Elongation on 50 mm GL Min |
| 316 | 205 | 515 | 95 | 40 |
| 316L | 170 | 485 | 95 | 40 |
| 321 | 205 | 515 | 95 | 40 |
| 409 | 205 | 380 | 88 | 20 |
| 301 | 205 | 515 | 95 | 40 |
| 304 | 205 | 515 | 92 | 40 |
| 304L | 170 | 485 | 92 | 40 |
| 305 | 175 | 480 | 90 | 40 |
| 310S | 205 | 515 | 95 | 40 |
| 409M | 275 | 450 | 90 | 20 |
| 410 | 205 | 415 | 89 | 22 |
| 420 | - | 690 | 96 | 15 |
| 430 | 205 | 450 | 89 | 22 |
Titanium stainless steel sheet equivalent grades
Titanium stainless steel sheet equivalent grades
| Country | SS 304 | SS 201 | SS 316 |
|---|---|---|---|
| EU | EN 1.4301 | EN 1.4372 | EN 1.4401 |
| Japan | SUS 304 | SUS 201 | SUS 316 |
| USA | AISI 304 | AISI 201 | AISI 316 |
| China | 06Cr19Ni10 | 1Cr17Mn6Ni5N | 06Cr17Ni12Mo2 |
| India | X5CrNi18-10 | CrMnNi SS | X2CrNiMo17-12-2 |
