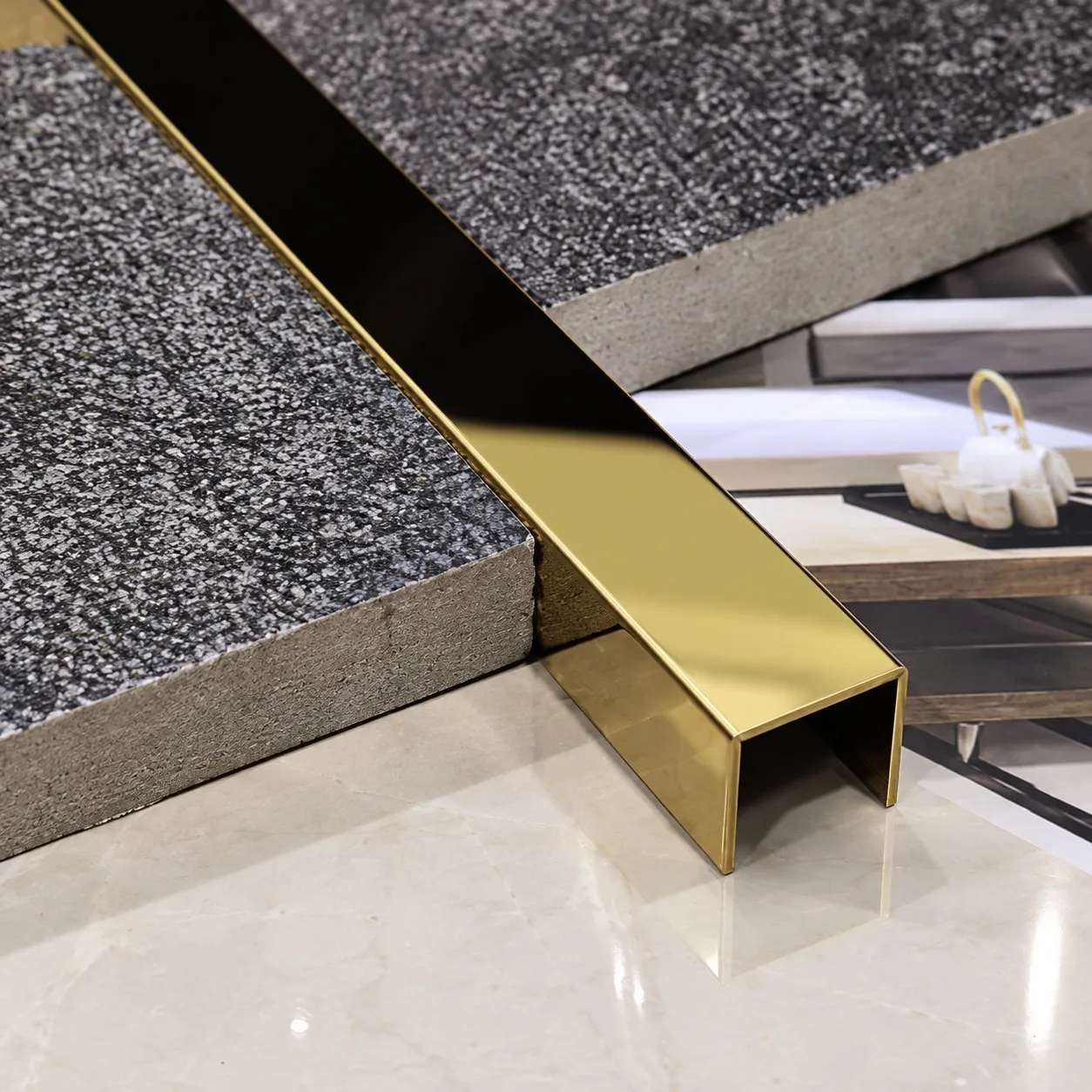

Leading Titanium coating ss profiles
Specification of titanium coated stainless steel profiles
Specification of titanium coated stainless steel profiles
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0.8-1.20 mm |
| Color | Gold, Black, Rose Gold, Silver |
| Finish | Matt, Mirror |
| Packaging type | Corrugated box, Wooden box |
| Material | stainless steel 201 / 304 / 316 / 430 |
| Profile types | U profiles, T profiles, L profiles |

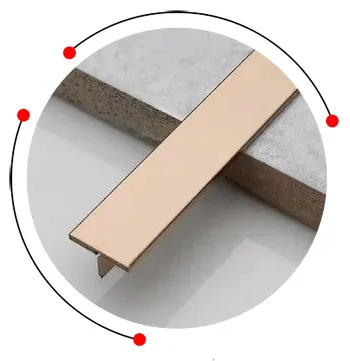

Titanium coated stainless steel profiles

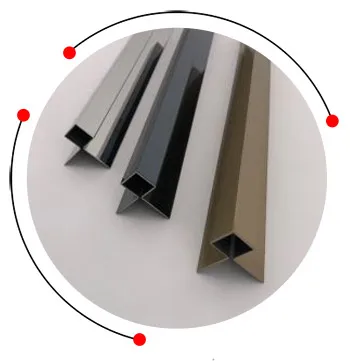

Titanium coated ss profiles

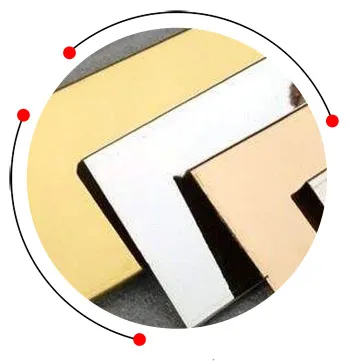

Stainless steel 304 titanium coated profile

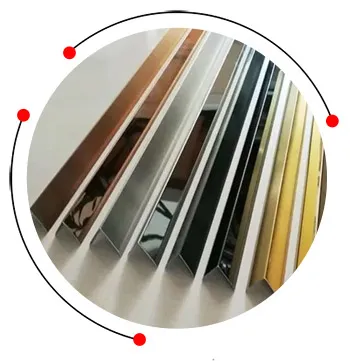

Stainless steel titanium coated profiles

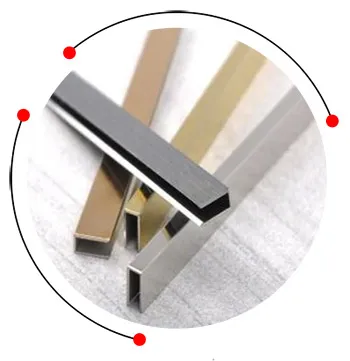

Stainless steel TI coated profile

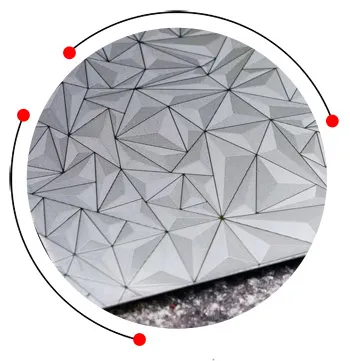

Titanium coated embossed stainless steel panels
Size chart of stainless steel 304 titanium coated profile
Size chart of stainless steel 304 titanium coated profile
| Profile Type | Thickness (mm) | Height (mm) | Length (ft) |
|---|---|---|---|
| Flat Profile | 0.6 – 1.0 | 10 / 15 / 20 | 8 / 10 |
| U Profile | 0.6 – 1.0 | 10 / 15 / 25 | 8 / 10 |
| T Profile | 0.6 – 1.0 | 10 / 12 / 15 | 8 / 10 |
| L Angle | 0.6 – 1.0 | 10 x 10 to 30 x 30 | 8 / 10 |
Stainless steel titanium coated profiles characteristics
- Long Service Life
- Non-Fading Color
- PVD Coated Surface
- Mirror / Hairline Finish
- Stainless Steel Base (304/316)
Chemical composition of stainless steel ti coated profile
Chemical composition of stainless steel ti coated profile
| Element | Grade 316 | Grade 304 |
|---|---|---|
| Carbon (C) | 0.08 max | 0.08 max |
| Chromium (Cr) | 16–18 | 18–20 |
| Nickel (Ni) | 10–14 | 8–10.5 |
| Molybdenum (Mo) | 2–3 | – |
| Iron (Fe) | Balance | Balance |
Mechanical properties of titanium coated embossed stainless steel panels
Mechanical properties of titanium coated embossed stainless steel panels
| Property | Grade 316 | Grade 304 |
|---|---|---|
| Yield Strength (MPa) | 205 | 215 |
| Tensile Strength (MPa) | 515 | 505 |
| Elongation (%) | 40 | 40 |
| Hardness (HRB) | 95 | 95 |
Features of titanium coating stainless steel profiles
- Scratch Resistant
- Low Maintenance
- Decorative Finish
- UV Stable
- Corrosion Resistant
Equivalent grades of stainless steel ti coated profiles
Equivalent grades of stainless steel ti coated profiles
| Grade | DIN/EN | UNS | JIS |
|---|---|---|---|
| 304 | 1.4301 | S30400 | SUS 304 |
| 316 | 1.4401 | S31600 | SUS 316 |
304 titanium-coated stainless steel profile application
304 titanium-coated stainless steel profile application
316 stainless steel titanium finish profile color option
- Silver
- Champagne
- Rose Gold
- Black
- Gold
FAQ
Is titanium coated stainless steel profiles durable?
Yes, it is corrosion-proof, scratch-resistant, and maintains color long-term.
Which grades are used for titanium coated SS profiles?
SS 304 and 316 are used for coating.
