ISO Certified Manufacturer
ISO-certified SS tile trim
Specification of stainless steel tile edge trim
Specification of stainless steel tile edge trim
| SPECIFICATION | DETAILS |
|---|---|
| Grade | SS 202, SS 304, SS 316 |
| Application | Tiles, Construction |
| Length | 440 mm, 2500 mm, 2700 mm, 3000 mm |
| Thickness | 0.6 mm to 1.2 mm |
| Surface Finish | Matte, Mirror and Brushed |
| Color | Silver, Gold , Black , Copper and Bronze |

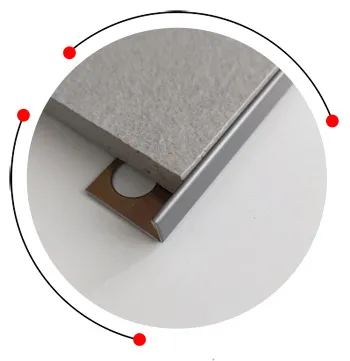

Stainless steel tile edge trim

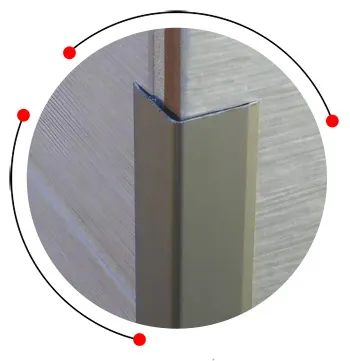

SS tile edge trim

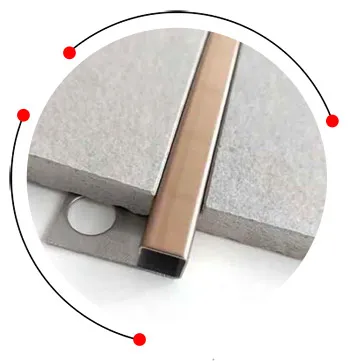

stainless steel tile edging strip

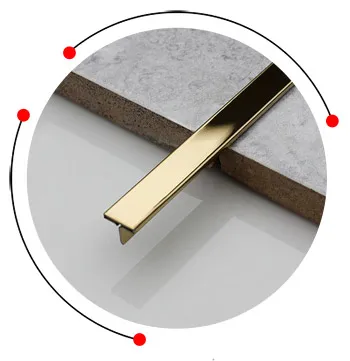

SS tile trim

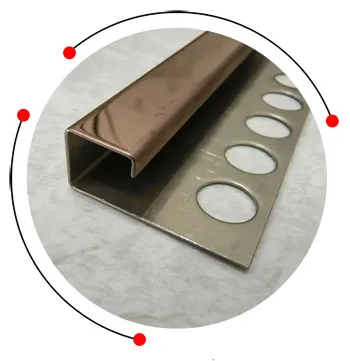

brushed stainless steel tile edge trim

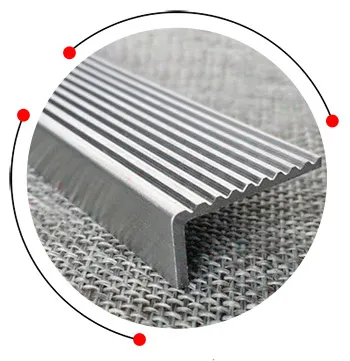

SS edge trim
Stainless steel tile edging strip finishes
- Mirror Polish
- Brushed (Hairline)
- PVD Coated (Gold, Rose Gold, Black, Bronze)
- Matte
SS tile trim size chart
SS tile trim size chart
| Type | Height (mm) | Length (ft) | Thickness (mm) | Edge Shape |
|---|---|---|---|---|
| L Angle | 10x10 to 30x30 | 8 / 10 | 0.6–1.5 | Right-Angle |
| Flat | 6, 8, 10, 12 | 8 / 10 | 0.6–1.2 | Straight / Bevel |
| Quadrant (Round) | 8, 10, 12 | 8 / 10 | 0.6–1.0 | Rounded |
| T Profile | 10, 12, 15 | 8 / 10 | 0.6–1.2 | T-Shaped |
| U Channel | 10, 15, 20 | 8 / 10 | 0.6–1.2 | U-Shaped |
Application of brushed stainless steel tile edge trim
- Kitchen backsplash transitions
- Step edges in stairs
- Commercial wall-to-floor edges
- Tile edge protection
- Bathroom and shower corners
Chemical composition of SS edge trim
Chemical composition of SS edge trim
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 8–10.5 |
| Manganese (Mn) | 2 max |
| Carbon (C) | 0.08 max |
| Chromium (Cr) | 18–20 |
| Silicon (Si) | 1 max |
| Iron (Fe) | Balance |
Stainless steel square edge tile trim mechanical properties
Stainless steel square edge tile trim mechanical properties
| Property | Value |
|---|---|
| Elongation | 40% |
| Yield Strength | 215 MPa |
| Tensile Strength | 505 MPa |
| Hardness | HRB 90–95 |
Stainless steel brushed straight edge tile trim advantages
- Scratch and UV resistant
- Hygienic and easy to clean
- Ideal for wet or industrial environments
- Modern aesthetic finish
- Corrosion and rust resistant
Equivalent grades of stainless steel straight edge tile trim
Equivalent grades of stainless steel straight edge tile trim
| Grade | UNS | JIS | EN/DIN |
|---|---|---|---|
| 304 | S30400 | SUS 304 | 1.4301 |
| 316 | S31600 | SUS 316 | 1.4401 |
Stainless steel round edge tile trim installation method
- Mechanical fixing with screws
- Adhesive-backed installation
- Tile glue integration during tile setting
FAQ
What grade of SS is best for tile edge trims?
- 304: Best for indoor use
- 304L / 316L: Low carbon, better for welding.
- 316: Ideal for coastal or wet areas, high corrosion resistance.
- 202: Economical, suitable for dry interiors.
Are SS tile edge trims available in different shapes?
Yes, common shapes include T-profile, L-profile, round profiles and U-profile,.
Can I cut stainless steel tile edge trims at home?
Yes, use a angle grinder, fine-tooth hacksaw, or a metal cutting blade for clean cuts.
What thickness of SS tile edge trim is best?
Usually 0.6 to 1.2 mm
