Top-Ranked SS 304 omega profile
Specification of stainless steel omega profile
Specification of stainless steel omega profile
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0.8, 1.0 & 1.2 MM |
| Length | 2438MM-3050MM |
| Surface Colour | Gold, Black, Rose Gold, Champagne, Bronze |
| Surface coating | Mirror / Hairline |
| Grade | SS 202, SS 304, SS 316 |
| Application | Tiles, Construction |

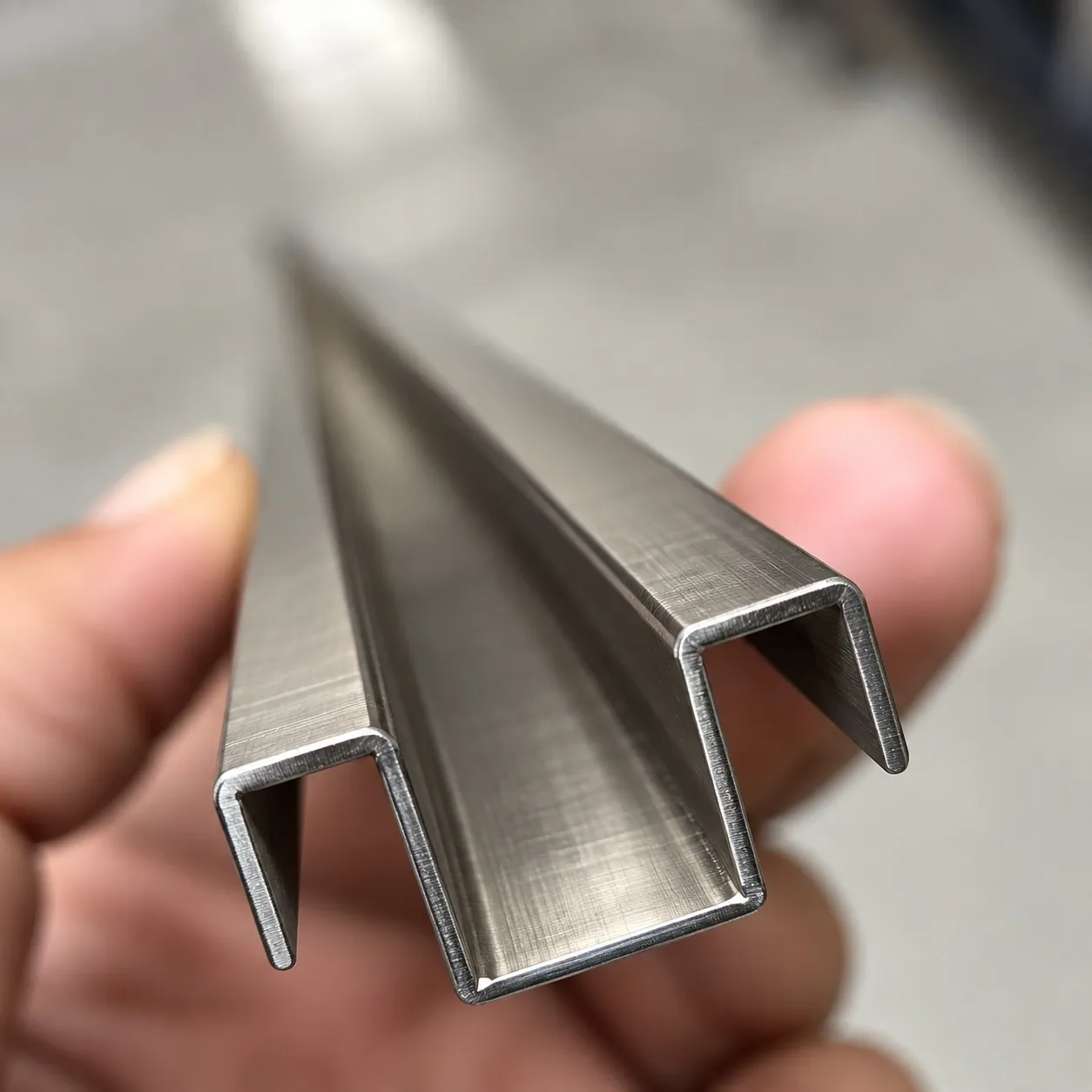

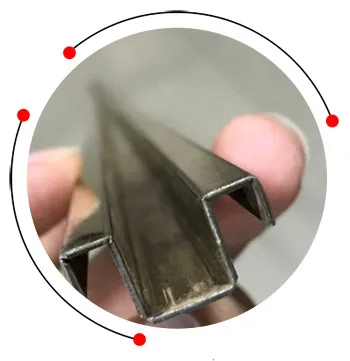

Stainless steel omega profile

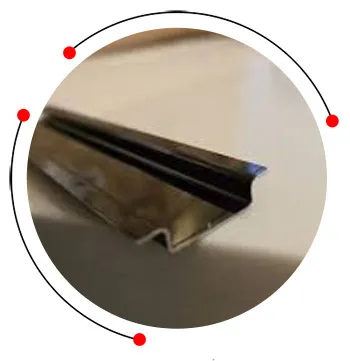

SS omega profile

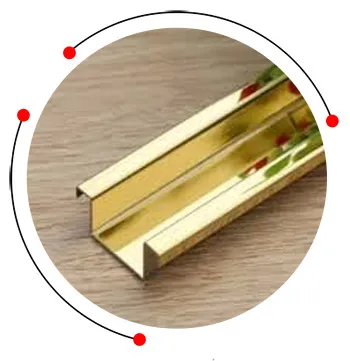

Stainless steel decorative omega profile

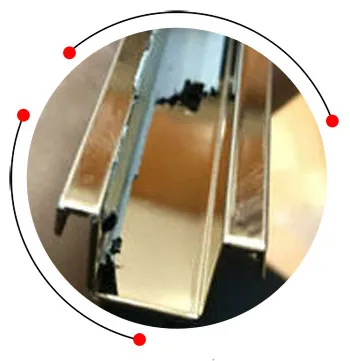

SS 304 omega profile

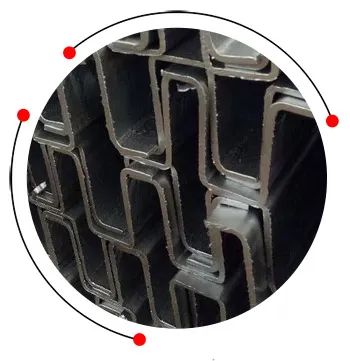

304 stainless steel omega profile

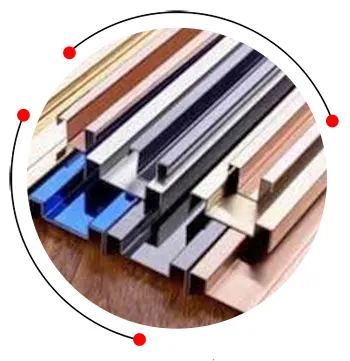

SS 316 omega profile
Stainless steel decorative omega profile application
Stainless steel decorative omega profile application
| Industry | Application |
|---|---|
| Construction | Wall cladding, façade frames |
| Marine | Structural support in corrosive environments |
| Architecture | Window systems, partition panels |
| Clean Rooms | Panel joinery and supports |
| Transport | Bus and rail panel framing |

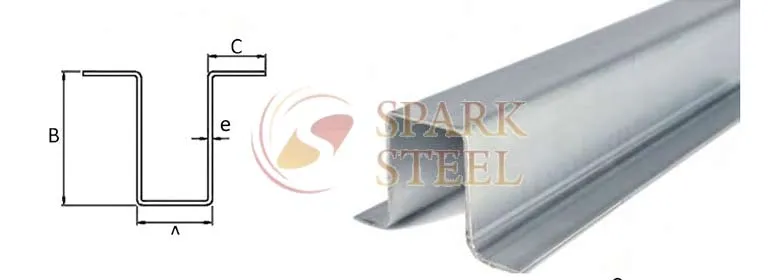

Size chart of SS 304 omega profile
Size chart of SS 304 omega profile
| A (mm) | C (mm) | B (mm) | e (mm) | Finishings |
|---|---|---|---|---|
| 30 | 20 | 40 | 1,5 | Galvanized steel |
| 30 | 20 | 40 | 2 | |
| 30 | 20 | 60 | 2 | |
| 25-80 | 15 | 25/30/40 | 1,5-2,5 | Galvanized, pickled and stainless steel |
| 25-70 | 15 | 25/30/40/50 | 1,5-2,5 | |
| 25-60 | ≤20 | 25/30/40/50 | 1,5-2,5 | |
| 25-50 | ≤25 | 20/30/40/50/60 | 1,5-2,5 |

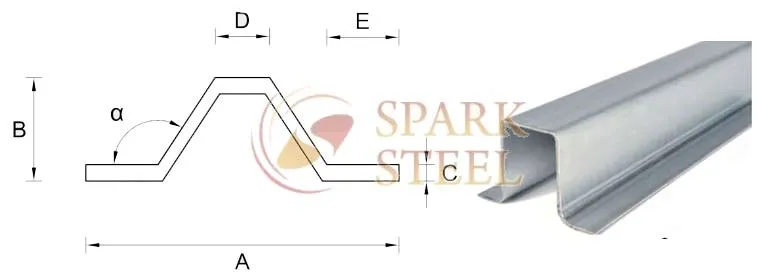

304 stainless steel omega profile dimensions
304 stainless steel omega profile dimensions
| Profile | A mm |
B mm |
Weight (theoretical) g/m |
C mm |
M.I. X - X cm4 |
|---|---|---|---|---|---|
| OMEGA 3 | 115,00 | 35,00 | 857,00 | 3,00 | 6,94 |
| OMEGA 6 | 115,00 | 38,00 | 1.495,00 | 6,00 | 13,02 |
304 stainless steel omega profile dimensions
| Thickness | Weight kg/m | ||
|---|---|---|---|
| mm | OM/30 | OM/40 | OM/50 |
| 1,00 | 1,60 | 1,36 | 1,20 |
| 0,80 | 0,96 | 1,09 | 1,28 |
SS 316 omega profile characteristics
- Corrosion-resistant (especially in SS 316)
- Easy to fabricate and weld
- Lightweight yet structurally strong
- Visually clean and suitable for aesthetic applications
- Non-magnetic (in annealed condition)
- Excellent dimensional accuracy
- Hygienic surface – ideal for clean room and food-grade use
Difference between SS omega profile and other profiles
Difference between SS omega profile and other profiles
| Feature | Omega Profile | L Profile (Angle) | U Profile |
|---|---|---|---|
| Application | Framing, cladding, joints | Bracing, structural joints, corners | Channels, supports,cable trays |
| Load Distribution | Balanced – both sides | One-sided support | Load from one direction |
| Shape | Ω (rounded or symmetrical wings) | L-shape, two sides at 90° | U-shape, open from the top |
| Aesthetic Use | High – used in interiors | Low – mostly structural | Medium – functional use |
SS 304 grade x omega-6 decorative omega profiles chemical composition
SS 304 grade x omega-6 decorative omega profiles chemical composition
| Element | SS 304 (%) | SS 316 (%) |
|---|---|---|
| Molybdenum (Mo) | — | 2.0–3.0 |
| Carbon (C) | ≤ 0.08 | ≤ 0.08 |
| Chromium (Cr) | 18.0–20.0 | 16.0–18.0 |
| Nickel (Ni) | 8.0–10.5 | 10.0–14.0 |
| Manganese (Mn) | ≤ 2.0 | ≤ 2.0 |
Mechanical properties of 316 stainless steel omega profile
Mechanical properties of 316 stainless steel omega profile
| Property | SS 304 | SS 316 |
|---|---|---|
| Elongation (%) | 40 (min) | 40 (min) |
| Tensile Strength (MPa) | 515–750 | 515–750 |
| Yield Strength (MPa) | 205 (min) | 205 (min) |
| Hardness (HRB) | ≤ 95 | ≤ 95 |
Stainless steel designed omega section patti equivalent grades
Stainless steel designed omega section patti equivalent grades
| Standard | SS 304 Equivalent | SS 316 Equivalent |
|---|---|---|
| JIS | SUS304 | SUS316 |
| UNS | S30400 | S31600 |
| EN/DIN | 1.4301 | 1.4401 |
| BS | 304S31 | 316S31 |
FAQ
Difference between SS 304 and SS 316 omega profiles
Difference between SS 304 and SS 316 omega profiles
| Property | SS 316 Omega Profile | SS 304 Omega Profile |
|---|---|---|
| Applications | Coastal structures, high-humidity areas, chemical plants | Interior framing, dry environments, clean rooms |
| Nickel Content | 10–14% | 8–10.5% |
| Molybdenum (Mo) | 2–3% (improves corrosion resistance) | Not present |
| Corrosion Resistance | Excellent | Good |
| Cost | More expensive due to Mo content | More economical |
| Weldability & Formability | Excellent | Excellent |
What are the available surface finishes for SS omega patti profile?
- 2B Finish
- No. 4 (Brushed/Satin) Finish
- No. 8 (Mirror Polish) Finish
- Hairline Finish
- BA (Bright Annealed) Finish
- Bead Blasted Finish
- PVD Coated Finish
