One of the biggest 316 SS grooved inlay profile
Specification chart of stainless steel grooved inlay profile
Specification chart of stainless steel grooved inlay profile
| SPECIFICATION | DETAILS |
|---|---|
| Length | 8/10FT |
| Color | Gold,Black, Rose Gold, Bronze |
| Packaging Type | Wooden |
| Finish | Brushed, Mirror |
| Size | 6mm to 100mm |
| Thickness | 3-10 mm |

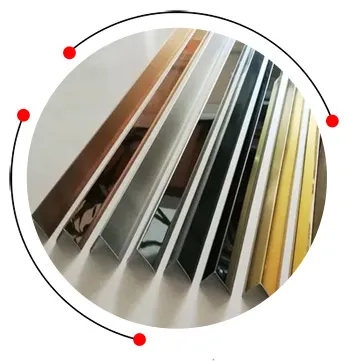

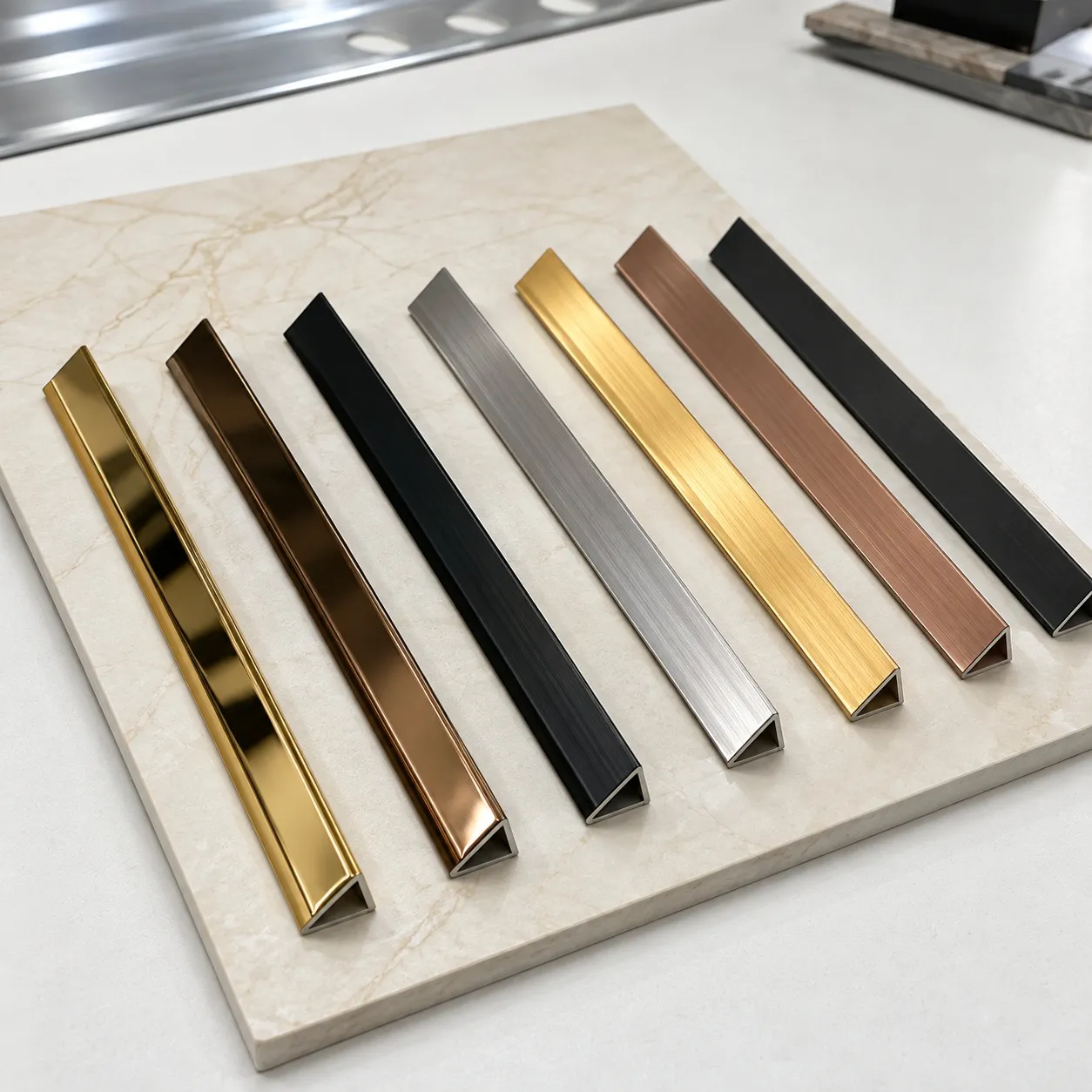

Stainless steel grooved inlay profile

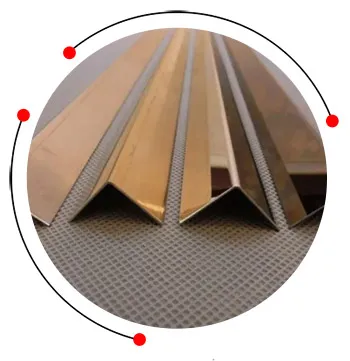

316 SS grooved inlay profile

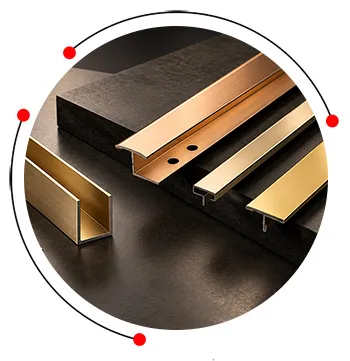

Stainless steel inlay profile

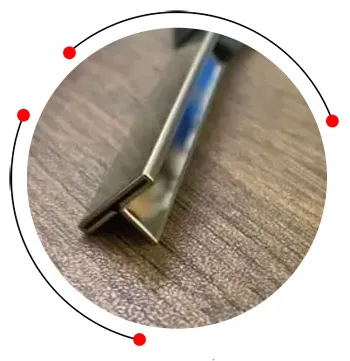

SS grooved inlay profile

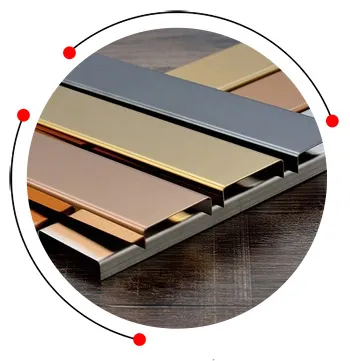

Stainless steel inlay strip
SS grooved inlay profile
Stainless steel inlay profile application
- Lift interiors
- Display counters
- Cabinet and door edging
- Wall and ceiling decoration
- Furniture panel inlays
SS grooved inlay profile manufacturing process
- Step 1: Select SS grade (304 / 316 / 201)
- Step 2: Cut sheets into strips (CNC, laser, or shearing)
- Step 3: Form profiles using roll bending or forming
- Step 4: Finish with mirror brush, polish, or PVD color
- Step 5: Inspect quality – finish, dimensions, and strength
Size chart of stainless steel inlay strip
Size chart of stainless steel inlay strip
| Profile Type | Width (mm) | Thickness (mm) | Height/Depth (mm) | Length (standard) |
|---|---|---|---|---|
| L Profile | 6–25 | 0.5–1.2 | 6–25 | 2440mm / 3048mm |
| T Profile | 6–50 | 0.5–1.5 | 6–25 | |
| U Profile | 6–30 | 0.5–1.2 | 6–15 | |
| Flat Bar Inlay | 6–100 | 0.8–2.0 | — |
Weight chart of SS grooved inlay profile
Weight chart of SS grooved inlay profile
| Profile Type | Weight per meter (kg) | Size (mm) |
|---|---|---|
| U Profile | 0.10 | 10 × 10 × 1.0 |
| T Profile | 0.11 | 12 × 12 × 1.0 |
| L Profile | 0.09 | 10 × 10 × 1.0 |
| Flat Bar | 0.20 | 25 × 1.0 |
Decorative stainless steel inlay profile chemical composition
Decorative stainless steel inlay profile chemical composition
| Element | SS 304 | SS 316L | SS 304L | SS 316 |
|---|---|---|---|---|
| S | 0.030 max | 0.03 max | 0.03 max | 0.030 max |
| Cr | 18 – 20 | 16.00 - 18.00 | 18 – 20 | 16.00 - 18.00 |
| Mo | - | 2.00 - 3.00 | - | 2.00 - 3.00 |
| C | 0.08 max | 0.035 max | 0.035 max | 0.08 max |
| Mn | 2 max | 2.0 max | 2.0 max | 2.0 max |
| Si | 0.75 max | 1.0 max | 1.0 max | 1.0 max |
| P | 0.045 max | 0.045 max | 0.045 max | 0.045 max |
| Ni | 8 – 11 | 10.00 - 14.00 | 8 – 13 | 11.00 - 14.00 |
| Fe | - | 68.89 min | - | 67.845 min |
Stainless steel divider inlay profile mechanical properties
Stainless steel divider inlay profile mechanical properties
| Element | SS 316/316L | SS 304 / 304L |
|---|---|---|
| Tensile Strength | Psi – 75000 , MPa – 515 | Psi – 75000 , MPa – 515 |
| Density | 8.0 g/cm3 | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) | 1400 °C (2550 °F) |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 | Psi – 30000 , MPa – 205 |
| Elongation | 35 % | 35 % |
Equivalent grades of SS 304 inlay profile
Equivalent grades of SS 304 inlay profile
| Standard | SS 316 | SS 304 | SS 304L | SS 316L |
|---|---|---|---|---|
| BS | 316S31 / 316S33 | 304S31 | 3304S11 | 316S11 / 316S13 |
| GOST | - | 08Х18Н10 | 03Х18Н11 | 03Ch17N14M3 / 03Ch17N14M2 |
| WERKSTOFF NR. | 1.4401 / 1.4436 | 1.4301 | 1.4306 / 1.4307 | 1.4404 / 1.4435 |
| UNS | S31600 | S30400 | S30403 | S31603 |
| JIS | SUS 316 | SUS 304 | SUS 304L | SUS 316L |
| AFNOR | Z7CND17‐11‐02 | Z7CN18‐09 | Z3CN18‐10 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | X5CrNi18-10 | X2CrNi18-9 / X2CrNi19-11 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
FAQ
What is the best SS grade for groove inlay profiles?
SS Grade 304 is best for indoor use.
Are stainless steel grooved profile fire resistant?
Yes, stainless steel is safe to use and naturally fire-resistant.
What finishes are available for SS decorative inlay profile?
Mirror, hairline, brushed, etched, or PVD-coated finishes.
What is the standard length of a stainless steel grooved inlay profile?
2440mm or 3048mm lengths
