316 stainless steel decorative U profiles
Specification of stainless steel decorative U profile
Specification of stainless steel decorative U profile
| SPECIFICATION | DETAILS |
|---|---|
| Thickness | 0.3 MM to 3 MM |
| Grade | SS 202, SS 304 & SS 316 |
| Tolerence | -0.01mm |
| Sizes | 6×6 mm, 10×10 mm, 20×20 mm, 8×8 mm, 15×15 mm, 25×25 mm, custom |
| Edge | Slit Edge |
| Length | 1220mm, 2440mm or Customize |

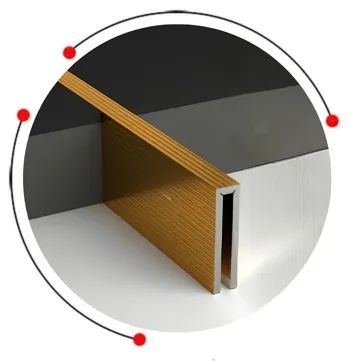

U1

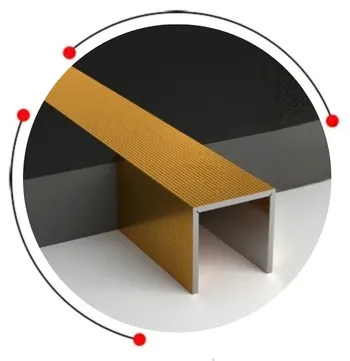

U2

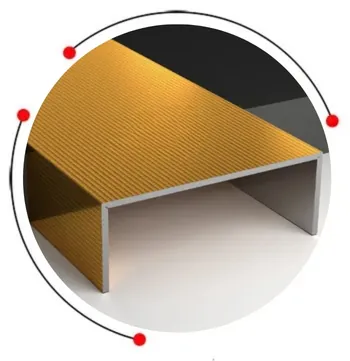

U3

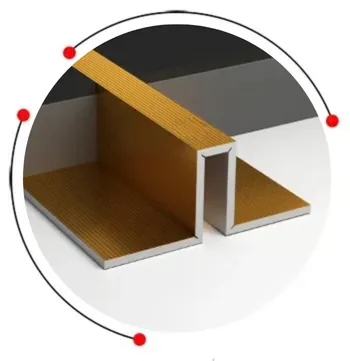

U4

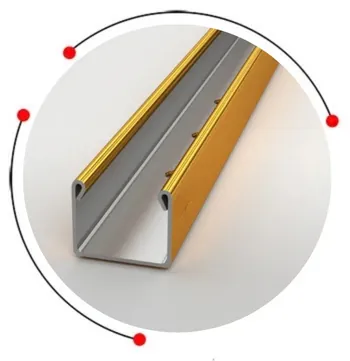

U5
SS decorative U profile surface finish
- Brushed (No. 4)
- Etched or Patterned (Optional)
- Hairline (HL)
- PVD Coated Color
- Mirror (8K Polish)
Sizes of 304 stainless steel decorative U profiles
Sizes of 304 stainless steel decorative U profiles
| Profile | Width (mm) | Length (mm) | Height (mm) | Thickness (mm) |
|---|---|---|---|---|
| U 10×10×1.0 | 10 | 2440 / 3048 | 10 | 1.0 |
| U 6×10×0.8 | 6 | 2440 / 3048 | 10 | 0.8 |
| U 20×20×1.2 | 20 | 2440 / 3048 | 20 | 1.2 |
| U 15×15×1.0 | 15 | 2440 / 3048 | 15 | 1.0 |
| U 25×25×1.2 | 25 | 2440 / 3048 | 25 | 1.2 |
Stainless steel U profile applications
- Retail display frames
- Wall panel edge trims
- Glass, wood, acrylic partition channels
- Ceiling tile borders
- Lift interior panels
- Cabinet and furniture inlays
Decorative stainless steel U profile weight chart
Decorative stainless steel U profile weight chart
| Size (mm) | Weight per meter (kg) |
|---|---|
| 20 × 20 × 1.2 | 0.65 |
| 10 × 10 × 1.0 | 0.27 |
| 15 × 15 × 1.0 | 0.40 |
| 25 × 25 × 1.2 | 0.80 |

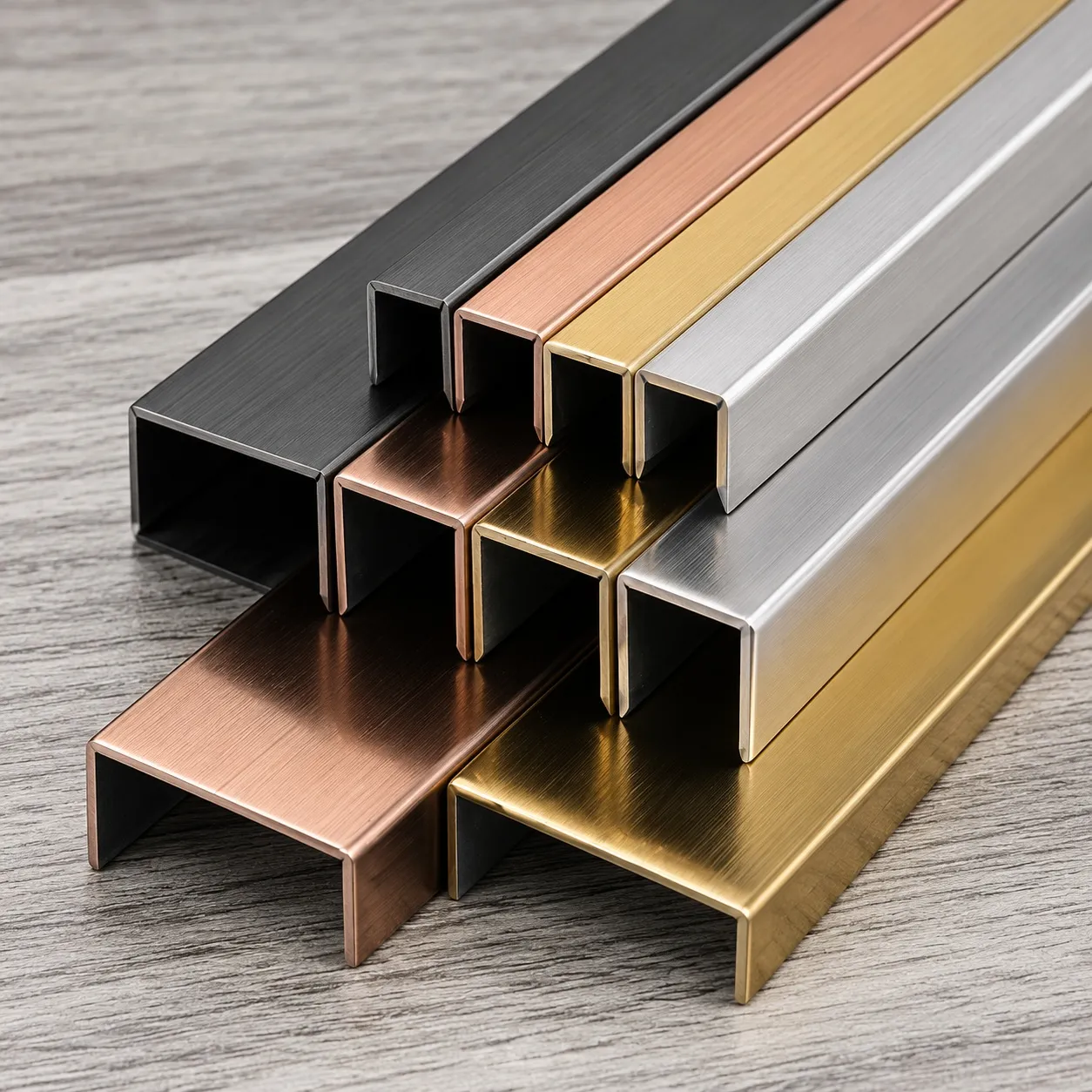

Color option of SS profiles U slot decorative tile trim
- Champagne
- Silver (Natural stainless steel)
- Gold
- Black (Gunmetal)
- Rose Gold
- Bronze
- Green, Blue, Copper (custom on request)
Stainless steel decorative U profile vs c profile
Stainless steel decorative U profile vs c profile
| Feature | U Profile | C Profile |
|---|---|---|
| Shape | closed "U" shape | open "C" shape |
| Main Use | Decorative trims, panel inlays | Structural support, framework |
| Edge Style | Open and symmetrical | Open, but often wraps or overlaps |
| Design Look | minimal, Sleek, modern | industrial, Technical |
| Decorative Use | Very high | Medium to low |
| Application | Used in Door frames, sliding doors, and furniture | Used for interior decoration, exterior cladding, skirting |
| Common Fixing | adhesive, Groove fit, or clip | rivet, Screw, weld |
Chemical composition of stainless steel U shape profile
Chemical composition of stainless steel U shape profile
| Element | % by Weight |
|---|---|
| Manganese (Mn) | ≤ 2.0% |
| Chromium (Cr) | 18–20% |
| Nickel (Ni) | 8–10.5% |
| Carbon (C) | ≤ 0.08% |
| Silicon (Si) | ≤ 1.0% |
| Iron (Fe) | Balance |
SS U shape profile mechanical properties
SS U shape profile mechanical properties
| Property | Value |
|---|---|
| Elongation | ≥ 40% |
| Tensile Strength | ≥ 520 MPa |
| Yield Strength | ≥ 205 MPa |
| Hardness | ≤ 90 HRB |
Equivalent grades of stainless steel decorative U patti
Equivalent grades of stainless steel decorative U patti
| Country | Grade |
|---|---|
| Japan (JIS) | SUS 304 / 316 |
| USA (AISI) | 304 / 316 / 201 |
| Europe (EN) | 1.4301 / 1.4401 |
| China (GB) | 06Cr19Ni10 / 06Cr17Ni12Mo2 |
FAQ
How long are the standard lengths of stainless steel decorative U profile?
Common lengths are 2440 mm (8 ft) and 3048 mm (10 ft).
What are the main benefits of using 316 stainless steel decorative U profiles?
- Modern and clean look
- Protects panel edges
- Rust and corrosion resistant
- Strong and long-lasting
- Easy to install
What are the installation steps of SS decorative U profile?
- Measure
- Cut
- Clean the Surface
- Apply Adhesive
- Insert or Place
- Secure & Hold
- Clean Up
Are SS U profiles heat-resistant?
Yes. SS can handle high temperatures and won’t melt, warp, or discolor under normal indoor conditions.
