Stainless Steel T Profile
T Profile Steel is a T-shaped stainless steel profile used for architectural detailing, panel joints, tile transitions, wall and ceiling designs, furniture, and other interior applications. It is also commonly called SS T Patti, SS T Profile, or stainless steel T profile.
Spark Steel supplies decorative stainless steel T profiles in different sizes, thicknesses, grades, finishes, and colours for architectural and interior projects. The available options can be selected according to the application, design requirements, installation conditions, and project specifications.
Specification of SS T profile
Specification of SS T profile
| SPECIFICATION | DETAILS |
|---|---|
| Size of profile | T6 - T25 |
| Length | 8 feet, 10 Feet |
| Color | Gold, Black, Rose Gold, Bronze |
| Material | 304/316 Stainless Steel |
| Thickness | 0.3 MM to 3 MM |
| Surface Finish | Mirror, Etching, Hairline, Bead Blast, Embossed, Vibration Finish |
T1
T2
T3
T4
T5
T6
How do I install a T profile?
- Preparing the Surface
- Measuring and Marking
- Cutting the Profile
- Securing the Profile in Place
Size chart of SS 304 T profile
Size chart of SS 304 T profile
| Top Width (mm) | Thickness (mm) | Vertical Leg Height (mm) |
|---|---|---|
| 6 | 0.8 | 10 |
| 10 | 1.0 | 12 |
| 15 | 1.2 | 15 |
| 20 | 1.5–2.0 | 20 |

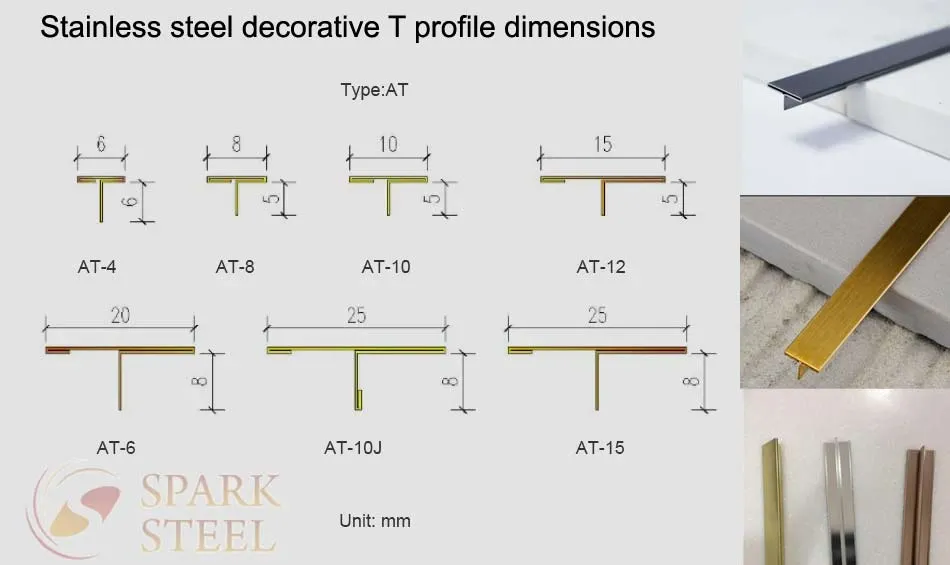

Stainless steel decorative T profile dimension
Chemical composition of stainless steel inlay T patti
Chemical composition of stainless steel inlay T patti
| Element | SS304 | SS316 |
|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.08 |
| Chromium (Cr) | 18–20% | 16–18% |
| Nickel (Ni) | 8–10.5% | 10–14% |
| Molybdenum (Mo) | — | 2–3% |
| Manganese (Mn) | ≤ 2% | ≤ 2% |
| Silicon (Si) | ≤ 1% | ≤ 1% |
Stainless steel T patti mechanical properties
Stainless steel T patti mechanical properties
| Property | SS304 | SS316 |
|---|---|---|
| Tensile Strength | 515–750 MPa | 515–760 MPa |
| Yield Strength | 205 MPa | 205 MPa |
| Elongation | 40% | 40% |
| Hardness (HRB) | ≤ 90 | ≤ 95 |
Equivalent grades of ss 316 decorative T profile
Equivalent grades of ss 316 decorative T profile
| Standard | SS304 | SS316 |
|---|---|---|
| UNS | S30400 | S31600 |
| EN | 1.4301 | 1.4401 / 1.4404 |
| JIS | SUS304 | SUS316 |
| ASTM | 304 | 316 |
Stainless steel T profile vs u profile
Stainless steel T profile vs u profile
| Category | T Profile (T-Shaped) | U Profile (Channel / U-Shaped) |
|---|---|---|
| Cross-Section | T-shaped | U or channel-shaped |
| Strength Direction | Stronger in vertical support | Stronger in edge protection and lateral support |
| Structural Role | Used as dividers or light support | Used for framing, guiding, edge holding |
| Load Bearing | Light to medium | Medium strength |
| Applications | Joint line between panels or tiles | Capping edges, tracks, frames, panel supports |
| Installation Method | Insert between two materials | Material slides into the channel |
| Typical Material | SS304 or SS316 (for corrosion resistance) | SS304 or SS316 |
| Thickness Range | Usually 0.8mm – 2.0mm | 0.6mm – 2.5mm depending on use |
FAQ
What color options are available for ss 316 decorative T profile?
- Gold
- Rose Gold
- Champagne
- Black
- Bronze / Copper
- Silver
- Blue (custom)
What are the advantages of using decorative stainless steel T profile?
- Many size and color options
- High corrosion resistance
- Elegant, modern joint finish
- Durable in wet and dry interiors
- Easy to install
Can I order custom colors or designs for t shaped stainless steel profiles?
Yes! Manufacturers offer custom PVD finishes, colors, and textures for bulk orders.
What Is T Profile Steel?
T Profile Steel is a metal section with a T-shaped cross-section. In architectural applications, the profile is generally installed at the junction between two surfaces or materials to create a clean, defined, and decorative line. Unlike a flat stainless steel strip, a T-shaped profile has a vertical section that extends into the joint or installation area, making it useful where both visual finishing and practical joint detailing are required.
Stainless steel is commonly selected for these applications because it provides a combination of:
- Corrosion resistance
- Durability
- Clean appearance
- Easy maintenance
- Multiple surface finishes
- Decorative colour options
- Compatibility with different interior materials
The correct stainless steel grade and profile specification should always be selected according to the environment and intended use.
SS T Patti – Stainless Steel T Profile
SS T Patti is a commonly used industry term for a T-shaped stainless steel decorative profile. It can be used to create a defined separation between materials such as:
- Marble
- Granite
- Ceramic tiles
- Glass
- Wood
- Stone
- Stainless steel sheets
- Decorative wall panels
- Metal panels
For example, an SS T Patti can be installed between two decorative wall panels to create a continuous metallic design line. In flooring applications, a suitable T profile can be used at selected joints or transitions. The required profile width, thickness, grade and finish depend on the dimensions of the joint and the requirements of the installation.
SS 304 T Profile vs SS 316 T Profile
Selecting the correct stainless steel grade is more important than simply choosing a colour or finish.
SS 304 is widely used for architectural and interior applications, providing a practical combination of corrosion resistance, durability, and appearance for many indoor environments. It can be considered for:
- Interior wall designs
- Furniture
- Decorative panels
- Ceiling applications
- Commercial interiors
- Tile and flooring detailing
- General architectural applications
SS 316 contains molybdenum and generally provides greater resistance to corrosion in more demanding environments than SS 304. It may be considered when the application involves:
- Higher humidity
- More aggressive environments
- Specific corrosion-resistance requirements
- Selected exterior or specialised applications
The grade should be chosen based on actual environmental conditions rather than assuming that one grade is suitable for every project.
Where Is SS T Profile Used?
How to Install a Stainless Steel T Profile
The installation method depends on the application and surrounding material, but a typical process involves four basic stages.Spark Steel also identifies surface preparation, measuring and marking, cutting, and securing the profile as key installation steps.
- Prepare the Surface — Make sure the installation area is clean, dry, and appropriately prepared.
- Measure & Mark — Measure the required length and mark the installation position accurately.
- Cut the Profile — Cut the profile to the required length using an appropriate method that does not unnecessarily damage the visible finish.
- Secure the Profile — Install the T profile using the appropriate fixing or bonding method for the substrate and application.
For visible architectural installations, accurate measurement and careful handling are important because scratches, incorrect cuts, or inconsistent alignment can affect the final appearance.
How to Choose the Right T Profile Steel
Choosing the correct profile requires more than selecting a size.
First determine where the profile will be installed — wall, floor, ceiling, furniture, panel joint, or another application.
Choose SS 304, SS 316, or another specified grade according to environmental conditions and project requirements.
Match the profile dimensions to the joint or surface being finished.
Select thickness according to the profile dimensions and installation requirements.
Choose mirror, hairline, bead blast, etched, embossed, vibration, or another available finish.
Select a colour that matches the surrounding materials and determine the required running length and cutting requirements before ordering.
Why Choose Spark Steel for SS T Profile?
Spark Steel provides stainless steel decorative products for architectural and interior applications and publishes technical information for its decorative T-profile range.
Its current T-profile information includes SS 304 and SS 316, T6–T25 sizes, multiple thicknesses, standard lengths, decorative colours and several surface finishes.
The company also states that it has 35+ years of industry experience and operates as an ISO 9001 and ISO 14001 certified company.
For project requirements, customers can provide details such as the required T profile size, stainless steel grade, thickness, length, finish, colour, quantity, and application. The supplier can then confirm the available specification for the project.
T Profile Steel for Architectural Projects
A stainless steel T profile can serve both a functional finishing purpose and a decorative design purpose. For architects, interior designers, contractors, and fabricators, the key is to match the profile specification with the application.
For example, the profile used between indoor wall panels may have different requirements from a profile exposed to moisture or demanding environmental conditions. Therefore, the best selection considers the complete combination of:
Grade + Size + Thickness + Finish + Colour + Application
rather than selecting the product based on appearance alone.
Contact Spark Steel with your required T profile size, stainless steel grade, thickness, length, finish, colour, and quantity. We can confirm the available specification for your project.
