ISO certified SS 304 L profile
Specification chart of stainless steel decorative L profile
Specification chart of stainless steel decorative L profile
| SPECIFICATION | DETAILS |
|---|---|
| Grade | SS 304, SS 316 & SS 202 |
| Thickness | 0.6 ~ 2.0 mm |
| Sizes | 10×10, 20×20, 25×25, 30×30, 50×50 |
| Color | Silver, Rose Gold, Gold, Black, Champagne, Bronze, Antique |
| Surface Finish | Mirror, Etching, Hairline, Embossed, Bead Blast |
| Length | 2440mm | 3050mm |

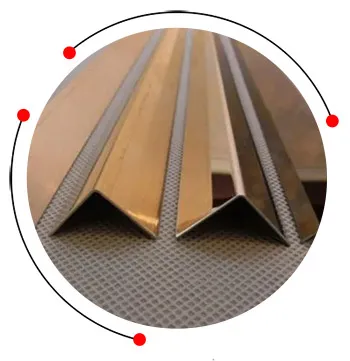

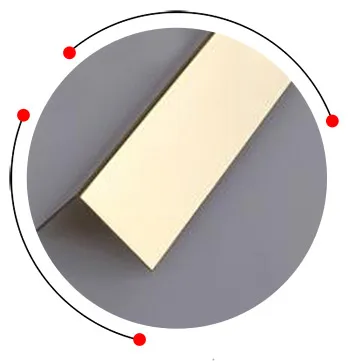

Stainless steel decorative L profile

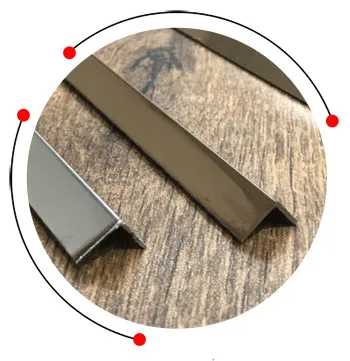

SS L profile

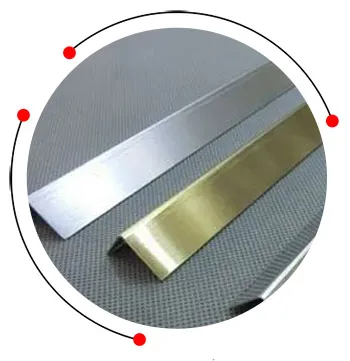

SS 304 L profile

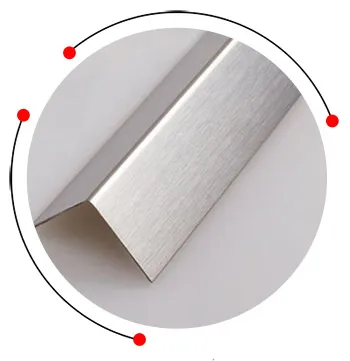

Stainless steel L shape profile
SS decorative L profile

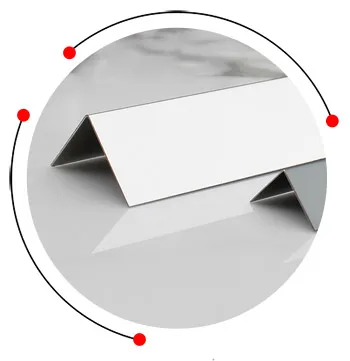

Stainless steel L profile trim
SS 304 L profile sizes
SS 304 L profile sizes
| Size (mm) | Thickness Range (mm) |
|---|---|
| 10 × 10 | 0.5 – 1.0 |
| 15 × 15 | 0.6 – 1.0 |
| 20 × 20 | 0.8 – 1.2 |
| 25 × 25 | 1.0 – 1.5 |
| 30 × 30 – 50 × 50 | 1.0 – 2.0 |
Stainless steel L shape profile application
- Edge Protection
- Decorative Trim
- Floor and Wall Transitions
- Framing
- Hygienic Surfaces
- Structural Support

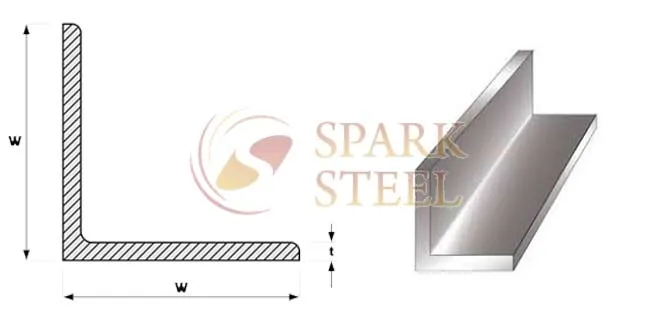

SS decorative L profile dimensions
SS decorative L profile dimensions
| Size (mm) | Weight (kg/m) | Thickness (mm) |
|---|---|---|
| 20 x 20 | 0.89 | 3 |
| 25 x 25 | 1.12 | 3 |
| 30 x 30 | 1.36 | 3 |
| 35 x 35 | 2.09 | 4 |
| 40 x 40 | 1.84 | 3 |
| 40 x 40 | 2.42 | 4 |
| 45 x 45 | 3.38 | 5 |
| 50 x 50 | 3.06 | 4 |
| 50 x 50 | 3.77 | 5 |
| 60 x 60 | 4.58 | 5 |
| 60 x 60 | 5.42 | 6 |
| 70 x 70 | 7.38 | 7 |
| 80 x 80 | 9.66 | 8 |
| 90 x 90 | 12.2 | 9 |
| 100 x 100 | 15.1 | 10 |
| 120 x 120 | 21.6 | 12 |

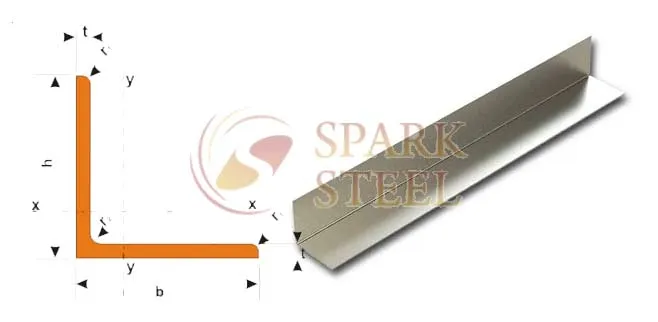

Weight chart of stainless steel L profile trim
Weight chart of stainless steel L profile trim
| Nominal dimensions | Cross-section | Section properties, static data |
Nominal weight 1m |
||||||
|---|---|---|---|---|---|---|---|---|---|
| mm | A | Ix=Iy | Wx=Wy | ix=iy | |||||
| h=b |
t | r2 | r1 | d | cm2 | cm4 | cm3 | cm | kg/m |
| 15 | 3 | 3,5 | 2,0 | ? | 0,82 | 0,15 | 0,15 | 0,43 | 0,64 |
| 20 | 3,0 | 3,5 | 2,0 | 0,6 | 1,11 | 0,40 | 0,28 | 0,59 | 0,88 |
| 25 | 3,0 | 3,5 | 2,0 | 0,7 | 1,41 | 0,79 | 0,45 | 0,75 | 1,11 |
| 25 | 4,0 | 3,5 | 2,0 | 0,8 | 1,84 | 1,01 | 0,58 | 0,74 | 1,45 |
| 25 | 5,0 | 3,5 | 2,0 | 0,8 | 2,27 | 1,20 | 0,71 | 0,75 | 1,78 |
| 30 | 3,0 | 5,0 | 2,5 | 0,8 | 1,73 | 1,41 | 0,65 | 0,90 | 1,36 |
| 30 | 4,0 | 5,0 | 2,5 | 0,9 | 2,26 | 1,81 | 0,85 | 0,89 | 1,78 |
| 30 | 5,0 | 5,0 | 2,5 | 0,9 | 2,78 | 2,16 | 1,04 | 0,88 | 2,18 |
| 35 | 3,0 | 5,0 | 2,5 | 1,0 | 2,03 | 2,30 | 0,90 | 1,06 | 1,60 |
| 35 | 3,5 | 5,0 | 2,5 | 1,0 | 2,35 | ? | 1,05 | 1,05 | 1,85 |
| 35 | 4,0 | 5,0 | 2,5 | 1,0 | 2,66 | 2,96 | 1,18 | 1,05 | 2,09 |
| 35 | 5,0 | 5,0 | 2,5 | 1,0 | 3,28 | 3,56 | 1,45 | 1,04 | 2,57 |
| 40 | 3,0 | 6,0 | 3,0 | 1,1 | 2,34 | 3,46 | 1,18 | 1,21 | 1,84 |
| 40 | 4,0 | 6,0 | 3,0 | 1,1 | 3,07 | 4,49 | 1,55 | 1,20 | 2,42 |
| 40 | 5,0 | 6,0 | 3,0 | 1,2 | 3,78 | 5,45 | 1,91 | 1,19 | 2,97 |
| 40 | 6,0 | 6,0 | 3,0 | 1,2 | 4,48 | 6,31 | 2,26 | 1,19 | 3,52 |
| 45 | 3,0 | 7,0 | 3,5 | 1,2 | 2,66 | 4,96 | 1,49 | 1,36 | 2,09 |
| 45 | 4,0 | 7,0 | 3,5 | 1,2 | 3,49 | 6,47 | 1,97 | 1,36 | 2,75 |
| 45 | 4,5 | 7,0 | 3,5 | 1,3 | 3,89 | 7,17 | 2,21 | 1,36 | 3,06 |
| 45 | 5,0 | 7,0 | 3,5 | 1,3 | 4,30 | 7,88 | 2,44 | 1,35 | 3,39 |
| 45 | 6,0 | 7,0 | 3,5 | 1,3 | 5,09 | 9,16 | 2,88 | 1,34 | 4,00 |
| 45 | 7,0 | 7,0 | 3,5 | ? | 5,86 | 10,70 | 3,31 | 1,33 | 4,60 |
| 50 | 3,0 | 7,0 | 3,5 | 1,3 | 2,96 | 6,86 | 1,86 | 1,52 | 2,33 |
| 50 | 4,0 | 7,0 | 3,5 | 1,4 | 3,89 | 9,01 | 2,47 | 1,52 | 3,07 |
| 50 | 5,0 | 7,0 | 3,5 | 1,4 | 4,80 | 11,00 | 3,05 | 1,51 | 3,77 |
| 50 | 6,0 | 7,0 | 3,5 | 1,4 | 5,69 | 12,90 | 3,62 | 1,50 | 4,47 |
| 50 | 7,0 | 7,0 | 3,5 | 1,5 | 6,57 | 14,60 | 4,15 | 1,49 | 5,15 |
| 50 | 8,0 | 7,0 | 3,5 | 1,5 | 7,41 | 16,30 | 4,68 | 1,48 | 5,82 |
| 50 | 9,0 | 7,0 | 3,5 | ?. | 8,24 | 17,90 | 5,20 | 1,47 | 6,47 |
| 55 | 5,0 | 8,0 | 4,0 | 1,5 | 5,31 | 14,80 | 3,71 | 1,66 | 4,18 |
| 55 | 6,0 | 8,0 | 4,0 | 1,6 | 6,30 | 17,40 | 4,40 | 1,65 | 4,95 |
| 55 | 8,0 | 8,0 | 4,0 | ? | 8,23 | 22,10 | 5,72 | 1,64 | 6,45 |
| 60 | 4,0 | 8,0 | 4,0 | 1,6 | 4,71 | 15,80 | 3,58 | 1,83 | 3,70 |
| 60 | 5,0 | 8,0 | 4,0 | 1,6 | 5,84 | 19,40 | 4,45 | 1,82 | 4,57 |
| 60 | 6,0 | 8,0 | 4,0 | 1,7 | 6,90 | 22,90 | 5,25 | 1,81 | 5,42 |
| 60 | 8,0 | 8,0 | 4,0 | 1,8 | 9,02 | 29,20 | 6,90 | 1,79 | 7,09 |
| 60 | 10,0 | 8,0 | 4,0 | 1,9 | 11,10 | 34,90 | 8,41 | 1,78 | 8,69 |
| 65 | 6,0 | 9,0 | 4,5 | 1,8 | 7,52 | 29,30 | 6,23 | 1,97 | 5,91 |
| 65 | 7,0 | 9,0 | 4,5 | 1,9 | 8,70 | 33,40 | 7,18 | 1,96 | 6,83 |
| 65 | 8,0 | 9,0 | 4,5 | 1,9 | 9,84 | 37,60 | 8,14 | 1,95 | 7,73 |
| 65 | 9,0 | 9,0 | 4,5 | ? | 11,00 | 41,30 | 9,04 | 1,94 | 8,62 |
| 70 | 6,0 | 9,0 | 4,5 | 1,9 | 8,14 | 36,90 | 7,27 | 2,13 | 6,39 |
| 70 | 7,0 | 9,0 | 4,5 | 2,0 | 9,41 | 42,40 | 8,43 | 2,12 | 7,39 |
| 70 | 8,0 | 9,0 | 4,5 | 2,0 | 10,66 | 47,50 | 9,49 | 2,10 | 8,41 |
| 70 | 9,0 | 9,0 | 4,5 | 2,1 | 11,90 | 52,60 | 10,60 | 2,10 | 9,34 |
| 70 | 10,0 | 9,0 | 4,5 | 2,09 | 13,10 | 57,20 | 11,70 | 2,09 | 10,30 |
| 75 | 6,0 | 9,0 | 4,5 | 2,1 | 8,73 | 45,80 | 8,41 | 2,28 | 6,85 |
| 75 | 7,0 | 9,0 | 4,5 | 2,1 | 10,10 | 52,40 | 9,67 | 2,28 | 7,94 |
| 75 | 8,0 | 9,0 | 4,5 | 2,1 | 11,50 | 58,90 | 11,00 | 2,26 | 9,03 |
| 75 | 10,0 | 10,0 | 5,0 | ? | 14,10 | 71,40 | 13,50 | 2,25 | 11,10 |
| 80 | 6,0 | 10,0 | 5,0 | 2,2 | 9,34 | 56,00 | 9,59 | 2,44 | 7,34 |
| 80 | 8,0 | 10,0 | 5,0 | 2,3 | 12,26 | 72,50 | 12,60 | 2,43 | 9,63 |
| 80 | 10,0 | 10,0 | 5,0 | 2,3 | 15,10 | 87,70 | 15,50 | 2,40 | 11,86 |
| 90 | 6,0 | 11,0 | 5,0 | 2,4 | 10,54 | 80,90 | 12,30 | 2,77 | 8,28 |
| 90 | 7,0 | 11,0 | 5,0 | 2,5 | 12,24 | 92,50 | 14,30 | 2,75 | 9,60 |
| 90 | 8,0 | 11,0 | 5,0 | 2,5 | 13,86 | 105,20 | 16,20 | 2,75 | 10,89 |
| 90 | 9,0 | 11,0 | 5,0 | 2,5 | 15,52 | 115,80 | 17,93 | 2,73 | 12,20 |
| 90 | 10,0 | 11,0 | 5,0 | 2,6 | 17,10 | 128,10 | 19,90 | 2,73 | 13,43 |
| 90 | 11,0 | 12,0 | 6,0 | ? | 18,70 | 138,00 | 21,60 | 2,72 | 14,20 |
| 90 | 12,0 | 12,0 | 6,0 | 2,7 | 20,30 | 148,00 | 23,30 | 2,70 | 15,90 |
| 100 | 6,0 | 12,0 | 6,0 | 2,6 | 11,79 | 111,00 | 15,10 | 3,07 | 9,26 |
| 100 | 8,0 | 12,0 | 6,0 | 2,7 | 15,51 | 145,00 | 20,00 | 3,06 | 12,18 |
| 100 | 10,0 | 12,0 | 6,0 | 2,8 | 19,15 | 177,00 | 24,70 | 3,04 | 15,04 |
| 100 | 12,0 | 12,0 | 6,0 | 2,9 | 22,71 | 207,00 | 29,20 | 3,01 | 17,83 |
| 100 | 15,0 | 12,0 | 6,0 | 3,0 | ? | 249,00 | 35,60 | 2,98 | 21,90 |
| 110 | 8,0 | 12,0 | 6,0 | 3,0 | 17,11 | 196,00 | 24,40 | 3,38 | 13,43 |
| 110 | 10,0 | 12,0 | 6,0 | 3,1 | 21,15 | 239,00 | 30,20 | 3,36 | 16,61 |
| 110 | 12,0 | 13,0 | 6,5 | ? | 25,14 | 279,10 | 35,54 | 3,33 | 19,70 |
| 120 | 8,0 | 13,0 | 6,5 | 3,2 | 18,74 | 256,00 | 29,20 | 3,69 | 14,71 |
| 120 | 10,0 | 13,0 | 6,5 | 3,3 | 23,18 | 314,00 | 36,10 | 3,67 | 18,20 |
| 120 | 11,0 | 13,0 | 6,5 | ? | 25,37 | 340,60 | 39,41 | 3,66 | 19,90 |
| 120 | 12,0 | 13,0 | 6,5 | 3,4 | 27,54 | 368,00 | 42,80 | 3,65 | 21,62 |
| 120 | 13,0 | 13,0 | 6,5 | ? | 29,69 | 394,00 | 46,01 | 3,64 | 23,30 |
| 120 | 15,0 | 13,0 | 6,5 | 3,5 | 33,96 | 444,90 | 52,43 | 3,62 | 26,60 |
| 130 | 12,0 | 14,0 | 7,0 | 3,6 | 29,97 | 473,00 | 50,50 | 3,97 | 23,53 |
| 130 | 14,0 | 14,0 | 7,0 | 3,7 | 34,65 | 541,00 | 58,30 | 3,95 | 27,20 |
| 140 | 10,0 | 15,0 | 7,5 | 3,8 | 27,24 | 506,00 | 49,50 | 4,30 | 21,38 |
| 140 | 12,0 | 15,0 | 7,5 | 3,9 | 32,40 | 596,00 | 58,70 | 4,28 | 25,44 |
| 140 | 13,0 | 15,0 | 7,5 | ? | 34,95 | 568,50 | 63,37 | 4,27 | 27,40 |
| 140 | 14,0 | 15,0 | 7,5 | 4,0 | 37,48 | 683,00 | 68,00 | 4,26 | 29,42 |
| 150 | 10,0 | 16,0 | 8,0 | 4,0 | 29,27 | 624,00 | 56,91 | 4,62 | 23,00 |
| 150 | 12,0 | 16,0 | 8,0 | 4,1 | 34,83 | 736,90 | 67,75 | 4,60 | 27,30 |
| 150 | 14,0 | 16,0 | 8,0 | ? | 40,31 | 845,40 | 78,33 | 4,58 | 31,60 |
| 150 | 15,0 | 16,0 | 8,0 | 4,3 | 43,02 | 898,10 | 83,52 | 4,57 | 33,80 |
| 150 | 18,0 | 16,0 | 8,0 | 4,4 | 51,03 | 1050,00 | 98,74 | 4,54 | 40,01 |
| 160 | 10,0 | 17,0 | 8,5 | 4,3 | 31,31 | 763,00 | 65,00 | 4,93 | 24,58 |
| 160 | 12,0 | 17,0 | 8,5 | 4,4 | 37,27 | 902,00 | 77,50 | 4,91 | 29,26 |
| 160 | 14,0 | 17,0 | 8,5 | 4,4 | 43,15 | 1036,00 | 89,60 | 4,89 | 34,87 |
| 160 | 15,0 | 17,0 | 8,5 | 4,5 | 46,03 | 1099,00 | 95,47 | 4,88 | 36,20 |
| 160 | 16,0 | 17,0 | 8,5 | 4,5 | 48,95 | 1165,00 | 101,50 | 4,87 | 38,43 |
| 160 | 17,0 | 17,0 | 8,5 | ? | 51,82 | 1225,00 | 107,20 | 4,86 | 40,70 |
| 180 | 12,0 | 18,0 | 9,0 | 4,9 | 42,10 | 1300,00 | 98,80 | 5,55 | 33,05 |
| 180 | 14,0 | 18,0 | 9,0 | 4,9 | 48,78 | 1496,00 | 114,50 | 5,37 | 38,30 |
| 180 | 16,0 | 18,0 | 9,0 | 5,0 | 55,39 | 1682,00 | 129,70 | 5,51 | 43,50 |
| 180 | 18,0 | 18,0 | 9,0 | 5,1 | 61,91 | 1866,00 | 144,70 | 5,49 | 48,60 |
| 200 | 14,0 | 18,0 | 9,0 | 5,4 | 54,38 | 2078,00 | 142,70 | 6,18 | 42,69 |
| 200 | 16,0 | 18,0 | 9,0 | 5,5 | 61,78 | 2344,00 | 161,90 | 6,15 | 48,50 |
| 200 | 18,0 | 18,0 | 9,0 | 5,6 | 69,11 | 2600,00 | 180,60 | 6,13 | 54,20 |
| 200 | 20,0 | 18,0 | 9,0 | 5,7 | 76,34 | 2854,00 | 199,30 | 6,11 | 59,93 |
| 200 | 24,0 | 18,0 | 9,0 | 5,84 | 90,59 | 3331,00 | 235,20 | 6,06 | 71,70 |
| 250 | 25,0 | 20,0 | 10,0 | 7,1 | 119,00 | 6975,00 | 390,00 | 7,65 | 93,60 |
| 250 | 28,0 | 18,0 | 9,0 | 7,2 | 133,00 | 7697,00 | 433,00 | 7,62 | 104,00 |
| 250 | 32,0 | 20,0 | 10,0 | 7,4 | 150,00 | 8597,00 | 488,00 | 7,57 | 118,00 |
| 250 | 35,0 | 18,0 | 9,0 | 7,5 | 163,00 | 9264,00 | 529,00 | 7,54 | 228,00 |
SS 304 L shape profiles finish
- PVD Coated (Gold, Rose Gold, Black, Bronze, etc.)
- Hairline Finish
- Bead Blasted Finish
- Brushed Finish (No. 4)
- Mirror Finish (No. 8)
- Matte Finish
Stainless steel L profile chemical composition
Stainless steel L profile chemical composition
| Standard | State | P % | S % | N % | C % | Mn % | Cu % | CEV % |
|---|---|---|---|---|---|---|---|---|
| SE EN 10056 | S235JR | max 0.04 | max 0.04 | max 0.012 | max 20 | max 1.4 | max 0.55 | max 0.38 |
SS 316 decorative L profile mechanical properties
SS 316 decorative L profile mechanical properties
| State | Thickness | Rm N/mm2 | Rp 0,2 | A5 (%) |
|---|---|---|---|---|
| S235JR | <16 | 360-510 | 235 | 26 |
| 16-40 | 360-510 | 225 | 26 | |
| 40-63 | 360-510 | 215 | 25 | |
| 63-80 | 360-510 | 215 | 24 | |
| 80-100 | 360-510 | 215 | 24 | |
| 100-125 | 350-500 | 195 | 22 |
L shape SS profile equivalent grades
L shape SS profile equivalent grades
| Standard | Equivalent Grade |
|---|---|
| JIS (Japan) | SUS 304 |
| BS (British Standard) | 304S31 |
| UNS (Unified Numbering System) | S30400 |
| EN / DIN (Europe / Germany) | 1.4301 |
| GOST (Russia) | 08Х18Н10 |
| AFNOR (France) | Z7CN18-09 |
Stainless steel decorative L profile characteristics
- Thermal Resistance
- Flexibility
- Ease of Installation
- Finish Options
- Symmetry
- Shape
- Aesthetic Appeal
- Durability
- Corrosion Resistance
FAQ
What is the main difference between equal and unequal SS decorative L profiles?
What is the main difference between equal and unequal SS decorative L profiles?
| Feature | Equal L Profile | Unequal L Profile |
|---|---|---|
| Shape | Both legs are the same length (e.g., 20×20 mm) | Legs are of different lengths (e.g., 25×15 mm) |
| Usage | Furniture edges, clean framing, glass corners | Wall corners, floor trims, edge detailing |
| Finish Options | Mirror, Hairline, PVD (gold, black, bronze) | Mirror, Hairline |
| Common Sizes | 10×10, 20×20, 25×25, 30×30, 50×50 | 20×10, 25×15, 30×20, 40×20 |
| Material Grades | SS304 , SS316 | SS304, SS316 |
| Application Areas | Furniture, partitions, counters | Tiles, wall-to-wall, flooring connections |
What are the common sizes available for SS 304 L shape profiles?
SS L profiles are commonly available in sizes like 20×20 mm, 10×10 mm, 25×25 mm, and can be customized in thickness and length
What finishes are available for SS 304 L profile?
Finishes include hairline, mirror polish,brushed, and PVD coatings such as gold, bronze, black, and rose gold.
What materials are used for SS L profiles?
SS 304 and SS 316 materials are commonly used.
