SS 304 J profile
Stainless steel decorative J profile specification
Stainless steel decorative J profile specification
| SPECIFICATION | DETAILS |
|---|---|
| Material | 304/316 Stainless Steel |
| Size | 6mm to 100mm |
| Color | Gold, Black, Rose Gold, Bronze |
| Application | Jiles, Construction |
| Finishes | Mirror , Hairline , Bead Blast |
| Thickness | 0.6 MM to 3 MM |

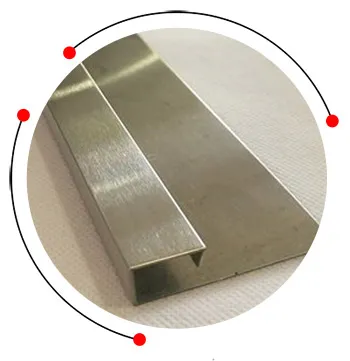

Stainless steel decorative J profile

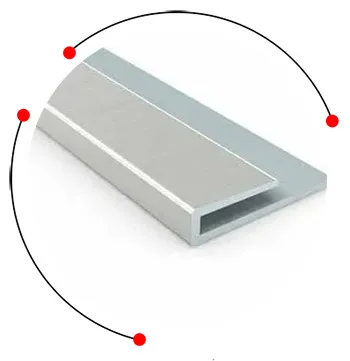

SS 304 J profile

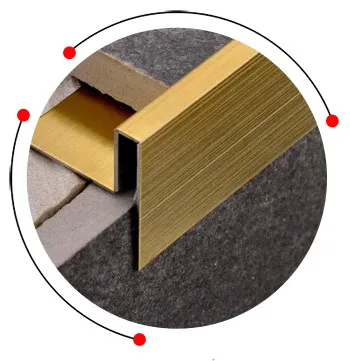

Stainless steel J profile

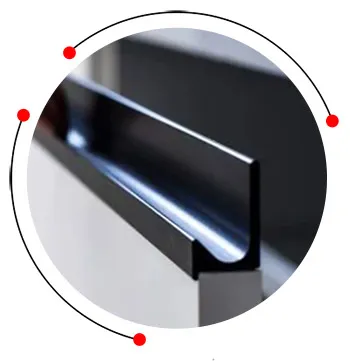

SS decorative J profile

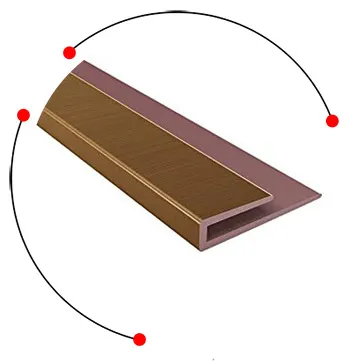

Stainless steel J profiles sections

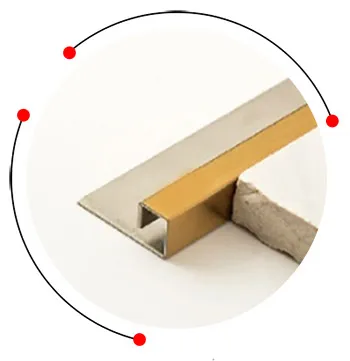

SS J profile
Sizes of stainless steel J profile
Sizes of stainless steel J profile
| Height (H) mm | Width (W) mm | Radius (R) mm | Thickness (T) mm | Weight (kg/m) |
|---|---|---|---|---|
| 10 | 20 | 2 | 1.0 | 0.54 |
| 12 | 25 | 2 | 1.0 | 0.62 |
| 15 | 30 | 2 | 1.0 | 0.71 |
| 26 | 56.9 | 6.5 | 1.2 | 1.28 |
SS decorative J profile application
- Countertop edge covers
- Tile edge protection
- Wall cladding finish trims
- Stair tread protection
- Furniture decoration

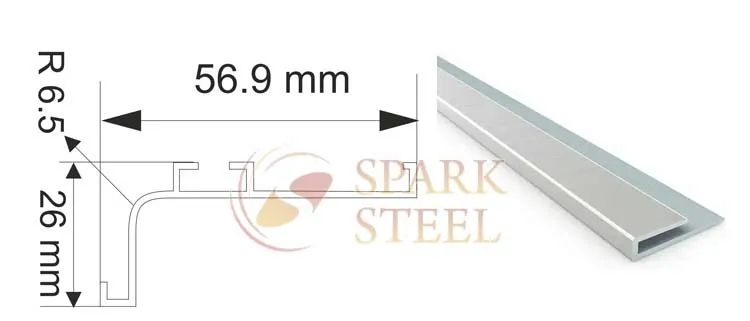

Stainless steel J profiles sections dimensions
Stainless steel J profiles sections dimensions
| Height (H) | Radius (R) | Width (W) | Thickness (T) |
|---|---|---|---|
| 15 mm | 2 mm | 30 mm | 1 mm |
| 10 mm | 2 mm | 20 mm | 1 mm |
| 12 mm | 2 mm | 25 mm | 1 mm |
| 26 mm | 6.5 mm | 56.9 mm | 1.2 mm |
SS J profile finish
- Matte
- Mirror
- Hairline
- Brushed
- Satin
Differences between stainless steel decorative J profile and c profile
Differences between stainless steel decorative J profile and c profile
| Profile | Common Usage | Shape | Key Feature |
|---|---|---|---|
| J Profile | Edge protection, tile trims | Hook-like edge | Easy installation and Stylish finish |
| C Profile | Framing, construction | C-shaped channel | Stronger load-bearing, Structural support |
Stainless steel J patti characteristics
- Non-magnetic in annealed condition
- Hygienic and easy to clean
- Excellent aesthetic finish
- Corrosion resistance
- Long life span
Chemical composition of SS 316 decorative J profile
Chemical composition of SS 316 decorative J profile
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 8–10.5 |
| Carbon (C) | ≤ 0.08 |
| Chromium (Cr) | 18–20 |
| Manganese (Mn) | ≤ 2.0 |
| Silicon (Si) | ≤ 1.0 |
Stainless steel J profile trim mechanical properties
Stainless steel J profile trim mechanical properties
| Property | Value |
|---|---|
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 40% |
| Tensile Strength | 520–750 MPa |
| Hardness (HRB) | ≤ 90 |
Stainless steel 304 decorative J profiles equivalent grades
Stainless steel 304 decorative J profiles equivalent grades
| Standard | Equivalent Grade |
|---|---|
| JIS | SUS 304 |
| DIN | X5CrNi18-10 |
| ASTM | 304 |
| EN | 1.4301 |
FAQ
Is SS J profile resistant to corrosion?
Yes, especially grades like SS 316 and SS 304 offer excellent corrosion resistance.
Which grade is commonly used for stainless steel decorative J profiles?
SS Grade 304 is the most commonly used due to its appearance, balance of strength, and corrosion resistance.
