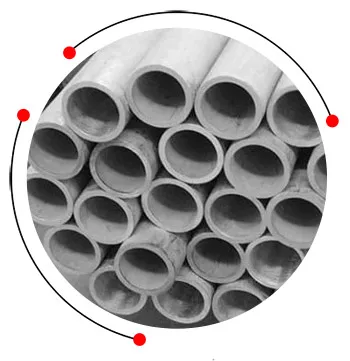

Stainless steel 347 pipe

ISO Certified Manufacturer

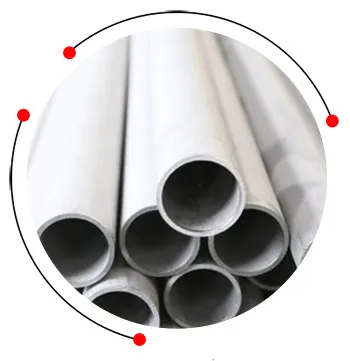

SS 347 seamless pipe

20+

Years of Experience

50+

Grades in Stock

1/8"–2–4"

Size Range

100%

Quality Tested

Specification of Stainless steel 347 pipe

SPECIFICATION	DETAILS
Size	½ to 6 Inch NB
Wall Thickness	0.1 To 60 mm
Technique	Cold Rolled, Hot Rolled
Types	Seamless, ERW, Welded, EFW
Standard Specification	ASTM A 312 Tp347/ ASME SA 312 Tp 347
Surface Finish	Bright, Annealing, Cold Finish, Polished, Pickling

Stainless steel 347 pipe

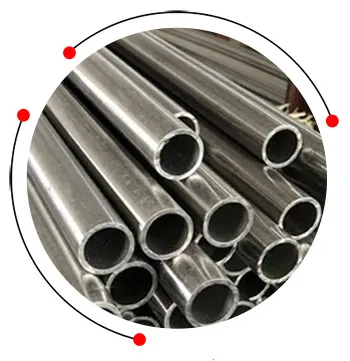

ASTM A312 347 welded pipes

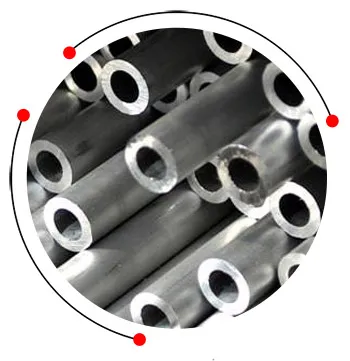

ASTM A213 TP347 ERW pipe

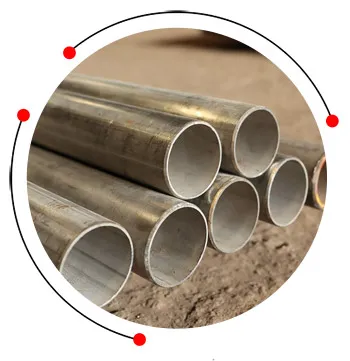

UNS S34709 schedule 40 pipes

SS 347 seamless pipe

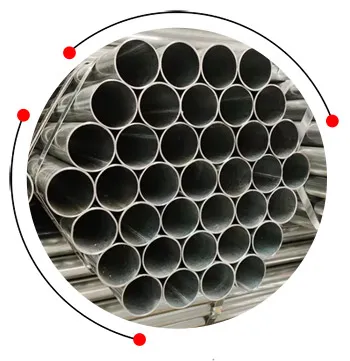

AISI 347 round pipes

347 stainless steel pipe price

Description	Price in USD	Price in Kilogram (INR)
Stainless Steel 347 Round Seamless Pipe, 3 meter	$ 4.73	₹ 405
SS 347 Seamless Pipe, Thickness: 2 mm To 19 mm	$ 4.44	₹ 380
Round SS 347 Seamless Pipes, 12 meter	$ 7.00	₹ 600

SS 347 seamless pipe sizes

Pipe OD mm	Sch	Pipe WT mm	Kg/m	in.
114.30	160	13.49	34.05	4
73.03	80S	7.01	11.59	2½
60.33	160	8.74	11.29	2
168.28	120	14.27	54.75	6
88.90	160	11.13	21.67	3
101.60	80S	8.08	18.92	3½
17.15	80S	3.20	1.12	3/8
13.72	80S	3.02	0.81	1/4
21.34	80S	3.73	1.65	1/2
42.16	160	6.35	5.69	1¼
26.67	80S	3.91	2.23	3/4
219.08	160	23.01	112.97	8
33.40	160	6.35	4.30	1
141.30	160	15.88	49.87	5
48.26	80S	5.08	5.49	1½

ASTM A312 347H Welded Pipe pressure rating

Pipe Size (inches)	Pipe Schedule	Temperature (°F)
Pipe Size (inches)	Pipe Schedule	300	500	400	100	600	700	650	750	200
8"	160	2460	2103	2262	3175	2004	1905	1944	1885	2738
4"	80	1715	1466	1577	2213	1397	1328	1355	1314	1909
5"	80	1535	1312	1411	1981	1250	1189	1213	1176	1709
6"	40	945	808	869	1219	770	732	747	724	1052
2"	80	2129	1820	1957	2747	1734	1648	1682	1631	2369
8"	40	832	711	765	1073	678	644	657	637	926
1"	80	3265	2791	3002	4213	2659	2528	2580	2501	3634
6"	160	2549	2179	2343	3289	2076	1973	2014	1953	2836
4"	40	1187	1014	1091	1531	967	919	938	909	1321
10"	80	1247	1066	1147	1609	1016	966	986	956	1388
1.5"	80	2466	2108	2267	3182	2009	1909	1949	1889	2744
3"	80	1979	1691	1819	2553	1612	1532	1564	1516	2202
10"	160	2439	2085	2242	3147	1986	1880	1927	1868	2714
5"	40	1040	889	956	1342	847	805	822	797	1158

Origin of material
Third Party Inspection
Labeling verification
MTC EN 10204 3.1/3.2
QC
Inspection reports
Verify quantity

347H stainless steel pipe weight chart

NPS (DN)	ID	WEIGHT LB/FT (KG/M)	Outside Diameter IN (Milimeter)	SCH	WT IN (Milimeter)
36	.0.0.0	107.03	36.00	.0.0.0	0.0281
32	.0.0.0	188.087	32.00	.0.0.0	0.0562
34	.0.0.0	101.029	34.00	.0.0.0	0.0281
36	STD	142.081	36.00	.0.0.0	0.0375
38	.0.0.0	163.016	38.00	.0.0.0	0.0406
34	.0.0.0	112.036	34.00	10	0.0312
36	.0.0.0	119.003	36.00	10	0.0312
38	.0.0.0	138.047	38.00	.0.0.0	0.0344
32	.0.0.0	84.085	32.00	.0.0.0	0.025
36	.0.0.0	131.012	36.00	.0.0.0	0.0344
34	.0.0.0	90.02	34.00	.0.0.0	0.025
32	STD	126.078	32.00	.0.0.0	0.0375
38	.0.0.0	125.07	38.00	.0.0.0	0.0312
32	.0.0.0	137.012	32.00	.0.0.0	0.0406
32	.0.0.0	209.062	32.00	30	0.0625
34	STD	134.079	34.00	.0.0.0	0.0375
38	STD	150.083	38.00	.0.0.0	0.0375
36	.0.0.0	154.048	36.00	.0.0.0	0.0406
34	.0.0.0	123.077	34.00	.0.0.0	0.0344
38	.0.0.0	175.087	38.00	.0.0.0	0.0438

Dimensions of ASTM A213 TP347 ERW pipe

NPS (inches)	OD (mm)	Schedule 40S (mm)	Schedule 10S (mm)	Schedule 80S (mm)
3"	88.9	5.49	3.05	7.62
4"	114.3	6.02	3.05	8.56
1/2"	21.3	2.77	2.11	3.73
3/4"	26.7	2.87	2.11	3.91
1"	33.4	3.38	2.77	4.55
1-1/2"	48.3	3.68	2.77	5.08
2"	60.3	3.91	2.77	5.54
6"	168.3	7.11	3.40	10.97
8"	219.1	8.18	3.76	12.70
10"	273.1	9.27	4.19	15.09

Stainless steel 347 pipe chemical composition

Element	Cb/Ta	P	Cr	C	Mn	Ni	Si	S
347	min:10x C max: 1.0	0.04 max	min: 17.0 max: 20.0	0.08 max	2.0 max	min: 9.0 max: 13.0	0.75 max	0.30 max
347H	min:10x C max: 1.0	0.03 max	min: 17.0 max: 20.0	min: 0.04 max: 0.10	2.0 max	min: 9.0 max: 13.0	0.75 max	0.30 max

UNS S34709 Schedule 40 pipes mechanical properties

Grade	Elongation (% in 50mm) min	Tensile Strength ksi (MPa) min	Yield Strength 0.2% ksi offset ksi (MPa) min	Hardness (Brinell) MAX	Hardness (Rockwell B) MAX
347/347H	40	75 (515)	30 (205)	201	95

AISI 347 round pipes physical properties

Coefficient of Thermal Expansion (min/in)-°F		Thermal Conductivity BTU/hr-ft-°F	Density lbm/in3	Specific Heat BTU/lbm -°F	Modules of Elasticity (annealed)2-psi
at 68 to 212°F	at 68 to 1832°F	68-932°F	at 68 °F	at 32 to 212°F	in tension (E)
9.2	11.4	14.7	0.288	0.12	28 x 106

ASTM A312 TP347 pipes equivalent grade

STANDARD	WNR.	UNS	EN	GOST	JIS
SS 347	1.4550	S34700	X6CrNiNb18-10	08Ch18N12B	SUS 347
SS 347H	1.4961	S34709	X6CrNiNb18-12	-	SUS 347H

Stainless Steel 347 ERW Pipes temperature range

Property	Value/Range
Intermittent Service Temperature	900°C (1652°F)
Cryogenic Limit	Down to -196°C (-320°F)
Continuous Service Temperature	870°C (1600°F)
>Oxidation Resistance	Up to 870°C (1600°F)

Oil & Gas Industry
Petrochemical Industry
Chemical Processing
Aerospace Industry
Power Plants
Pharmaceutical Industry

SS 347 Pipe hsn code

Material	HS code
347 SS Pipe	73044900
