ASTM A210 Gr A1 steam boiler tubes
sa 210 gr a1 material specification
sa 210 gr a1 material specification
| SPECIFICATION | DETAILS |
|---|---|
| Size range | 1⁄2 inch to 16 inch |
| Wall thickness | 1.5mm To 50mm |
| Length | 5 mm - 25 mm |
| Manufacturing methods | Seamless, Hot finishing, Cold rolled |
| Coating | FBE/ Epoxy, 3PE, Varnished, Polished |
| End | Beveled and Plain End |

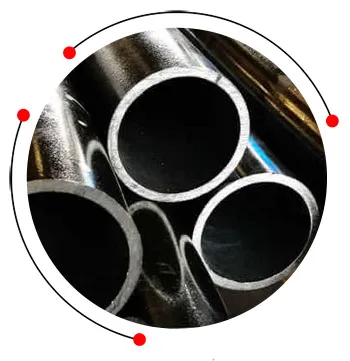

SA 210 Grade A1 boiler tube

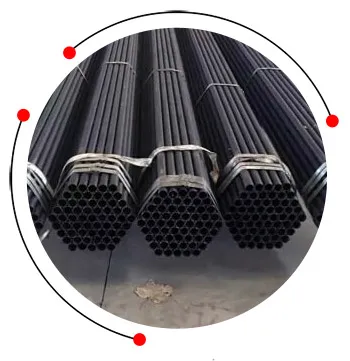

ASTM A210 Gr A1 steam boiler pipe

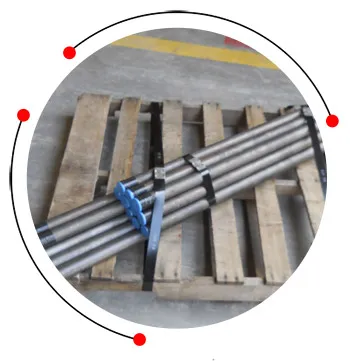

ASME SA 210 condenser tube

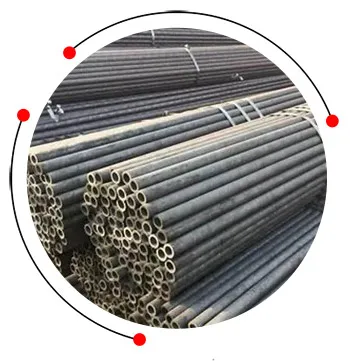

SA210 Gr A1 seamless boiler tube

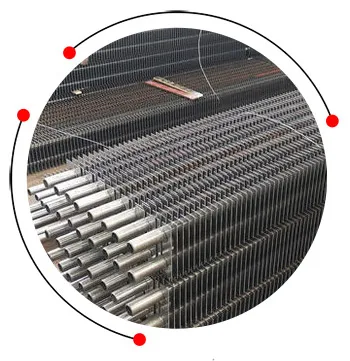

ASTM A210 Grade A1 finned boiler tube

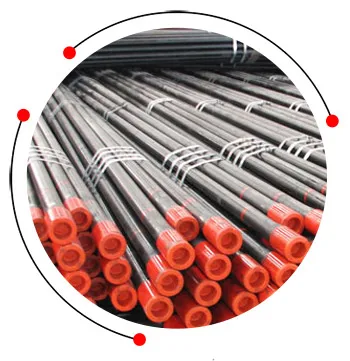

SA 210 A1 superheater tube
ASTM A210 Gr A1 steam boiler pipe size
ASTM A210 Gr A1 steam boiler pipe size
| Size (inch) | OD (mm) |
|---|---|
| 3 | 88.9 |
| 1 1/2 | 48.26 |
| 2 | 60.33 |
| 1 1/4 | 42.16 |
| 3/4 | 26.67 |
| 1/2 | 21.34 |
| 20 | 508 |
| 22 | 558.8 |
| 16 | 406.4 |
| 12 | 323.9 |
| 24 | 609.6 |
| 18 | 457.2 |
| 14 | 355.6 |
| 8 | 219.1 |
| 10 | 273.1 |
| 6 | 168.3 |
| 4 | 114.3 |
| 5 | 141.3 |
| 3 1/2 | 101.6 |
| 2 1/2 | 73.03 |
| 1 | 33.4 |
ASME SA 210 condenser tube dimensions
ASME SA 210 condenser tube dimensions
| Outside Dia (OD) mm | Standard Length (m) | Wall Thickness (milimeter) |
|---|---|---|
| 31.8 | 6.0 - 12.0 | 2.1 |
| 38.1 | 6.0 - 12.0 | 2.5 |
| 25.4 | 6.0 - 12.0 | 2.0 |
| 44.5 | 6.0 - 12.0 | 2.8 |
| 50.8 | 6.0 - 12.0 | 3.0 |
| 63.5 | 6.0 - 12.0 | 3.2 |
SA 210 Grade A1 boiler tube price list
SA 210 Grade A1 boiler tube price list
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| ASTM A210 Grade A1 CS Boiler Tube, Size: 4 Inch | $ 1.05 | ₹ 90 |
| SA210 Grade A1 Boiler Tube, Size: 1 Inch | $ 2.10 | ₹ 180 |
sa 210 gr a1 chemical composition
sa 210 gr a1 chemical composition
| Grade | C | Si | Mn | P | S |
|---|---|---|---|---|---|
| A1 | 0.27 | 0.10 | Max 0.93 | 0.035 | 0.035 |
sa210 gr a1 mechanical properties
sa210 gr a1 mechanical properties
| Yield Strength | Tensile Strength | Elongation |
Hardness |
|---|---|---|---|
| ≥255 | ≥415 | ≥30 | ≤79 |
sa210 grade a1 equivalent
sa210 grade a1 equivalent
| Grade | Gr A1 |
|---|---|
| Brazilian | NBR 5592 |
| BS | 3602 |
| French | NF A 49-213 |
| EN | 10216-2 |
| Italian | 5462-64 |
| DIN | 17175 |
pressure rating of SA210 Gr A1 seamless boiler tube
pressure rating of SA210 Gr A1 seamless boiler tube
| Size | Pressure (ksi) |
|---|---|
| 4 | 1.2 |
| 3-1/2 | 1.2 |
| 6 | 1 |
| 3/4 | 0.7 |
| 1 | 0.7 |
| 1-1/4 | 1 |
| 5 | 1.2 |
| 8 | 0.8 |
| 1-1/2 | 1 |
| 2 | 1 |
| 2-1/2 | |
| 3 |
ASTM A210 Grade A1 finned boiler tube length tolerance
ASTM A210 Grade A1 finned boiler tube length tolerance
| OD in. (mm) | Length, in.(mm) | |
|---|---|---|
| Under (-) | Over (+) | |
| Under 2 (50.8) | 0 | 1 / 8 [3] |
| 2 (50.8) and over | 0 | 3 / 16 [5] |
| All Sizes | 0 | 3 / 16 [5] |
SA210 Gr A1 tubes testing
SA210 Gr A1 tubes testing
| Hardness Test | Tensile Test | Hydrostatic Test |
| Ultrasonic Test | Eddy Current Test | Flattening Test |
| Dimensional Check | Impact Test | Bend Test |
| Visual Inspection | Microstructure Examination |
Hydrostatic test pressures of SA 210 Gr A1 material
Hydrostatic test pressures of SA 210 Gr A1 material
| OD in. (mm) | Pressure, psi (MPa) |
|---|---|
| 11 / 2 - 2 (38.1 - 50.8), excl | 2000 (14) |
| 1 - 11 / 2 (25.4 - 38.1), excl | 1500 (10) |
| 2 - 3 (50.8 - 76.2), excl | 2500 (17) |
| Under 1 (25.4) | 1000 (7) |
SA 210 Grade A1 boiler tube weight chart
SA 210 Grade A1 boiler tube weight chart
| Size | Weight/ft | WT |
|---|---|---|
| 1 | 1.68 | 0.133 |
| 5 | 10.80 | 0.188 |
| 1 1/2 | 2.72 | 0.145 |
| 6 | 7.59 | 0.109 |
| 3/4 | 1.13 | 0.113 |
| 3 | 4.34 | 0.120 |
| 4 | 5.62 | 0.120 |
| 3 1/2 | 4.98 | 0.120 |
| 2 | 2.64 | 0.109 |
| 1 1/4 | 2.27 | 0.140 |
| 1/2 | 0.85 | 0.109 |
SA 210 A1 superheater tube thickness chart
SA 210 A1 superheater tube thickness chart
| OD in. (mm) | Tolerance % | |
|---|---|---|
| Under (-) | Over (+) | |
| Under 1 ½ (38.1) | 0 | 20 |
| Over 1½ (38.1) | 0 | 22 |
SA210 A1 boiler tube od tolerance
SA210 A1 boiler tube od tolerance
| OD in. (mm) | Variations in. (mm) | |
|---|---|---|
| Under (-) | Over (+) | |
| Over 11 / 2 - 2 (38.1 - 50.8), Excl | 0.008 (0.20) | 0.008 (0.20) |
| 1 - 1 ½ (25.4 - 38.1), Incl | 0.006 (0.15) | 0.006 (0.15) |
| 21 / 2 - 3 (63.5 - 76.2), Excl | 0.012 (0.30) | 0.012 (0.30) |
| 2 - 21 / 2 (50.8 - 63.5), Excl | 0.010 (0.25) | 0.010 (0.25) |
| Under 1 (25.4) | 0.004 (0.10) | 0.004 (0.10) |
Elongation of SA 210 Grade A1 heat exchanger tube
Elongation of SA 210 Grade A1 heat exchanger tube
| WT | Elongation |
|---|---|
| 1/8″ | 21 |
| 9/32″ | 28 |
| 1/4″ | 27 |
| 5/16″ | 30 |
| 1/16″ | 18 |
| 3/32″ | 20 |
| 3/16″ | 24 |
| 7/32″ | 26 |
| 5/32″ | 22 |
Dimensional tolerance of SA210A1 u tube heat exchanger
Dimensional tolerance of SA210A1 u tube heat exchanger
| Hot rolled | Tolerance (%) | OD (milimeter) |
|---|---|---|
| +35/-0 | OD ≤ 101.6, 2.4 ＜ WT ≤ 3.8 | |
| +28/-0 | OD ≤ 101.6, WT > 4.6 | |
| +33/-0 | OD ≤ 101.6, 3.8 ＜ WT ≤ 4.6 | |
| +40/-0 | OD ≤ 101.6, WT ≤ 2.4 | |
| +35/-0 | OD > 101.6, 2.4 ＜ WT ≤ 3.8 | |
| +28/-0 | OD > 101.6, WT > 4.6 | |
| +33/-0 | OD > 101.6, 3.8 ＜ WT ≤ 4.6 | |
| Cold Drawn | Tolerance (%) | OD (mm) |
| +22/-0 | OD > 38.1 | |
| +20/-0 | OD ≤ 38.1 |
Poisson’s ratio and shear modulus of SA210 Gr A1 tubes
Poisson’s ratio and shear modulus of SA210 Gr A1 tubes
| Shear Modulus | 73 GPa |
|---|---|
| Poisson’s Ratio | 0.29 |
