ISO Certified Manufacturer
Superior SS 304 PVD coated profiles
Specification of PVD coated stainless steel profiles
Specification of PVD coated stainless steel profiles
| SPECIFICATION | DETAILS |
|---|---|
| Material | 304/316 Stainless Steel |
| Color | Black, Bronze, Gold, Rose Gold |
| Size | 6mm to 100mm |
| Technique | Cold Rolled |
| Length | 5 - 10 Feet |
| Material Grade | SS304 | SS316 | SS202 |

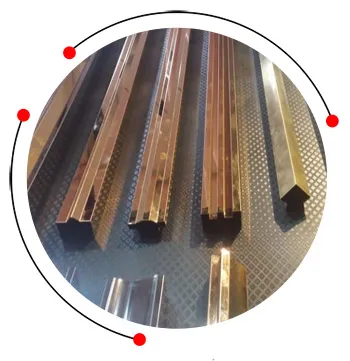

PVD coated stainless steel profiles

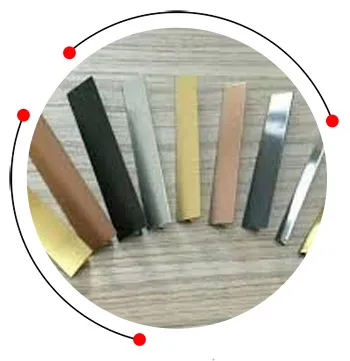

PVD coated ss profiles

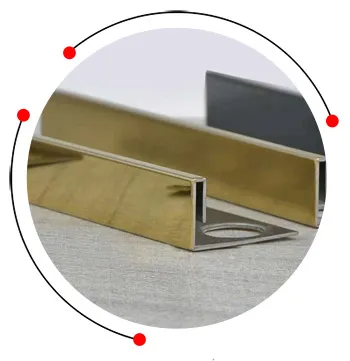

SS 304 PVD coated profiles

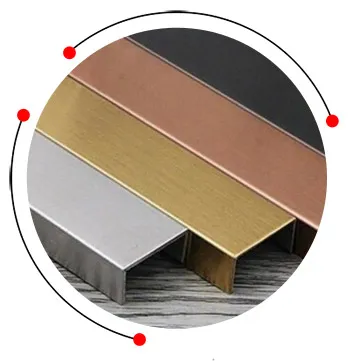

Stainless steel PVD coated profiles

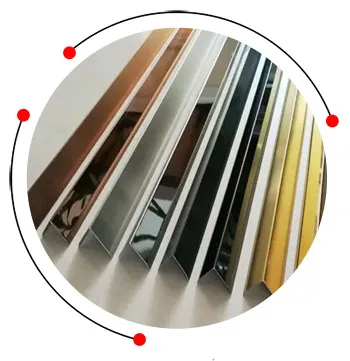

PVD-coated stainless steel trim

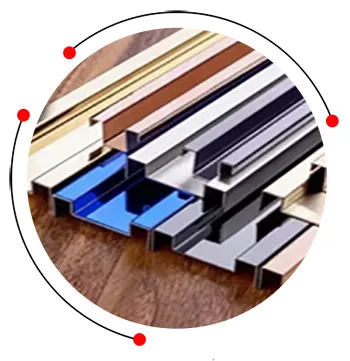

SS 316 PVD coated profile
SS 304 PVD coated profiles applications
- Furniture and cabinetry trims
- Elevator panels and frames
- Retail and showroom fixtures
- Hotel and office decor elements
- Interior wall and ceiling decoration
Weight chart of stainless steel PVD coated profiles
Weight chart of stainless steel PVD coated profiles
| Profile Type | Thickness (mm) | Approx. Weight (kg/m) | Width (mm) |
|---|---|---|---|
| T Profile | 1.0 | 1.05 | 20 |
| T Profile | 1.2 | 1.30 | 30 |
| Flat Bar | 1.0 | 1.55 | 20 |
| Flat Bar | 2.0 | 3.80 | 50 |
| Omega Profile | 1.0 | 1.10 | 25 |
| U Profile | 0.8 | 0.60 | 10 |
| Decorative T | 1.5 | 2.10 | 30 |
| U Profile | 1.0 | 0.85 | 15 |
| U Profile | 1.0 | 1.10 | 20 |
| L Profile | 1.2 | 1.20 | 25 |
| L Profile | 1.5 | 1.45 | 30 |
| Omega Profile | 1.2 | 1.60 | 40 |
| Flat Bar | 1.5 | 2.20 | 30 |
| Edge Trim | 0.8 | 0.65 | 12 |
| Edge Trim | 1.0 | 1.00 | 20 |
PVD-coated stainless steel trim features
- Customizable in size and color
- Eco-friendly and non-toxic
- Scratch and corrosion resistant
- Elegant and modern appearance
- Long-lasting color finish
SS 316 PVD coated profile surface finish
- Bead Blasted
- Mirror (No. 8)
- Brushed (No. 4)
- Hairline
SS PVD coated collar profile sizes
SS PVD coated collar profile sizes
| Profile Type | Thickness (mm) | Height (mm) | Width (mm) | Length (mm) |
|---|---|---|---|---|
| T Profile | 1.2 | 20 | 30 | 3050 |
| Flat Bar | 1.0 | — | 20 | 4000 |
| Flat Bar | 1.5 | — | 30 | 3050 |
| U Profile | 1.0 | 15 | 15 | 3050 |
| U Profile | 1.0 | 20 | 20 | 3050 |
| Flat Bar | 2.0 | — | 50 | 2440 |
| Omega Profile | 1.0 | 15 | 25 | 3050 |
| Omega Profile | 1.2 | 20 | 40 | 2440 |
| U Profile | 0.8 | 10 | 10 | 2440 |
| L Profile | 1.2 | 25 | 25 | 2440 |
| L Profile | 1.5 | 30 | 30 | 3050 |
| T Profile | 1.0 | 15 | 20 | 3050 |
| Edge Trim | 0.8 | 12 | 12 | 2440 |
| Edge Trim | 1.0 | 20 | 20 | 3050 |
| Decorative T | 1.5 | 15 | 30 | 4000 |
Color option of PVD coating stainless steel profile
- Black
- Gold
- Bronze
- Blue
- Copper
- Rose Gold
- Champagne
PVD finish stainless steel profile chemical composition
PVD finish stainless steel profile chemical composition
| Element | SS 304 (%) | SS 316 (%) |
|---|---|---|
| Mo | – | 2.0 – 3.0 |
| Mn | ≤ 2.0 | ≤ 2.0 |
| Cr | 18.0 – 20.0 | 16.0 – 18.0 |
| Ni | 8.0 – 10.5 | 10.0 – 14.0 |
| C | ≤ 0.08 | ≤ 0.08 |
PVD coated stainless steel profiles mechanical properties
PVD coated stainless steel profiles mechanical properties
| Property | SS 304 | SS 316 |
|---|---|---|
| Yield Strength (MPa) | 205 min | 205 min |
| Tensile Strength (MPa) | 515–750 | 515–750 |
| Elongation (%) | ≥ 40% | ≥ 40% |
Equivalent grades of PVD coated ss profiles
Equivalent grades of PVD coated ss profiles
| Standard | SS 304 | SS 316 |
|---|---|---|
| UNS | S30400 | S31600 |
| JIS | SUS304 | SUS316 |
| EN/DIN | 1.4301 | 1.4401 |
