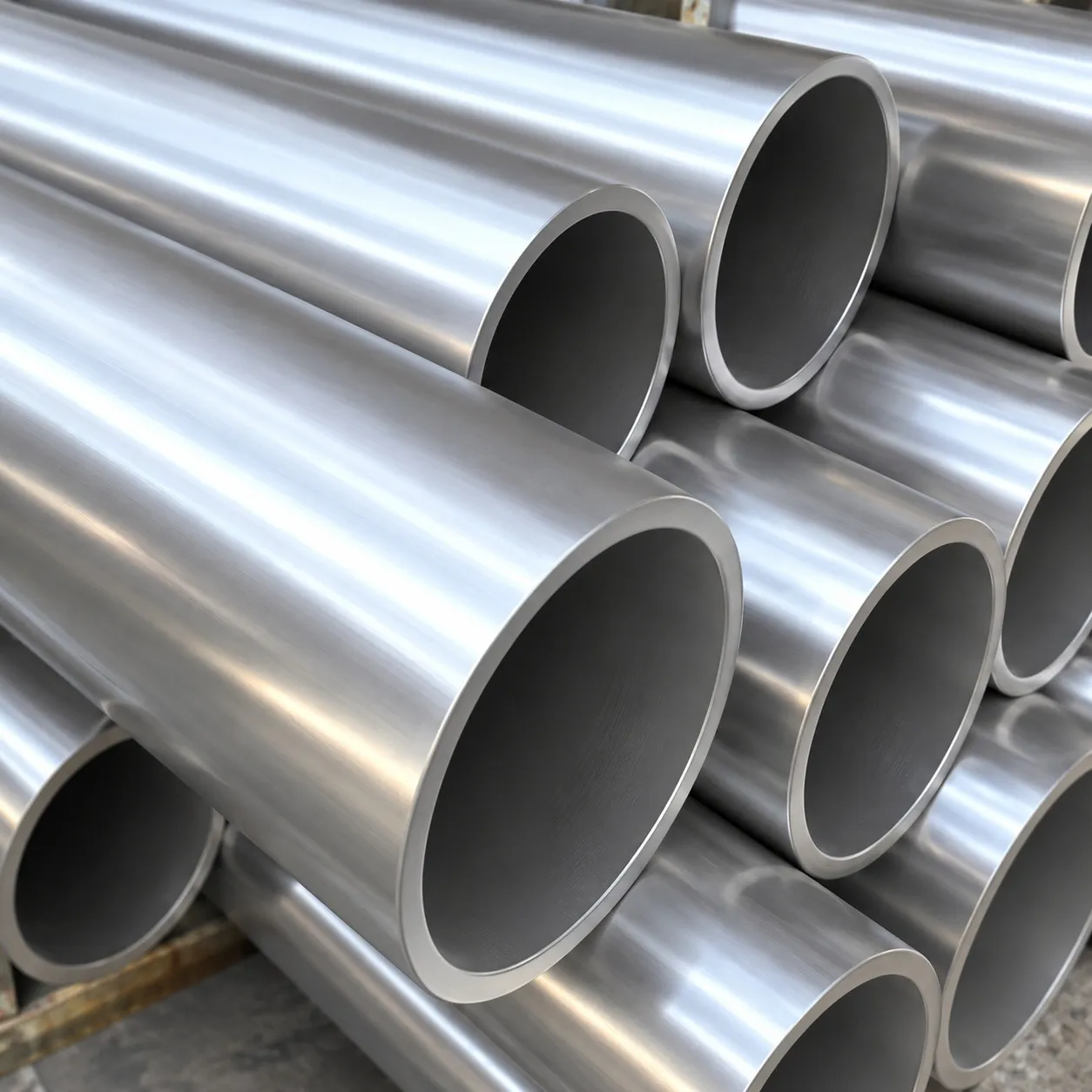

Nickel Alloy 200 Pipe

ISO Certified Manufacturer

Nickel Alloy 200 Tube

Nickel Alloy 200 Tube is a commercially pure nickel product known for its good resistance to caustic alkalis and several corrosive environments, along with useful electrical, thermal, and mechanical properties. It is commonly identified as Nickel 200, UNS N02200, and is used in chemical processing, electronics, food processing, marine-related equipment, and other industrial applications where commercially pure nickel is appropriate.

Spark Steel supplies Nickel Alloy 200 Tube for applications requiring corrosion-resistant nickel tubing. Product selection should consider the operating medium, temperature, pressure, dimensions, manufacturing method, and applicable material specification.

20+

Years of Experience

50+

Grades in Stock

1/8"–2–4"

Size Range

100%

Quality Tested

Nickel 200 pipe specification

SPECIFICATION	DETAILS
Seamless pipe sizes	Outside Diameter: 4- 219 mm, Wall Thickness:0.5-20 mm
Welded pipe sizes	Outside Diameter: 5 - 1219 mm, Wall Thickness: 1.0 - 15 mm
EFW pipe sizes	Outside Diameter: 5- 1219 mm, Wall Thickness: 1-15 mm
Services	Beveling, Welding, Threading
Form	Round, Hydraulic
End	End, Beveled, Treaded

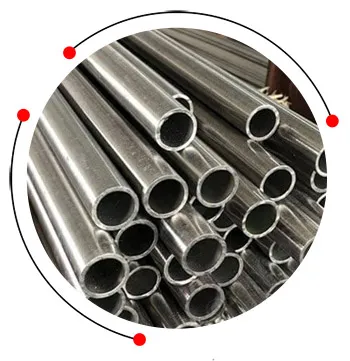

Nickel 200 pipe

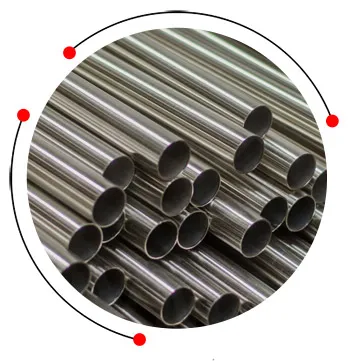

Astm B161 Alloy 200 seamless pipe

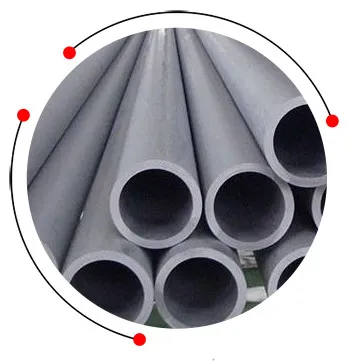

ASME SA161 UNS N02200 welded pipe

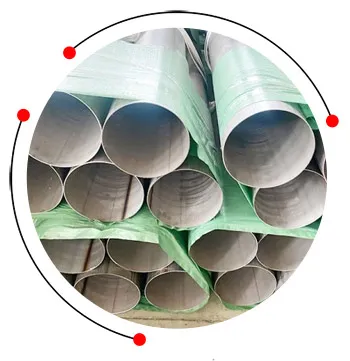

Pure 200 Nickel EFW pipe

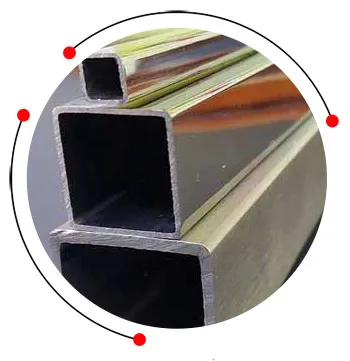

Alloy UNS No 2200 square pipes

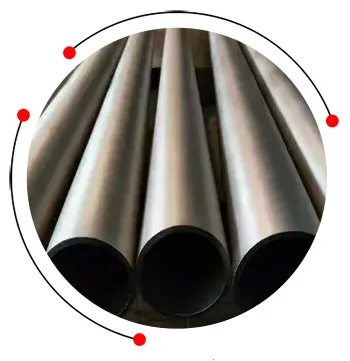

Ni Grade 200 ERW pipe

Price list of Alloy 200 pipe

Description	Price in USD	Price in Kilogram (INR)
3 inch Nickel Alloy 200 Pipes	$ 58.11	₹ 5,000
Round Alloy 200 Pipes, Size: 1-2	$ 46.49	₹ 4,000
3 inch Nickel 200 pipe	$ 23.24	₹ 2,000

ASME SA161 UNS N02200 welded pipe mechanical properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Alloy UNS NO 2200 square pipes equivalent grades

STANDARD	UNS	AFNOR	EN	WERKSTOFF NR.	JIS	GOST	BS
Nickel 200	N02200	N-100M	Ni 99.2	2.4066	NW 2200	НП-2	NA 11

Ni Grade 200 ERW pipe chemical comosition

Nickel 200	Ni	Mn	Si	C	Mo	Fe	P	Cu	S
Nickel 200	99.0 min	0.35 min	0.1 maximum	0.15 maximum	–	0.4 min	–	0.25 min	0.01 maximum

Dimensions of Alloy 200 pipe

Nominal Pipe Size (NPS)	Wall Thickness (in)	Outer Diameter (OD)	Schedule	Inner Diameter (ID)
1-1/2"	0.145"	1.900"	10	1.610"
	0.200"		40	1.500"
	0.281"		80	1.338"
1/8"	0.049"	0.405"	10	0.307"
	0.068"		40	0.269"
	0.095"		80	0.215"
1/4"	0.065"	0.540"	10	0.410"
	0.088"		40	0.364"
	0.119"		80	0.302"
1/2"	0.083"	0.840"	10	0.674"
	0.109"		40	0.622"
	0.147"		80	0.546"
1"	0.109"	1.315"	10	1.097"
	0.133"		40	1.049"
	0.179"		80	0.957"
2"	0.154"	2.375"	10	2.067"
	0.218"		40	1.939"
	0.307"		80	1.811"
3"	0.216"	3.500"	10	3.068"
	0.300"		40	2.900"
	0.438"		80	2.624"

Pure 200 nickel EFW pipe sizes

OD mm	Pipe WT mm	Sch	in.	Kg/m
33.40	6.352)	160	1	4.30
42.16	2.77	10S	1¼	2.73
42.16	3.56	40S	1¼	3.44
42.16	4.85	80S	1¼	4.53
42.16	6.352)	160	1¼	5.69
48.26	2.77	10S	1½	3.16
48.26	3.68	40S	1½	4.11
48.26	5.08	80S	1½	5.49
60.33	2.77	10S	2	3.99
60.33	3.91	40S	2	5.52
60.33	5.54	80S	2	7.60
60.33	8.742)	160	2	11.29
73.03	3.05	10S	2½	5.35
73.03	5.16	40S	2½	8.77
73.03	7.01	80S	2½	11.59
88.90	3.05	10S	3	6.56
88.90	5.49	40S	3	11.47
88.90	7.62	80S	3	15.51
13.72	1.65	10S	1/4	0.50
13.72	2.24	40S	1/4	0.64
13.72	3.02	80S	1/4	0.81
17.15	1.65	10S	3/8	0.64
17.15	2.31	40S	3/8	0.86
17.15	3.20	80S	3/8	1.12
21.34	2.11	10S	1/2	1.02
21.34	2.77	40S	1/2	1.29
21.34	3.73	80S	1/2	1.65
26.67	2.11	10S	3/4	1.30
26.67	2.87	40S	3/4	1.71
26.67	3.91	80S	3/4	2.23
33.40	2.77	10S	1	2.13
33.40	3.38	40S	1	2.54
33.40	4.55	80S	1	3.29
88.90	11.132)	160	3	21.67
101.60	3.05	10S	3½	7.53
101.60	5.74	40S	3½	13.78
101.60	8.08	80S	3½	18.92
114.30	3.05	10S	4	8.50
114.30	6.02	40S	4	16.32
114.30	8.56	80S	4	22.67
114.30	13.492)	160	4	34.05
141.30	6.55	40S	5	22.10
141.30	9.53	80S	5	31.44
141.30	15.882)	160	5	49.87
168.28	3.4	10S	6	14.04
168.28	7.11	40S	6	28.69
168.28	10.97	80S	6	43.21
168.28	14.27	120	6	54.75
168.28	18.262)	160	6	68.59
219.08	8.18	40S	8	43.20
219.08	12.7	80S	8	65.63
219.08	18.23	120	8	91.30
219.08	23.012)	160	8	112.97

Nickel alloy 200 pipe thermal properties

Temperature	Thermal Conductivity	Electrical Resistivity	Coefficient of Expansiona
°F	Btu•in/ft2•h•°F	ohm•circ mil/ft	10-6 in/in•°F
400	426	113	7.7
200	463	76	7.4
600	389	164	8.0
1000	404	228	8.5
2000	–	323	9.5
-300	–	16	5.8
-423	–	–	4.7
-200	533	26	6.2
0	499	48	–
-100	516	36	6.3
70	487	58	–
800	389	204	8.3
1200	421	248	8.7
1600	455	289	9.1
1400	437	269	8.9
1800	472	306	9.3

Schedule chart of Ni-200 exhaust pipe

Nominal Pipe Size (NPS)	Outer Diameter (OD)	Wall Thickness	Schedule	Inner Diameter (ID)
1/2"	0.840"	0.065"	5	0.710"
		0.083"	10	0.674"
		0.109"	40	0.622"
		0.147"	80	0.546"
		0.187"	160	0.466"
		0.294"	XXH	0.252"
3/4"	1.050"	0.083"	10	0.884"
		0.113"	40	0.824"
		0.154"	80	0.742"
		0.218"	160	0.614"
		0.308"	XXH	0.434"
1/8"	0.405"	0.049"	10	0.307"
		0.068"	40	0.269"
		0.095"	80	0.215"
1/4"	0.540"	0.065"	10	0.410"
		0.088"	40	0.364"
		0.119"	80	0.302"
3/8"	0.675"	0.065"	10	0.545"
		0.091"	40	0.493"
		0.126"	80	0.423"
1"	1.315"	0.109"	5	1.097"
		0.133"	10	1.049"
		0.179"	40	0.957"
		0.250"	80	0.815"
		0.358"	160	0.599"
		0.358"	XXH	0.599"
1-1/4"	1.660"	0.140"	10	1.380"
		0.191"	40	1.278"
		0.250"	80	1.160"
		0.382"	160	0.896"
		0.382"	XXH	0.896"
2-1/2"	2.875"	0.203"	10	2.469"
		0.276"	40	2.323"
		0.375"	80	2.125"
		0.552"	160	1.771"
		0.552"	XXH	1.771"
3"	3.500"	0.125"	5	3.250"
		0.250"	10	3.000"
		0.300"	40	2.900"
		0.438"	80	2.624"
		0.600"	160	2.300"
		0.600"	XXH	2.300"
1-1/2"	1.900"	0.145"	10	1.610"
		0.200"	40	1.500"
		0.281"	80	1.338"
		0.400"	160	1.100"
		0.400"	XXH	1.100"
2"	2.375"	0.109"	5	2.157"
		0.154"	10	2.067"
		0.218"	40	1.939"
		0.307"	80	1.811"
		0.436"	160	1.503"
		0.436"	XXH	1.503"
3-1/2"	4.000"	0.226"	10	3.548"
		0.318"	40	3.364"
		0.438"	80	3.124"

Nickel 2.4066 hexagonal pipes hs code

Material	HS code
Nickel 200	75071200

Reactors and vessels
Marine and offshore engineering
Combustion boats
Caustic evaporators
Salt production
Food processing equipment

Physical properties of Nickel 200 ERW pipe

Modulus of Elasticity	Coefficient of Expansion	Density	Melting Point	Modulus of Rigidity
204 kN/mm²	13.3 μm/m °C (20 - 100 °C)	8.89 g/cm³	1446 °C	81 kN/mm²
29588 ksi	7.4 x 10-6 in/in °F (70 - 212 °F)	0.321 lb/in³	2635 °F	11748 ksi

Flattening Test
Micro and MacroTest
Positive Material Identification – PMI Testing
Intergranular Corrosion (IGC) Test
Chemical Analysis – Spectro Analysis
Pitting Resistance Test
Flaring Test
Hardness Test

Nickel alloy 200 thick wall pipe weight chart

NPS	Wall Thickness		Outside Diameter			Weight	Weight
NPS	in	mm	in	mm	Sched	Lb/ft	Lb/ft
1/2″	0.109	2.769	0.840	21	40 STD	0.851	0.851
	0.147	3.734			80 STD	1.088	1.088
3/4″	0.113	2.870	1.050	27	40 STD	1.131	1.131
	0.154	3.912			80 STD	1.474	1.474
1″	0.133	3.378	1.315	33	40 STD	1.679	1.679
	0.179	4.547			80 STD	2.172	2.172
1 1/4″	0.140	3.556	1.660	42	40 STD	2.273	2.273
	0.191	4.851			80 STD	2.997	2.997
1 1/2″	0.145	3.683	1.900	48	40 STD	2.718	2.718
	0.200	5.080			80 STD	3.361	3.361
2″	0.154	3.912	2.375	60	40 STD	3.653	3.653
	0.218	5.537			80 STD	5.022	5.022
2 1/2″	0.203	5.516	2.875	73	40 STD	5.793	5.793
	0.276	7.010			80 STD	7.661	7.661
3″	0.216	5.486	3.500	89	40 STD	7.576	7.576
	0.300	7.620			80 STD	10.253	10.253
4″	0.237	6.020	4.500	114		10.790	10.790
	0.337	8.560				14.983	14.983
6″	0.188	4.775	6.625	168		12.924	12.924
	0.203	5.516				13.923	13.923
	0.219	5.563				14.983	14.983
	0.250	6.350				17.021	17.021
	0.280	7.112			40 STD	18.974	18.974
	0.312	7.925				21.036	21.036
	0.375	9.525				25.031	25.031
	0.432	10.973			80 XHY	28.573	28.573
	0.500	12.700				32.708	32.708
8″	0.188	4.775	8.625	219		16.940	16.940
	0.203	5.156				18.259	18.259
	0.219	5.563				19.661	19.661
	0.250	6.350			20	22.361	22.361
	0.277	7.036			30	24.696	24.696
	0.322	8.179			40	28.554	28.554
	0.375	9.525				33.041	33.041
	0.406	10.312			60	35.638	35.638
	0.500	12.700			80 XHY	43.388	43.388
10″	0.188	4.775	10.750	273		21.207	21.207
	0.219	5.563				24.631	24.631
	0.250	6.350			20	28.035	28.035
	0.307	7.798			30	34.240	34.240
	0.344	8.738				38.231	38.231
	0.365	9.271			40 STD	40.483	40.483
	0.438	11.125				48.238	48.238
	0.500	12.700			60 XHY	54.735	54.735
	0.594	15.088			80	64.429	64.429
12″	0.188	4.775	12.750	324		25.222	25.222
	0.219	5.563				29.309	29.309
	0.250	6.350				33.375	33.375
	0.281	7.137				37.420	37.420
	0.312	7.925				41.445	41.445
	0.375	9.525				49.562	49.562
	0.406	10.312				53.525	53.525
	0.500	12.700				65.415	65.415
	0.562	14.275				73.154	73.154
14″	0.188	4.775	14.000	356		27.732	27.732
	0.219	5.563				32.233	32.233
	0.250	6.350			20	36.713	36.713
	0.281	7.137				41.172	41.172
	0.312	7.925				45.611	45.611
	0.375	9.525			STD	54.568	54.568
	0.438	11.125			40	63.441	63.441
	0.500	12.700			XHY	72.090	72.090
	0.625	15.875				89.278	89.278
16”	0.188	4.775	16.000	406		21.748	21.748
	0.219	5.563				36.910	36.910
	0.250	6.350			10	42.053	42.053
	0.281	7.137				47.174	47.174
	0.312	7.925			20	52.275	52.275
	0.344	8.738				57.519	57.519
	0.375	9.525			30 STD	62.578	62.578
	0.438	11.125				72.797	72.797
	0.500	12.700			40 XHY	82.770	82.770
18″	0.219	5.563	18.000	457		41.588	41.588
	0.250	6.350				47.393	47.393
	0.281	7.137				53.176	53.176
	0.312	7.925			20	58.939	58.939
	0.375	9.525			STD	70.588	70.588
	0.438	11.125			30	82.152	82.152
	0.500	12.700			XHY	93.450	93.450
	0.562	14.275			40	104.666	104.666
	0.625	15.875				115.978	115.978
20″	0.250	6.350	20.000	508		52.733	52.733
	0.282	7.163				59.386	59.386
	0.312	7.925				65.604	65.604
	0.375	9.525			20 STD	78.598	78.598
	0.438	11.125				91.508	91.508
	0.500	12.700			30 XHY	104.130	104.130
	0.594	15.088			40	123.110	123.110
	0.625	15.875				129.328	129.328
	0.688	17.475				141.901	141.901
24″	0.250	6.350	24.000	610		63.413	63.413
	0.281	7.137				71.183	71.183
	0.312	7.925				18.932	18.932
	0.375	9.525			20 STD	64.618	64.618
	0.438	11.125				110.219	110.219
	0.500	12.700			XHY	125.490	125.490
	0.625	15.875				156.028	156.028
	0.688	17.475			40	171.293	171.293
	0.750	19.050				186.233	186.233
36″	0.250	6.350	36.000	914		95.453	95.453
	0.281	7.137				107.196	107.196
	0.312	7.925			10	118.918	118.918
	0.375	9.525			STD	142.678	142.678
	0.438	11.125				166.353	166.353
	0.500	12.700			20 XHY	198.570	198.570
	0.625	15.875				236.128	236.128
	0.688	17.475				259.467	259.467
	0.750	19.050				282.353	282.353
30″	0.250	6.350	30.000	762		79.433	79.433
	0.281	7.137				89.189	89.189
	0.312	7.925			10	98.925	98.925
	0.375	9.525			STD	118.648	118.648
	0.438	11.125				138.286	138.286
	0.500	12.700			20 XHY	157.530	157.530
	0.625	15.875			30	196.078	196.078
	0.688	17.475				215.380	215.380
	0.750	19.050				234.293	234.293
42″	0.312	7.925	42.000	1067		138.911	138.911
	0.375	9.525			STD	166.708	166.708
	0.500	12.700			XHY	221.610	221.610
	0.750	19.050				330.413	330.413
48″	0.375	9.525	48.000	1219	STD	190.738	190.738
	0.438	11.125				222.487	222.487
	0.500	12.700			XHY	253.650	253.650
	0.750	19.050				378.473	378.473
	0.875	22.225				440.383	440.383

Pickled
Polished
Bright Annealed
Mill
Annealed

Pressure rating of Alloy 200 hollow pipe

Pipes O.D. (in.)	Wall Thickness of Pipes (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
3/8		3100	4400	6100
1/2		2300	3200	4400
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

ASTM B 730
DIN 17740
ASTM B 725
ASME SB-160 - SB-163
DIN 17750-17754
BS 3072-3076
ASTM B 160 - B 163

UNS N02200 bright annealed pipe modulus of elasticity

Poisson’s Ratio	Young’s Modulus	Shear Modulus	Temperature	Poisson’s Ratio	Young’s Modulus	Shear Modulus	Temperature
Poisson’s Ratio	103 ksi	103 ksi	°F	Poisson’s Ratio	GPa	GPa	°C
0.29	28.3	11.00	400	0.29	195	75.8	200
0.29	27.4	10.66	600	0.29	190	73.8	300
0.29	29.7	11.55	78	0.29	205	79.6	26
0.29	29.1	11.30	200	0.28	200	77.9	100
0.29	26.4	10.27	800	0.28	183	71.4	400
0.29	25.2	9.80	1000	0.28	177	69.0	500

What Is Nickel Alloy 200 Tube?

Nickel 200 is a commercially pure wrought nickel alloy containing a high proportion of nickel with small amounts of other elements. Its combination of corrosion resistance, thermal conductivity, electrical conductivity, and mechanical properties makes it useful in a range of industrial applications.

The material is commonly designated as:

Nickel 200
Alloy 200
UNS N02200
Nickel Alloy 200

Nickel 200 Tube is supplied in tubular form and may be selected when the application requires the characteristics of commercially pure nickel.

Nickel Alloy 200 Welded Tube

Nickel 200 can also be supplied in welded tubular products where the applicable specification permits and the required dimensions are available.

Welded tube may be considered where dimensional requirements, manufacturing economics, or project specifications make welded construction appropriate.

For critical service, the purchaser should clearly define:

Welding requirements
Heat treatment
Inspection
Testing
Dimensional tolerances
Applicable material standard

Applications of Nickel Alloy 200 Tube

Nickel Alloy 200 Tube is used in several industries where commercially pure nickel provides suitable corrosion and material performance.

Chemical Processing
Used in selected chemical-processing equipment and piping systems, particularly where resistance to caustic environments is required.

Caustic Handling
Nickel 200 is commonly considered for applications involving sodium hydroxide and other caustic alkali environments under suitable conditions.

Food Processing
Nickel 200 can be considered for selected food-processing equipment because of its corrosion-resistant characteristics and commercially pure nickel composition.

Electronics and Electrical Applications
Its electrical and thermal conductivity can make Nickel 200 useful in selected electrical and electronic applications.

Marine Applications
Nickel 200 may be used in certain marine-related equipment depending on the specific exposure conditions and engineering requirements.

Chemical Storage and Handling
Used in selected tanks, vessels, piping, and process equipment where the material's corrosion resistance is appropriate.

Common Nickel 200 Tube Applications

Chemical processing equipment
Caustic handling systems
Food-processing equipment
Chemical storage
Process tubing
Heat exchangers
Evaporators
Electrical and electronic components
Marine-related equipment
Industrial process equipment

Nickel Alloy 200 Tube Dimensions

Nickel 200 Tube dimensions are normally specified according to the intended application.

Important parameters include:

Outside Diameter (OD)
Inside Diameter (ID)
Wall Thickness
Tube Length
Straight or coiled form
Seamless or welded construction
End condition

For example, a tubing requirement may specify:

OD × Wall Thickness × Length

The required dimensions should be confirmed against the applicable ASTM/ASME specification and project design.

Nickel 200 Tube Standards

Depending on the product form and application, Nickel 200 tubing may be ordered to an applicable material/product specification.

The purchaser should confirm:

Applicable ASTM specification
ASME requirements where applicable
Manufacturing method
Heat-treatment condition
Mechanical properties
Chemical composition
Testing requirements
Dimensional tolerances

The applicable standard should be selected based on the exact product form and service requirements rather than using a generic specification.

Why Choose Spark Steel for Nickel Alloy 200 Tube?

Spark Steel supplies stainless steel and specialty metal products for industrial requirements.

For Nickel Alloy 200 Tube enquiries, customers can discuss:

Nickel 200 / UNS N02200 requirements
Tube dimensions
Seamless or welded construction
Quantity
Material specification
Testing and inspection
Certification
Delivery requirements

Exact product availability, dimensions, certifications, and lead time should be confirmed with Spark Steel before ordering.

Nickel 200 Pipe

Nickel 200 Pipe is a closely related search term for products manufactured from Nickel 200 / UNS N02200. Unlike tubing, pipe is generally specified according to nominal pipe size and wall thickness or schedule.

Nickel 200 Pipe may be considered for suitable chemical-processing and caustic-service applications where the properties of commercially pure nickel are appropriate.

If Spark Steel has a dedicated Nickel 200 Pipe product page, this tube page should link to it rather than attempting to rank two pages for exactly the same search intent.

Frequently Asked Questions About Nickel Alloy 200 Tube

Nickel Alloy 200 Tube is tubular material manufactured from commercially pure Nickel 200, commonly identified by UNS N02200.

Nickel 200 is a commercially pure wrought nickel alloy with nickel as its predominant constituent and controlled levels of other elements.

Nickel 200 is used in chemical processing, caustic handling, food processing, electrical/electronic applications, and selected industrial equipment.

Nickel 200 is known for good resistance to caustic alkalis under suitable service conditions. Actual suitability depends on concentration, temperature, stress, and other operating factors.

Yes. Nickel 200 is commonly referred to as Alloy 200 and is identified as UNS N02200.

Yes, Nickel 200 provides useful corrosion resistance in several environments, particularly selected caustic and reducing conditions. Suitability must be evaluated against the actual process environment.

Nickel 200 can generally be welded using appropriate procedures and compatible welding materials.

Nickel 201 has a lower carbon content than Nickel 200 and is often selected where exposure to elevated temperatures makes low-carbon nickel desirable. The correct grade depends on service conditions.

Ready to place an order?

We supply premium quality steel products for every industrial application. Call us or send an enquiry and our team will respond within 24 hours.

Send Enquiry Call Now
