ASTM B167 Alloy 600 seamless pipe
Specification of Inconel 600 pipe
Specification of Inconel 600 pipe
| SPECIFICATION | DETAILS |
|---|---|
| Seamless pipe size | 4 to 219mm |
| Welded pipe size | 5.0 - 1219.2 mm |
| Forms | Hydraulic, Round |
| ASTM Specification | ASTM B 829 ASME SB 829 / ASME SB 167 ASTM B 167 / ASTM B 517 ASME SB 517 |
| Schedule | SCH160, SCH5, SCH10, SCH40, STD, SCH80 |
| Type | Welded / Fabricated / Seamless / ERW /LSAW |

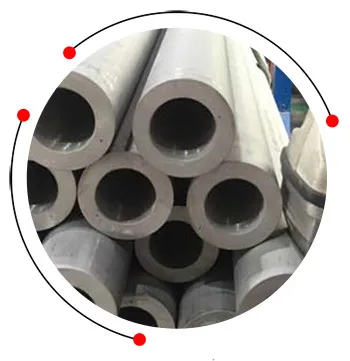

Inconel 600 pipe

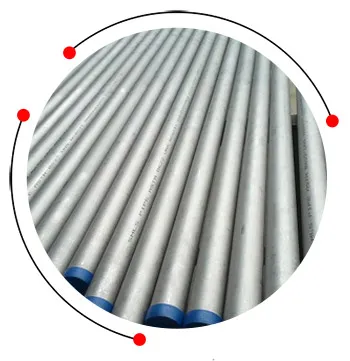

ASTM B167 Alloy 600 seamless pipe

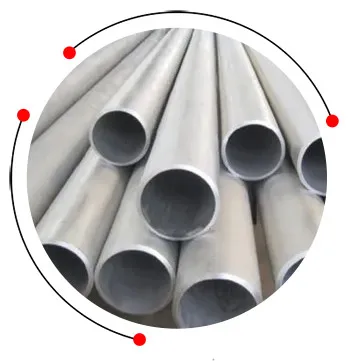

Nickel Alloy 600 ERW pipe

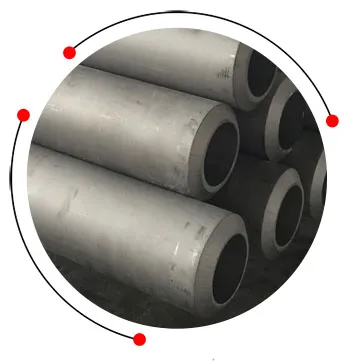

ASTM B167 UNS N06600 welded pipe

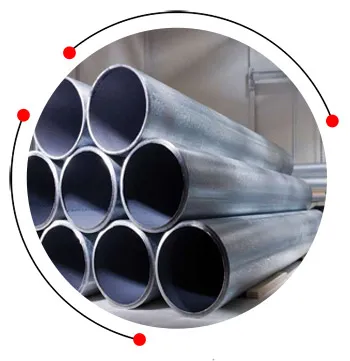

ASTM B516 DIN 2.4816 hot rolled pipes

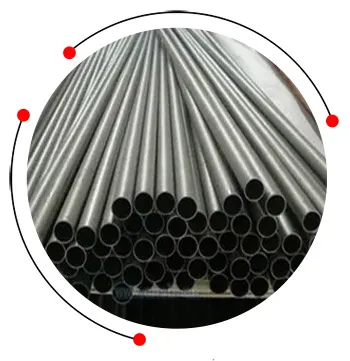

UNS N06600 round pipe
Size chart of Nickel Alloy 600 ERW pipe
Size chart of Nickel Alloy 600 ERW pipe
| Size (in.) | WT (in.) | OD (mm) | OD (in.) | WT (mm) |
|---|---|---|---|---|
| 2" | 0.154 | 60.3 | 2.375 | 3.91 |
| 1 1 / 2" | 0.145 | 48.3 | 1.9 | 3.68 |
| 1 1 / 4" | 0.14 | 42.2 | 1.66 | 3.56 |
| 1" | 0.133 | 33.4 | 1.32 | 3.38 |
| 3/4" | 0.113 | 26.7 | 1.05 | 2.88 |
| 1 / 2" | 0.109 | 21.3 | 0.84 | 2.77 |
| 3/8" | 0.091 | 17.1 | 0.68 | 2.31 |
| 20" | 0.594 | 508.0 | 20.0 | 15.09 |
| 18" | 0.562 | 457.0 | 18.0 | 14.27 |
| 16" | 0.5 | 406.4 | 16.0 | 12.7 |
| 14" | 0.437 | 355.6 | 14.0 | 11.13 |
| 12" | 0.406 | 323.8 | 12.75 | 10.31 |
| 10" | 0.365 | 273.0 | 10.75 | 9.27 |
| 8" | 0.322 | 219.1 | 8.625 | 8.18 |
| 6" | 0.28 | 168.3 | 6.625 | 7.11 |
| 5" | 0.258 | 141.3 | 5.563 | 6.55 |
| 4" | 0.237 | 114.3 | 4.5 | 6.02 |
| 3 1 / 2" | 0.226 | 101.6 | 4.0 | 5.74 |
| 3" | 0.216 | 88.9 | 3.5 | 5.49 |
| 2 1 / 2" | 0.203 | 73.0 | 2.885 | 5.16 |
| 1 / 4" | 0.088 | 13.7 | 0.54 | 2.24 |
| 1/8" | 0.068 | 10.3 | 0.41 | 1.73 |
Temperature range of ASTM B167 UNS N06600 welded pipe
Temperature range of ASTM B167 UNS N06600 welded pipe
| Parameter | Range |
|---|---|
| Temperature Range | (-320°F to 2000°F) -196°C to 1093°C |
Inconel 600 seamless pipe pressure rating
Inconel 600 seamless pipe pressure rating
| OD (In.) |
Wall Thickness (Inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .065 | .035 | .028 | .049 | .095 | .083 | .120 | .109 | |
| Working Pressure | ||||||||
| 5/16 | 7300 | 3700 | 5400 | |||||
| 3/4 | 3000 | 2200 | 4600 | 4000 | ||||
| 1 / 4 | 9500 | 4800 | 3700 | 7000 | ||||
| 1/8 | 10100 | 7900 | ||||||
| 3/8 | 6100 | 3100 | 4400 | |||||
| 1 / 2 | 4400 | 2300 | 3200 | |||||
| 1 | 2200 | 3400 | 2900 | 4300 | 3900 | |||
ASTM B516 DIN 2.4816 hot rolled pipes dimensions
ASTM B516 DIN 2.4816 hot rolled pipes dimensions
| Pipe Size (in) |
Diameter (in) MM |
Number of Threads per inch of Screw | Nominal Thickness (in) MM |
Length of Pipe (ft per sq. foot of surface) |
Transverse Areas (in2) MM2 |
Volume (ft3/ft) |
Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | Internal | External Surface (ft) |
Internal Surface (ft) |
External | Internal | Steel | (lb/ft) | (kg/m) | ||||
| 2 ½ | 2.875 | 2.47 | 8 | 0.20 | 1.33 | 1.55 | 6.49 | 4.79 | 1.70 | 0.0333 | 5.79 | 8.62 |
| 3 | 3.500 | 3.07 | 8 | 0.22 | 1.09 | 1.25 | 9.62 | 7.39 | 2.23 | 0.0513 | 7.58 | 11.27 |
| 3 ½ | 4.000 | 3.55 | 8 | 0.23 | 0.95 | 1.08 | 12.56 | 9.89 | 2.68 | 0.0687 | 9.11 | 13.56 |
| 4 | 4.500 | 4.03 | 8 | 0.24 | 0.85 | 0.95 | 15.90 | 12.73 | 3.17 | 0.0884 | 10.79 | 16.06 |
| 5 | 5.563 | 5.05 | 8 | 0.26 | 0.69 | 0.76 | 24.30 | 20.00 | 4.30 | 0.1389 | 14.61 | 21.74 |
| 6 | 6.625 | 6.07 | 8 | 0.28 | 0.58 | 0.63 | 34.47 | 28.89 | 5.58 | 0.2006 | 18.97 | 28.23 |
| 8 | 8.625 | 7.98 | 8 | 0.32 | 0.44 | 0.48 | 58.42 | 50.02 | 8.40 | 0.3552 | 28.55 | 42.49 |
| 1/8 | 0.405 | 0.27 | 27 | 0.07 | 9.43 | 14.20 | 0.13 | 0.06 | 0.07 | 0.0004 | 0.24 | 0.36 |
| ¼ | 0.540 | 0.36 | 18 | 0.09 | 7.07 | 10.49 | 0.23 | 0.10 | 0.13 | 0.0007 | 0.42 | 0.63 |
| 3/8 | 0.675 | 0.49 | 18 | 0.09 | 5.66 | 7.75 | 0.36 | 0.19 | 0.17 | 0.0013 | 0.57 | 0.84 |
| ½ | 0.840 | 0.62 | 14 | 0.11 | 4.55 | 6.14 | 0.55 | 0.30 | 0.25 | 0.0021 | 0.85 | 1.26 |
| ¾ | 1.050 | 0.82 | 14 | 0.11 | 3.64 | 4.64 | 0.87 | 0.53 | 0.33 | 0.0037 | 1.13 | 1.68 |
| 1 | 1.315 | 1.05 | 11 ½ | 0.13 | 2.90 | 3.64 | 1.36 | 0.86 | 0.49 | 0.0060 | 1.68 | 2.50 |
| 1 ¼ | 1.660 | 1.38 | 11 ½ | 0.14 | 2.30 | 2.77 | 2.16 | 1.50 | 0.67 | 0.0104 | 2.27 | 3.38 |
| 1 ½ | 1.900 | 1.61 | 11 ½ | 0.15 | 2.01 | 2.37 | 2.84 | 2.04 | 0.80 | 0.0141 | 2.72 | 4.04 |
| 2 | 2.375 | 2.07 | 11 ½ | 0.15 | 1.61 | 1.85 | 4.43 | 3.36 | 1.08 | 0.0233 | 3.65 | 5.43 |
| 10 | 10.750 | 10.02 | 8 | 0.37 | 0.36 | 0.38 | 90.76 | 78.85 | 11.90 | 0.5476 | 40.48 | 60.24 |
| 12 | 12.750 | 11.94 | 8 | 0.41 | 0.30 | 0.32 | 127.64 | 111.90 | 15.74 | 0.7763 | 53.60 | 79.77 |
| 14 | 14.000 | 13.13 | 8 | 0.44 | 0.27 | 0.28 | 153.94 | 135.30 | 18.64 | 0.9354 | 63.00 | 93.75 |
| 16 | 16.000 | 15.00 | 8 | 0.50 | 0.24 | 0.25 | 201.05 | 176.70 | 24.35 | 1.2230 | 78.00 | 116.08 |
| 18 | 18.000 | 16.88 | 8 | 0.56 | 0.21 | 0.23 | 254.85 | 224.00 | 30.85 | 1.5550 | 105.00 | 156.26 |
| 20 | 20.000 | 18.81 | 8 | 0.59 | 0.19 | 0.20 | 314.15 | 278.00 | 36.15 | 1.9260 | 123.00 | 183.05 |
| 24 | 24.000 | 22.63 | 8 | 0.69 | 0.16 | 0.17 | 452.40 | 402.10 | 50.30 | 2.7930 | 171.00 | 254.48 |
Alloy 600 pipe schedule chart
Alloy 600 pipe schedule chart
| O.D. Inches | Nominal | 40s & Std | 80 | 10 | 80s & E.H. | 160 | 10s | 40 |
|---|---|---|---|---|---|---|---|---|
| 1.660 | 1 1 / 4 | .140 | .191 | .109 | .191 | .250 | .109 | .140 |
| 2.375 | 2 | .154 | .218 | .109 | .218 | .343 | .109 | .154 |
| 3.500 | 3 | .216 | .300 | .120 | .300 | .437 | .120 | .216 |
| 2.885 | 2 1 / 2 | .203 | .276 | .120 | .276 | .375 | .120 | .203 |
| 4.000 | 3 1 / 2 | .226 | .318 | .120 | .318 | .120 | .226 | |
| 5.000 | 4 1 / 2 | .247 | .355 | |||||
| 4.500 | 4 | .237 | .337 | .120 | .337 | .531 | .120 | .237 |
| 5.563 | 5 | .258 | .375 | .134 | .375 | .625 | .134 | .258 |
| .540 | 1 / 4 | .088 | .119 | .065 | .119 | .065 | .088 | |
| .405 | 1/8 | .068 | .095 | .049 | .095 | .049 | .068 | |
| .675 | 3/8 | .091 | .126 | .065 | .126 | .065 | .091 | |
| 1.050 | 3/4 | .113 | .154 | .083 | .154 | .218 | .083 | .113 |
| .840 | 1 / 2 | .109 | .147 | .083 | .147 | .187 | .083 | .109 |
| 1.315 | 1 | .133 | .179 | .109 | .179 | .250 | .109 | .133 |
| 1.900 | 1 1 / 2 | .145 | .200 | .109 | .200 | .281 | .109 | .145 |
| 7.625 | 7 | .301 | .500 | |||||
| 6.625 | 6 | .280 | .432 | .134 | .432 | .718 | .134 | .280 |
| 8.625 | 8 | .322 | .500 | .148 | .500 | .906 | .148 | .322 |
| 18.000 | 18 | .375 | .937 | .250 | .500 | 1.781 | .188 | .562 |
| 10.750 | 10 | .365 | .593 | .165 | .500 | 1.125 | .165 | .365 |
| 9.625 | 9 | .342 | .500 | |||||
| 12.750 | 12 | .375 | .687 | .180 | .500 | 1.312 | .180 | .406 |
| 14.000 | 14 | .375 | .750 | .250 | .500 | 1.406 | .188 | .437 |
| 11.750 | 11 | .375 | .500 | |||||
| 16.000 | 16 | .375 | .843 | .250 | .500 | 1.593 | .188 | .500 |
Inconel 600 pipe price
Inconel 600 pipe price
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| Round Inconel 600 Pipe, Size/Diameter: 1 inch | $ 6.95 | ₹ 600 |
| Inconel 600 Pipe, Size/Diameter: 3 inch | $ 21.67 | ₹ 1,870 |
| Inconel 600 Welded Pipe, 3 inch | $ 40.56 | ₹ 3,500 |
Chemical composition of Inconel 600 welded pipe
Chemical composition of Inconel 600 welded pipe
| Grade | Si | Fe | C | Mn | S | Cr | Ni | Cu | |
|---|---|---|---|---|---|---|---|---|---|
| 600 | min. | – | 6.0 | – | – | – | 14.0 | 72.0 | – |
| max. | 0.5 | 10.0 | 0.15 | 1.0 | 0.015 | 17.0 | – | 0.5 | |
WERKSTOFF NR. 2.4816 hexagonal pipe mechanical properties
WERKSTOFF NR. 2.4816 hexagonal pipe mechanical properties
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point | Density | Elongation |
|---|---|---|---|---|---|
| Inconel 600 | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 1413 °C (2580 °F) | 8.47 g/cm3 | 40 % |
ASTM B167 UNS N06600 round pipe equivalent
ASTM B167 UNS N06600 round pipe equivalent
| GRADE | OLD BRITISH | JIS | UNS | G0ST | AFNOR | OR | |
|---|---|---|---|---|---|---|---|
| Inconel 600 | EN | BS | NCF 600 | N0600 | XH60BT | NC15FE11M | ЭИ868 |
Alloy 600 pipe standards
Alloy 600 pipe standards
| UNS: | N06600 |
|---|---|
| Specifications: | ASTM B829, ASTM B167, ASTM B517, ASTM B751, ASTM B163, ASTM B775, ASTM B516, AMS 5580 |
| International Specifications: | BS 3072-3076 (NA14) DIN 17750, DIN 17742, DIN 17754 WERKSTOFF Nr 2.4816 TÜV 305 AFNOR-NC 15 Fe |
Applications of UNS N06600 pipe
- High-temperature Environments
- Oil & Gas
- Aerospace
- Chemical Processing
- Food Processing
- Electronics
- Nuclear Power Generation
UNS 6600 cold drawn pipe physical properties
UNS 6600 cold drawn pipe physical properties
| Inconel 600 | 200°F | 400°F | 800°F | 70°F | 600°F | 1000°F | |
|---|---|---|---|---|---|---|---|
| Elastic Modulus | 103 ksi | 30.5 | 29.7 | 27.8 | 31.1 | 28.8 | 25.7 |
| Thermal Conductivity | Btu-in/h·ft2 ·°F | 109 | 121 | 145 | 103 | 133 | 139 |
| Yield Strength | ksi | 26 | 24 | 21 | 35 | 23 | 34 |
| Thermal Expansion | X10-6/°F | 7.4 | 7.7 | 8.1 | 5.8 | 7.9 | 7.7 |
| Density | lbs/inch3 | - | - | - | 0.306 | - | - |
| Poisson Ratio | - | 0.319 | 0.312 | 0.301 | 0.327 | 0.307 | - |
| Specific Heat | Btu/lb·°F | 0.111 | 0.116 | 0.126 | 0.106 | 0.121 | 0.118 |
| Tensile Strength | ksi | 75 | 73 | 69 | 80 | 70 | 88 |
Nickel alloy 600 polished pipe welding material
- AWS A5.14 ERNiCr-3
- AWS A5.11 ENiCrFe-3
Weight chart of Inconel 600 ERW pipe
Weight chart of Inconel 600 ERW pipe
| NPS | Outside Diameter | Weight | Wall Thickness | Weight | |||
| in | mm | Sched | kg/Mtr | in | mm | Lb/ft | |
| 8″ | 8.625 | 219 | 25.233 | 0.188 | 4.775 | 16.940 | |
| 27.198 | 0.203 | 5.156 | 18.259 | ||||
| 29.286 | 0.219 | 5.563 | 19.661 | ||||
| 20 | 33.308 | 0.250 | 6.350 | 22.361 | |||
| 30 | 36.786 | 0.277 | 7.036 | 24.696 | |||
| 40 | 42.352 | 0.322 | 8.179 | 28.554 | |||
| 49.216 | 0.375 | 9.525 | 33.041 | ||||
| 60 | 53.085 | 0.406 | 10.312 | 35.638 | |||
| 80 XHY | 64.627 | 0.500 | 12.700 | 43.388 | |||
| 10″ | 10.750 | 273 | 31.588 | 0.188 | 4.775 | 21.207 | |
| 36.689 | 0.219 | 5.563 | 24.631 | ||||
| 20 | 41.759 | 0.250 | 6.350 | 28.035 | |||
| 30 | 51.002 | 0.307 | 7.798 | 34.240 | |||
| 56.946 | 0.344 | 8.738 | 38.231 | ||||
| 40 STD | 63.301 | 0.365 | 9.271 | 40.483 | |||
| 71.852 | 0.438 | 11.125 | 48.238 | ||||
| 60 XHY | 81.530 | 0.500 | 12.700 | 54.735 | |||
| 80 | 95.969 | 0.594 | 15.088 | 64.429 | |||
| 12″ | 12.750 | 324 | 37.570 | 0.188 | 4.775 | 25.222 | |
| 43.657 | 0.219 | 5.563 | 29.309 | ||||
| 49.713 | 0.250 | 6.350 | 33.375 | ||||
| 55.739 | 0.281 | 7.137 | 37.420 | ||||
| 61.735 | 0.312 | 7.925 | 41.445 | ||||
| 73.824 | 0.375 | 9.525 | 49.562 | ||||
| 79.727 | 0.406 | 10.312 | 53.525 | ||||
| 97.438 | 0.500 | 12.700 | 65.415 | ||||
| 108.966 | 0.562 | 14.275 | 73.154 | ||||
| 1/2″ | 0.840 | 21 | 40 STD | 1.268 | 0.109 | 2.769 | 0.851 |
| 80 STD | 1.621 | 0.147 | 3.734 | 1.088 | |||
| 3/4″ | 1.050 | 27 | 40 STD | 1.684 | 0.113 | 2.870 | 1.131 |
| 80 STD | 2.195 | 0.154 | 3.912 | 1.474 | |||
| 1″ | 1.315 | 33 | 40 STD | 2.501 | 0.133 | 3.378 | 1.679 |
| 80 STD | 3.325 | 0.179 | 4.547 | 2.172 | |||
| 1 1/4″ | 1.660 | 42 | 40 STD | 3.385 | 0.140 | 3.556 | 2.273 |
| 80 STD | 4.464 | 0.191 | 4.851 | 2.997 | |||
| 1 1/2″ | 1.900 | 48 | 40 STD | 4.048 | 0.145 | 3.683 | 2.718 |
| 80 STD | 5.409 | 0.200 | 5.080 | 3.361 | |||
| 2″ | 2.375 | 60 | 40 STD | 5.441 | 0.154 | 3.912 | 3.653 |
| 80 STD | 7.480 | 0.218 | 5.537 | 5.022 | |||
| 2 1/2″ | 2.875 | 73 | 40 STD | 8.629 | 0.203 | 5.516 | 5.793 |
| 80 STD | 11.411 | 0.276 | 7.010 | 7.661 | |||
| 3″ | 3.500 | 89 | 40 STD | 11.284 | 0.216 | 5.486 | 7.576 |
| 80 STD | 15.272 | 0.300 | 7.620 | 10.253 | |||
| 4″ | 4.500 | 114 | 16.073 | 0.237 | 6.020 | 10.790 | |
| 22.318 | 0.337 | 8.560 | 14.983 | ||||
| 6″ | 6.625 | 168 | 19.252 | 0.188 | 4.775 | 12.924 | |
| 20.739 | 0.203 | 5.516 | 13.923 | ||||
| 22.318 | 0.219 | 5.563 | 14.983 | ||||
| 25.354 | 0.250 | 6.350 | 17.021 | ||||
| 40 STD | 58.263 | 0.280 | 7.112 | 18.974 | |||
| 31.334 | 0.312 | 7.925 | 21.036 | ||||
| 37.285 | 0.375 | 9.525 | 25.031 | ||||
| 80 XHY | 42.561 | 0.432 | 10.973 | 28.573 | |||
| 48.719 | 0.500 | 12.700 | 32.708 | ||||
| 14″ | 14.000 | 356 | 41.308 | 0.188 | 4.775 | 27.732 | |
| 48.012 | 0.219 | 5.563 | 32.233 | ||||
| 20 | 54.685 | 0.250 | 6.350 | 36.713 | |||
| 61.327 | 0.281 | 7.137 | 41.172 | ||||
| 67.939 | 0.312 | 7.925 | 45.611 | ||||
| STD | 81.281 | 0.375 | 9.525 | 54.568 | |||
| 40 | 94.498 | 0.438 | 11.125 | 63.441 | |||
| XHY | 107.381 | 0.500 | 12.700 | 72.090 | |||
| 132.983 | 0.625 | 15.875 | 89.278 | ||||
| 16” | 16.000 | 406 | 47.290 | 0.188 | 4.775 | 21.748 | |
| 54.980 | 0.219 | 5.563 | 36.910 | ||||
| 10 | 62.639 | 0.250 | 6.350 | 42.053 | |||
| 70.268 | 0.281 | 7.137 | 47.174 | ||||
| 20 | 77.866 | 0.312 | 7.925 | 52.275 | |||
| 85.677 | 0.344 | 8.738 | 57.519 | ||||
|
30 STD |
93.213 | 0.375 | 9.525 | 62.578 | |||
| 108.433 | 0.438 | 11.125 | 72.797 | ||||
|
40 XHY |
123.289 | 0.500 | 12.700 | 82.770 | |||
| 18″ | 18.000 | 457 | 61.948 | 0.219 | 5.563 | 41.588 | |
| 70.593 | 0.250 | 6.350 | 47.393 | ||||
| 79.208 | 0.281 | 7.137 | 53.176 | ||||
| 20 | 87.792 | 0.312 | 7.925 | 58.939 | |||
| STD | 105.144 | 0.375 | 9.525 | 70.588 | |||
| 30 | 122.369 | 0.438 | 11.125 | 82.152 | |||
| XHY | 139.198 | 0.500 | 12.700 | 93.450 | |||
| 40 | 155.904 | 0.562 | 14.275 | 104.666 | |||
| 172.754 | 0.625 | 15.875 | 115.978 | ||||
| 24″ | 24.000 | 610 | 94.456 | 0.250 | 6.350 | 63.413 | |
| 106.029 | 0.281 | 7.137 | 71.183 | ||||
| 117.573 | 0.312 | 7.925 | 18.932 | ||||
| 20 STD | 140.938 | 0.375 | 9.525 | 64.618 | |||
| 164.176 | 0.438 | 11.125 | 110.219 | ||||
| XHY | 186.923 | 0.500 | 12.700 | 125.490 | |||
| 232.410 | 0.625 | 15.875 | 156.028 | ||||
| 40 | 255.148 | 0.688 | 17.475 | 171.293 | |||
| 277.401 | 0.750 | 19.050 | 186.233 | ||||
| 30″ | 30.000 | 762 | 118.318 | 0.250 | 6.350 | 79.433 | |
| 132.851 | 0.281 | 7.137 | 89.189 | ||||
| 10 | 147.353 | 0.312 | 7.925 | 98.925 | |||
| STD | 176.731 | 0.375 | 9.525 | 118.648 | |||
| 205.983 | 0.438 | 11.125 | 138.286 | ||||
| 20 XHY | 234.647 | 0.500 | 12.700 | 157.530 | |||
| 30 | 292.066 | 0.625 | 15.875 | 196.078 | |||
| 320.817 | 0.688 | 17.475 | 215.380 | ||||
| 348.988 | 0.750 | 19.050 | 234.293 | ||||
| 20″ | 20.000 | 508 | 78.547 | 0.250 | 6.350 | 52.733 | |
| 88.458 | 0.282 | 7.163 | 59.386 | ||||
| 97.719 | 0.312 | 7.925 | 65.604 | ||||
| 20 STD | 117.075 | 0.375 | 9.525 | 78.598 | |||
| 136.305 | 0.438 | 11.125 | 91.508 | ||||
| 30 XHY | 155.106 | 0.500 | 12.700 | 104.130 | |||
| 40 | 183.378 | 0.594 | 15.088 | 123.110 | |||
| 192.640 | 0.625 | 15.875 | 129.328 | ||||
| 211.368 | 0.688 | 17.475 | 141.901 | ||||
| 36″ | 36.000 | 914 | 142.180 | 0.250 | 6.350 | 95.453 | |
| 159.672 | 0.281 | 7.137 | 107.196 | ||||
| 10 | 177.133 | 0.312 | 7.925 | 118.918 | |||
| STD | 215.525 | 0.375 | 9.525 | 142.678 | |||
| 247.790 | 0.438 | 11.125 | 166.353 | ||||
| 20 XHY | 282.372 | 0.500 | 12.700 | 198.570 | |||
| 351.723 | 0.625 | 15.875 | 236.128 | ||||
| 386.487 |
0.688 |
17.475 | 259.467 | ||||
| 420.576 |
0.750 |
19.050 | 282.353 | ||||
| 42″ | 42.000 | 1067 | 206.914 | 0.312 | 7.925 | 138.911 | |
| STD | 248.319 | 0.375 | 9.525 | 166.708 | |||
| XHY | 33.097 | 0.500 | 12.700 | 221.610 | |||
| 492.163 | 0.750 | 19.050 | 330.413 | ||||
| 48″ | 48.000 | 1219 | STD | 284.112 | 0.375 | 9.525 | 190.738 |
| 331.404 | 0.438 | 11.125 | 222.487 | ||||
| XHY | 377.822 | 0.500 | 12.700 | 253.650 | |||
| 563.750 | 0.750 | 19.050 | 378.473 | ||||
| 655.969 | 0.875 | 22.225 | 440.383 | ||||
DIN NR. 2.4816 square pipe testing
- Intergranular Corrosion (IGC) Test
- Moisture Testing
- PMI (Positive Material Identification) Test
- Flattening Test
- Micro and Macro Test
- Hydrostatic Test
- Eddy Current Test
- Pitting Resistance Test
- Hardness Test
- Spectro Analysis
- Flaring Test
- Visual Inspection
Ready to place an order?
We supply premium quality steel products for every industrial application. Call us or send an enquiry and our team will respond within 24 hours.
