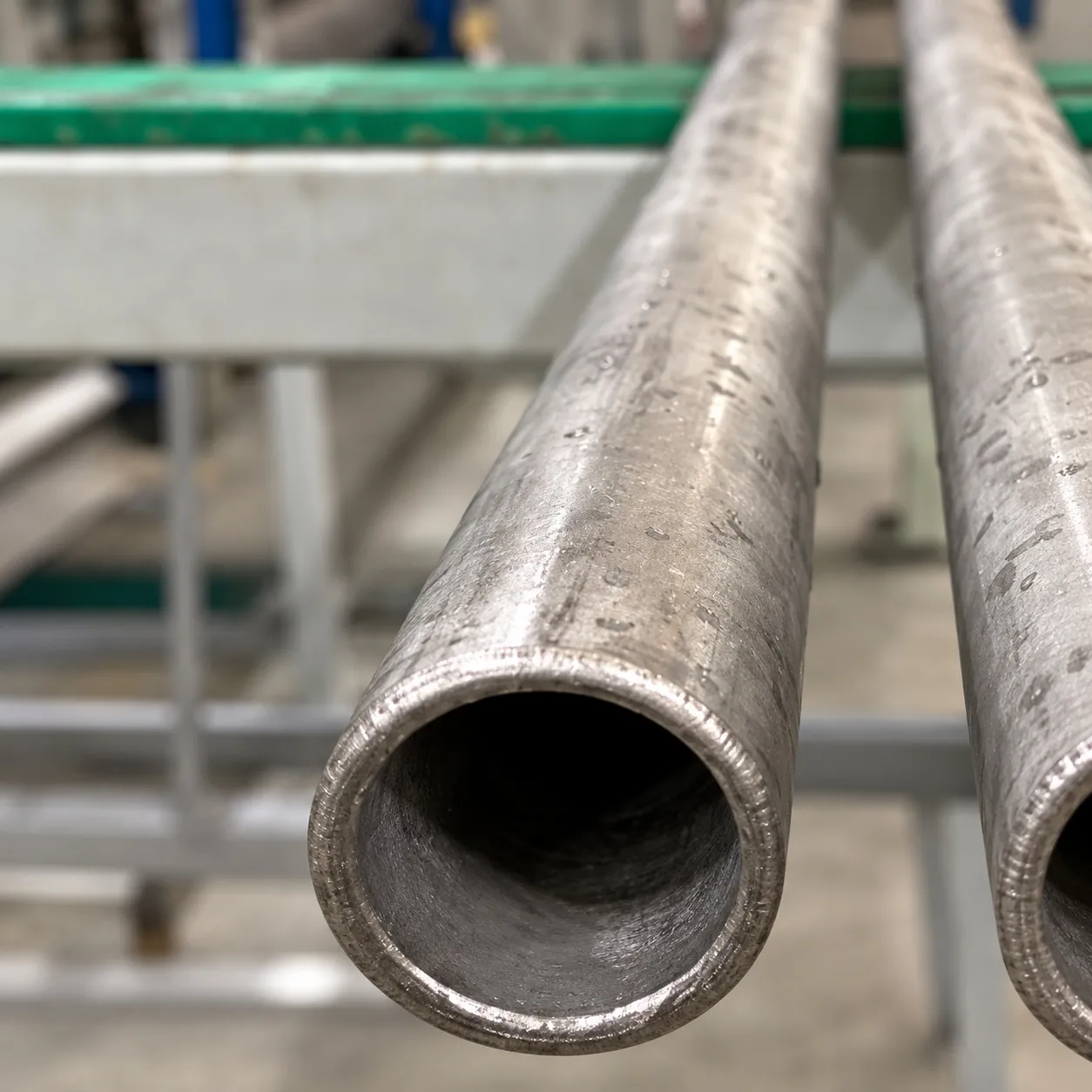

Incoloy 825 Pipe
Incoloy 825 pipe specification
Incoloy 825 pipe specification
| SPECIFICATION | DETAILS |
|---|---|
| Seamless pipe sizes | Thickness: 0.5 - 20mm, Size: 4 - 219mm |
| Dimensional Specification | ANSI/ ASME B36.19, B36.10, B2.1 |
| Welded pipe sizes | Thickness: 0.5 - 20mm, Size: 5.0 - 1219.2 mm |
| EFW pipe size | OD: 5.0 - 1219.2 mm |
| Welding material | AWS A5.11 ENiCrMo-3, AWS A5.14 ERNiFeCr-1, AWS A5.14 ERNiCrMo-3 |
| Length | 6 meters, 12 meters |

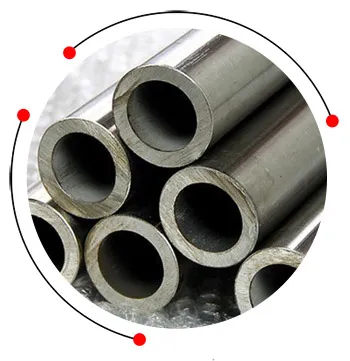

Incoloy 825 pipe

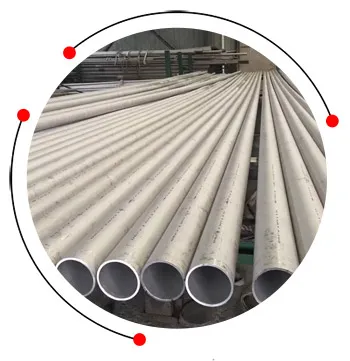

Alloy 825 seamless pipe

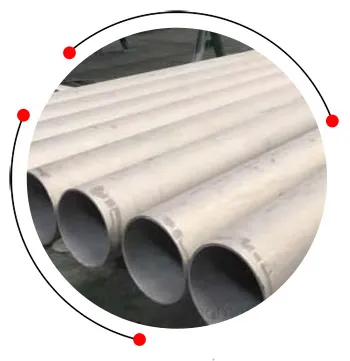

SB 163 N08825 welded pipes

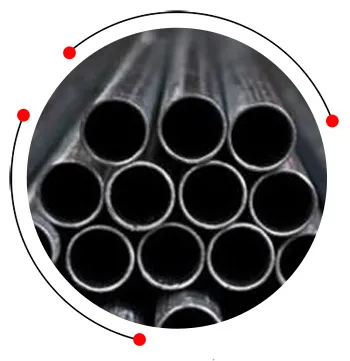

SB 423 UNS N08825 ERW pipe

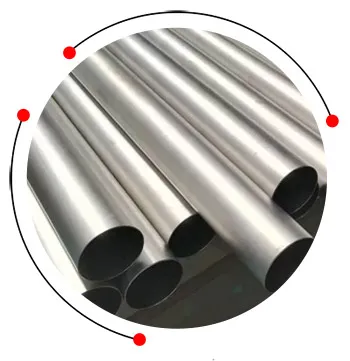

ASTM B423 UNS N08825 clad pipe

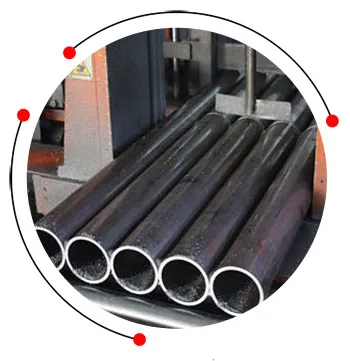

WERKSTOFF NR. 2.4858 cold rolled pipes
Alloy 825 seamless pipe sizes
Alloy 825 seamless pipe sizes
| Size (in.) | WT (mm) | WT (in.) | OD (mm) | OD (in.) |
|---|---|---|---|---|
| 4" NPS 100 | 6.02 | 0.237 | 114.3 | 4.5 |
| 3 1/2" NPS 90 | 5.74 | 0.226 | 101.6 | 4.0 |
| 5" NPS 125 | 6.55 | 0.258 | 141.3 | 5.563 |
| 8" NPS 200 | 8.18 | 0.322 | 219.1 | 8.625 |
| 6" NPS 150 | 7.11 | 0.28 | 168.3 | 6.625 |
| 10" NPS 250 | 9.27 | 0.365 | 273.0 | 10.75 |
| 14" NPS 350 | 11.13 | 0.437 | 355.6 | 14.0 |
| 12" NPS 300 | 10.31 | 0.406 | 323.8 | 12.75 |
| 1/4" NPS 8 | 2.24 | 0.088 | 13.7 | 0.54 |
| 1/2" NPS 15 | 2.77 | 0.109 | 21.3 | 0.84 |
| 3/8" NPS 10 | 2.31 | 0.091 | 17.1 | 0.68 |
| 3/4" NPS 20 | 2.87 | 0.113 | 26.7 | 1.05 |
| 1 1/4" NPS 32 | 3.56 | 0.14 | 42.2 | 1.66 |
| 1" NPS 25 | 3.38 | 0.133 | 33.4 | 1.32 |
| 1 1/2" NPS 40 | 3.68 | 0.145 | 48.3 | 1.9 |
| 2 1/2" NPS 65 | 5.16 | 0.203 | 73.0 | 2.875 |
| 2" NPS 50 | 3.91 | 0.154 | 60.3 | 2.375 |
| 3" NPS 80 | 5.49 | 0.216 | 88.9 | 3.5 |
| 1/8" NPS 6 | 1.73 | 0.068 | 10.3 | 0.41 |
| 16" NPS 400 | 12.7 | 0.5 | 406.4 | 16.0 |
| 20" NPS 500 | 15.09 | 0.594 | 508.0 | 20.0 |
| 18" NPS 450 | 14.27 | 0.562 | 457.0 | 18.0 |
Weight chart of SB 163 N08825 welded pipes
Weight chart of SB 163 N08825 welded pipes
| NPS | Weight | Weight | Wall Thickness | Outside Diameter | |||
|---|---|---|---|---|---|---|---|
| Sched | Lb/ft | kg/Mtr | in | mm | in | mm | |
| 3″ | 40 STD | 7.576 | 11.284 | 0.216 | 5.486 | 3.500 | 89 |
| - | 80 STD | 10.253 | 15.272 | 0.300 | 7.620 | - | - |
| 3/4″ | 40 STD | 1.131 | 1.684 | 0.113 | 2.870 | 1.050 | 27 |
| - | 80 STD | 1.474 | 2.195 | 0.154 | 3.912 | - | - |
| 1/2″ | 40 STD | 0.851 | 1.268 | 0.109 | 2.769 | 0.840 | 21 |
| - | 80 STD | 1.088 | 1.621 | 0.147 | 3.734 | - | - |
| 1 1/4″ | 40 STD | 2.273 | 3.385 | 0.140 | 3.556 | 1.660 | 42 |
| - | 80 STD | 2.997 | 4.464 | 0.191 | 4.851 | - | - |
| 1″ | 40 STD | 1.679 | 2.501 | 0.133 | 3.378 | 1.315 | 33 |
| - | 80 STD | 2.172 | 3.325 | 0.179 | 4.547 | - | - |
| 2″ | 40 STD | 3.653 | 5.441 | 0.154 | 3.912 | 2.375 | 60 |
| - | 80 STD | 5.022 | 7.480 | 0.218 | 5.537 | - | - |
| 1 1/2″ | 40 STD | 2.718 | 4.048 | 0.145 | 3.683 | 1.900 | 48 |
| - | 80 STD | 3.361 | 5.409 | 0.200 | 5.080 | - | - |
| 2 1/2″ | 40 STD | 5.793 | 8.629 | 0.203 | 5.516 | 2.875 | 73 |
| - | 80 STD | 7.661 | 11.411 | 0.276 | 7.010 | - | - |
| 6″ | - | 12.924 | 19.252 | 0.188 | 4.775 | 6.625 | 168 |
| - | - | 14.983 | 22.318 | 0.219 | 5.563 | - | - |
| - | - | 13.923 | 20.739 | 0.203 | 5.516 | - | - |
| - | 40 STD | 18.974 | 58.263 | 0.280 | 7.112 | - | - |
| - | - | 17.021 | 25.354 | 0.250 | 6.350 | - | - |
| - | - | 21.036 | 31.334 | 0.312 | 7.925 | - | - |
| - | 80 XHY | 28.573 | 42.561 | 0.432 | 10.973 | - | - |
| - | - | 25.031 | 37.285 | 0.375 | 9.525 | - | - |
| - | - | 32.708 | 48.719 | 0.500 | 12.700 | - | - |
Inconel 825 pipe standards
Inconel 825 pipe standards
| Specification | ASTM B163, B751, B423, B704, B705, B829, B775 |
|---|---|
| International Specification | DIN 17751, ISO 6207, VdTüV 432 |
| UNS | N08825 |
Incoloy 825 seamless pipe poisson ratio
Incoloy 825 seamless pipe poisson ratio
| Temperature | Tensile Modulus | Shear Modulus | Poisson's Ratioᵇ |
|---|---|---|---|
| °C | GPa | GPa | Poisson's Ratioᵇ |
| 20 | 196.5 | 73.4 | 0.339 |
| -190 | 210.6 | 78.9 | 0.334 |
| 200 | 184.8 | 68.5 | 0.349 |
| 100 | 191.3 | 71.2 | 0.343 |
| 300 | 178.3 | 66.1 | 0.357 |
| 500 | 165.0 | 60.3 | 0.367 |
| 400 | 171.6 | 63.0 | 0.362 |
| 600 | 157.7 | 57.4 | 0.373 |
| 800 | 141.3 | 50.7 | 0.394 |
| 700 | 150.1 | 54.3 | 0.381 |
| °F | 10³ ksi | 10³ ksi | - |
| 75 | 28.50 | 10.64 | 0.339 |
| -310 | 30.55 | 11.45 | 0.334 |
| 400 | 26.81 | 9.91 | 0.353 |
| 200 | 27.82 | 10.37 | 0.341 |
| 600 | 25.71 | 9.47 | 0.357 |
| 1000 | 23.52 | 8.60 | 0.367 |
| 800 | 24.64 | 9.04 | 0.363 |
| 1200 | 22.37 | 8.12 | 0.377 |
| 1600 | 19.20 | 6.82 | 0.408 |
| 1400 | 21.06 | 7.58 | 0.389 |
Price list of Incoloy 825 pipe
Price list of Incoloy 825 pipe
| Description | Price in USD | Price in Unit (INR) |
|---|---|---|
| Incoloy 800 pipe Size 4NB x sch 40s | $ 212.98 | 18,337 |
| Incoloy 800 Seamless pipe Size 6NB x sch 40s | $ 410.47 | 35,340 |
SB 423 UNS N08825 ERW pipe temperature range
SB 423 UNS N08825 ERW pipe temperature range
| Property | Temperature Range |
|---|---|
| Max. for Oxidizing Acids | Up to ~540°C (1000°F) |
| Operating Temp (General) | -196°C to 540°C (–320°F to 1000°F) |
Schedule chart of ASTM B423 UNS N08825 clad pipe
Schedule chart of ASTM B423 UNS N08825 clad pipe
| O.D. Inches | Nominal | 40 | 40s & Std | 160 | 80 | 80s & E.H. | 10 | 10s |
|---|---|---|---|---|---|---|---|---|
| 5.000 | 4 1/2 | - | .247 | - | - | .355 | - | - |
| 4.500 | 4 | .237 | .237 | .531 | .337 | .337 | .120 | .120 |
| 5.563 | 5 | .258 | .258 | .625 | .375 | .375 | .134 | .134 |
| 7.625 | 7 | - | .301 | - | - | .500 | - | - |
| 6.625 | 6 | .280 | .280 | .718 | .432 | .432 | .134 | .134 |
| 8.625 | 8 | .322 | .322 | .906 | .500 | .500 | .148 | .148 |
| 18.000 | 18 | .562 | .375 | 1.781 | .937 | .500 | .250 | .188 |
| 10.750 | 10 | .365 | .365 | 1.125 | .593 | .500 | .165 | .165 |
| 9.625 | 9 | - | .342 | - | - | .500 | - | - |
| 12.750 | 12 | .406 | .375 | 1.312 | .687 | .500 | .180 | .180 |
| 14.000 | 14 | .437 | .375 | 1.406 | .750 | .500 | .250 | .188 |
| .540 | 1/4 | .088 | .088 | - | .119 | .119 | .065 | .065 |
| .405 | 1/8 | .068 | .068 | - | .095 | .095 | .049 | .049 |
| .675 | 3/8 | .091 | .091 | - | .126 | .126 | .065 | .065 |
| 1.050 | 3/4 | .113 | .113 | .218 | .154 | .154 | .083 | .083 |
| .840 | 1/2 | .109 | .109 | .187 | .147 | .147 | .083 | .083 |
| 1.315 | 1 | .133 | .133 | .250 | .179 | .179 | .109 | .109 |
| 1.900 | 1 1/2 | .145 | .145 | .281 | .200 | .200 | .109 | .109 |
| 1.660 | 1 1/4 | .140 | .140 | .250 | .191 | .191 | .109 | .109 |
| 2.375 | 2 | .154 | .154 | .343 | .218 | .218 | .109 | .109 |
| 3.500 | 3 | .216 | .216 | .437 | .300 | .300 | .120 | .120 |
| 2.875 | 2 1/2 | .203 | .203 | .375 | .276 | .276 | .120 | .120 |
| 4.000 | 3 1/2 | .226 | .226 | - | .318 | .318 | .120 | .120 |
| 11.750 | 11 | - | .375 | - | - | .500 | - | - |
| 16.000 | 16 | .500 | .375 | 1.593 | .843 | .500 | .250 | .188 |
WERKSTOFF NR. 2.4858 cold rolled pipes pressure rating
WERKSTOFF NR. 2.4858 cold rolled pipes pressure rating
| OD (In.) | Wall Thickness (Inches) | |||||||
|---|---|---|---|---|---|---|---|---|
| .065 | .035 | .028 | .049 | .095 | .083 | .120 | .109 | |
| - | Working Pressure | |||||||
| 1/4 | 9500 | 4800 | 3700 | 7000 | - | - | - | - |
| 1/2 | 4400 | 2300 | - | 3200 | - | - | - | - |
| 1 | 2200 | - | - | - | 3400 | 2900 | 4300 | 3900 |
| 1/8 | - | 10100 | 7900 | - | - | - | - | - |
| 3/8 | 6100 | 3100 | - | 4400 | - | - | - | - |
| 5/16 | 7300 | 3700 | - | 5400 | - | - | - | - |
| 3/4 | 3000 | - | - | 2200 | 4600 | 4000 | - | - |
Application of 825 pipe
Application of 825 pipe
| Marine exhaust systems | Radioactive waste handling | Oil and gas recovery |
| Nuclear fuel reprocessing | Pollution control | Calorifiers |
| Hot vessels for water, food, and seawater | Chemical processing | Acid production |
Nickel alloy 825 round pipe dimension
Nickel alloy 825 round pipe dimension
| NPS (inches) | Wall Thickness in MM (SCH 80) | Outside Diameter in MM (OD) | Wall Thickness in MM (SCH 40) |
|---|---|---|---|
| 1-1/2" | 5.08 | 48.3 | 3.68 |
| 2" | 5.54 | 60.3 | 3.91 |
| 3" | 7.62 | 88.9 | 5.49 |
| 4" | 8.56 | 114.3 | 6.02 |
| 1/2" | 3.73 | 21.3 | 2.77 |
| 3/4" | 3.91 | 26.7 | 2.87 |
| 1" | 4.55 | 33.4 | 3.38 |
| 6" | 10.97 | 168.3 | 7.11 |
| 8" | 12.7 | 219.1 | 8.18 |
| 10" | 15.09 | 273.0 | 9.27 |
Chemical composition of DIN 2.4858 rectangular pipe
Chemical composition of DIN 2.4858 rectangular pipe
| Grade | Fe | S | C | Mn | Si | Cr | Cu | Ti | |
| 825 | min. | 22.0 | - | - | - | - | 19.5 | 1.5 | 0.6 |
| max. | - | 0.015 | 0.05 | 1.0 | 0.5 | 23.5 | 3.0 | 1.2 | |
Mechanical properties of Nicrofer 4241 square pipe
Mechanical properties of Nicrofer 4241 square pipe
| Element | Yield Strength (0.2%Offset) | Elongation | Tensile Strength |
|---|---|---|---|
| Incoloy 825 | Psi – 32,000 , MPa – 220 | 30 % | Psi – 80,000 , MPa – 550 |
Nickel alloy 825 hot finished pipe equivalent grades
Nickel alloy 825 hot finished pipe equivalent grades
| STANDARD | EN | GOST | WERKSTOFF NR. | UNS | AFNOR | OR | JIS | BS |
|---|---|---|---|---|---|---|---|---|
| Incoloy 825 | NiCr21Mo | ЭП703 | 2.4858 | N08825 | NFE30C20DUM | XH38BT | NCF 825 | NA 16 |
Inconel 825 exhaust pipes physical properties
Inconel 825 exhaust pipes physical properties
| Density | Specific Heat | Melting Range | Electrical Resistivity | ||
|---|---|---|---|---|---|
| g/cm3 | J/kg.k | Btu/lb. °F | °C | °F | µΩ·m |
| 8.14 | 440 | 0.105 | 1370-1400 | 2500-2550 | 1130 |
