ISO Certified Manufacturer
Superior SS hammered sheet
Hammered stainless steel sheet specification
Hammered stainless steel sheet specification
| SPECIFICATION | DETAILS |
|---|---|
| Grade | 202, 304, 316 |
| Thickness | 0.5mm to 1.2mm |
| Width | 1250mm |
| Color Options | Silver, Champagne, Gold, Rose Gold, Blue, Black, Bronze |
| Surface Finish | No.4 Matt and No.8 Mirror |
| Length | 2500mm - 3000mm |

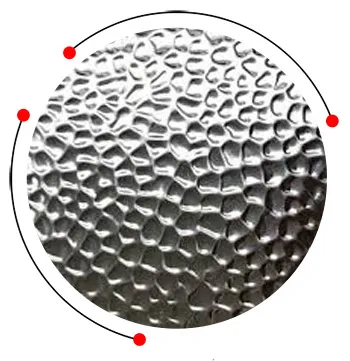

Hammered stainless steel sheet

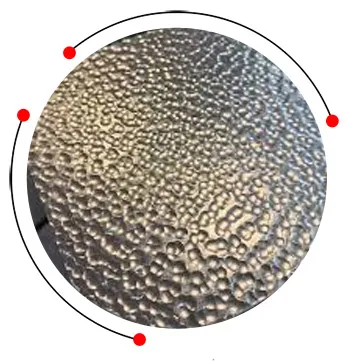

SS hammered sheet

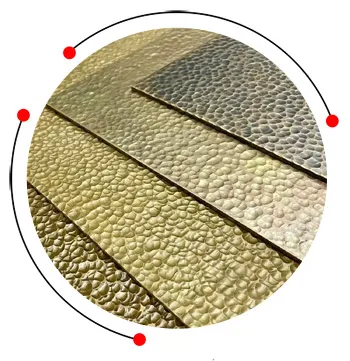

Hammered SS sheets

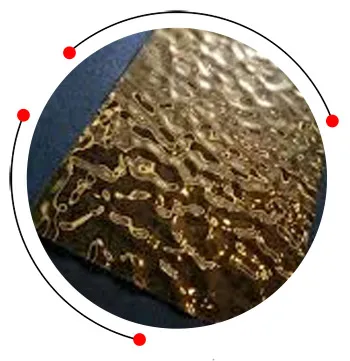

Stainless steel hammered sheet

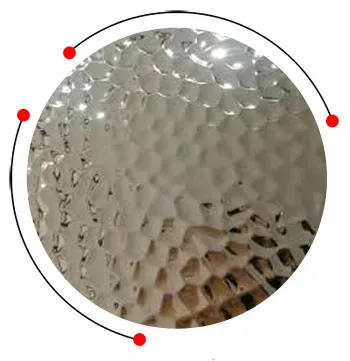

Hammer SS sheet

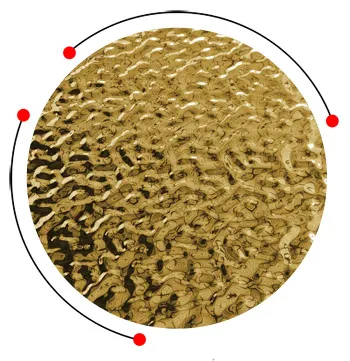

Stainless steel gold hammered sheets
Hammered SS sheets thickness
Hammered SS sheets thickness
| Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|
| 1.2 | 1000–1500 | 2000–4000 |
| 1.5 | 1000–1500 | 2000–4000 |
| 2.0 | 1000–1500 | 2000–4000 |
| 0.5 | 1000–1500 | 2000–4000 |
| 0.6 | 1000–1500 | 2000–4000 |
| 0.8 | 1000–1500 | 2000–4000 |
| 1.0 | 1000–1500 | 2000–4000 |
| 2.5 | 1000–1500 | 2000–4000 |
| 3.0 | 1000–1500 | 2000–4000 |
| 4.0 | 1000–1500 | 2000–4000 |
Weight chart of stainless steel hammered sheet
Weight chart of stainless steel hammered sheet
| Size (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|
| 2500 x 1250 | 1.2 | 30.14 |
| 2500 x 1250 | 1.5 | 37.70 |
| 2500 x 1250 | 2.0 | 50.25 |
| 2500 x 1250 | 2.5 | 62.81 |
| 2500 x 1250 | 0.5 | 12.57 |
| 2500 x 1250 | 0.6 | 15.08 |
| 2500 x 1250 | 0.8 | 20.10 |
| 2500 x 1250 | 1.0 | 25.12 |
| 2500 x 1250 | 3.0 | 75.37 |
| 2500 x 1250 | 4.0 | 100.50 |
Hammer SS sheet application
Hammer SS sheet application
| Automotive Industries | Power Generation Industries | Chemical Equipment |
| Nuclear Power Plant | Sea Water Equipment | Cement Industries |
| Ship Building Industries | Mining Industries | Construction Industries |
| Food Industries | Pharmaceutical Equipment | Pulp and Paper Industry |
| Off-Shore Oil Drilling Companies | Transport Industries- Rail and Road | Energy Industries |
| Gas Processing Industries | Petro-Chemical Industries | Agriculture Industries |
| Oil & Gas Industries | Heat Exchangers | Sugar Industries |
Chemical composition of 304 SS hammer sheet
Chemical composition of 304 SS hammer sheet
| Grade | Ni (%) | Cr (%) | C (%) |
|---|---|---|---|
| 430 | — | 16–18 | ≤ 0.12 |
| 201 | 3.5–5.5 | 16–18 | ≤ 0.15 |
| 202 | 4–6 | 17–19 | ≤ 0.15 |
| 409 | — | 10.5–11.75 | ≤ 0.08 |
| 304 | 8–10.5 | 18–20 | ≤ 0.08 |
| 304L | 8–12 | 18–20 | ≤ 0.03 |
| 316 | 10–14 | 16–18 | ≤ 0.08 |
| 316L | 10–14 | 16–18 | ≤ 0.03 |
| 441 | — | 17.5–18.5 | ≤ 0.03 |
| 444 | 1.5–2.5 | 17.5–19.5 | ≤ 0.025 |
Stainless steel black hammered sheets mechanical properties
Stainless steel black hammered sheets mechanical properties
| Grade | Elongation (%) | Tensile Strength (MPa) | Yield Strength (MPa) |
|---|---|---|---|
| 316 | ≥ 40 | 515–620 | ≥ 205 |
| 316L | 40 | 485 | 170 |
| 304L | 40 | 485 | 170 |
| 201 | ≥ 45 | 520–680 | 275 |
| 202 | ≥ 40 | 515–690 | ≥ 275 |
| 304 | ≥ 40 | 515–620 | ≥ 205 |
| 441 | ≥ 25 | 430–620 | ≥ 260 |
| 430 | ≥ 22 | 450–600 | ≥ 200 |
| 409 | ≥ 20 | 380–450 | 170 |
| 444 | ≥ 20 | 430–600 | ≥ 260 |
Looking for a budget-friendly 316 stainless steel hammered sheet? We offer competitive rates and fast delivery in India.
- Silver
- Rose Gold
- Bronze
- Black
- Gold (PVD Coated)
Equivalent grades of hammered stainless steel sheet
Equivalent grades of hammered stainless steel sheet
| Grade | EN | JIS | UNS | DIN |
|---|---|---|---|---|
| 441 | X2CrMoTi18-2 | SUS441 | S44100 | 1.4509 |
| 202 | X12CrMnNiN18-9-5 | SUS202 | S20200 | 1.4373 |
| 304 | X5CrNi18-10 | SUS304 | S30400 | 1.4301 |
| 316L | X2CrNiMo17-12-2 | SUS316L | S31603 | 1.4404 |
| 430 | X6Cr17 | SUS430 | S43000 | 1.4016 |
| 201 | X12CrMnNiN17-7-5 | SUS201 | S20100 | 1.4372 |
| 304L | X2CrNi18-9 | SUS304L | S30403 | 1.4307 |
| 316 | X5CrNiMo17-12-2 | SUS316 | S31600 | 1.4401 |
| 409 | — | SUS409 | S40900 | 1.4512 |
| 444 | X2CrMoTi18-2 | SUS444 | S44400 | 1.4521 |
SS hammered sheet advantages
- Low maintenance
- Suitable for interior and exterior use
- Luxurious and decorative appeal
- Corrosion-resistant and durable
- Modern, stylish look
Ready to place an order?
We supply premium quality steel products for every industrial application. Call us or send an enquiry and our team will respond within 24 hours.
