Well-known SS etching sheet
Specification chart of etched stainless steel sheet
Specification chart of etched stainless steel sheet
| SPECIFICATION | DETAILS |
|---|---|
| Material | Stainless Steel |
| Grade | SUS 304, 316 |
| Length | ≦4000 mm |
| Width | ≦1220 mm |
| Thickness | 0.5-3.0 mm |
| Etched Depth | 20~30 MICRON |

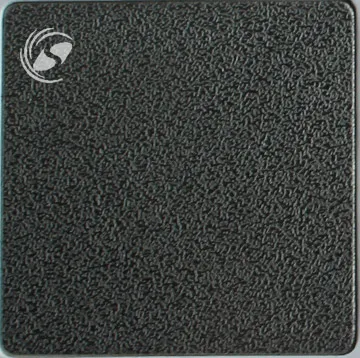

Sparkling Silver

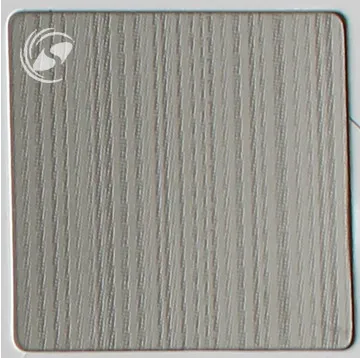

Pattern Grey Nickel Elegant Etched

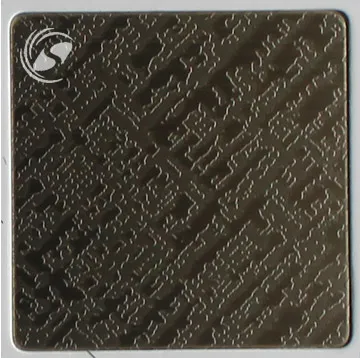

Pattern Etched Silver Copper

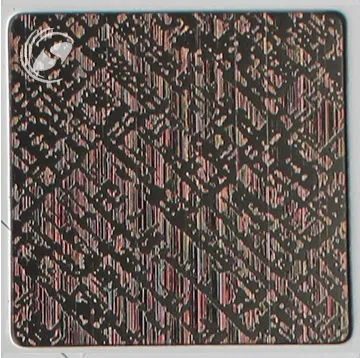

Pattern Etched Copper

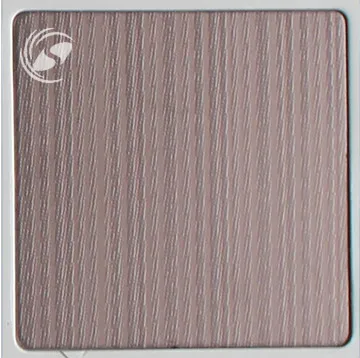

Pattern Bronze Rose Elegant Etched

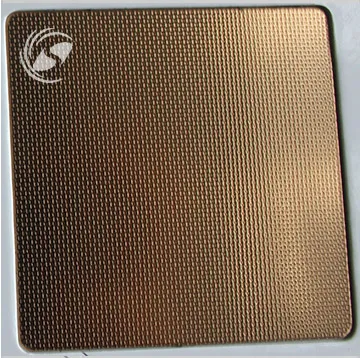

Copper Mesh

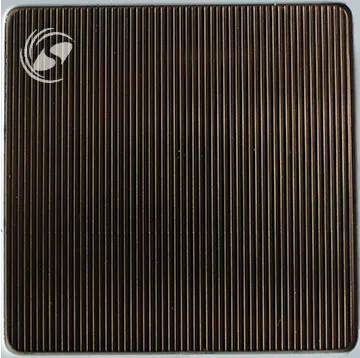

Copper Straight Line

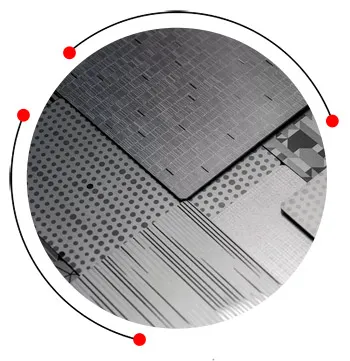

Etched stainless steel sheet

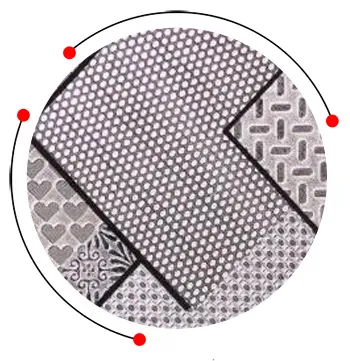

SS etching sheet

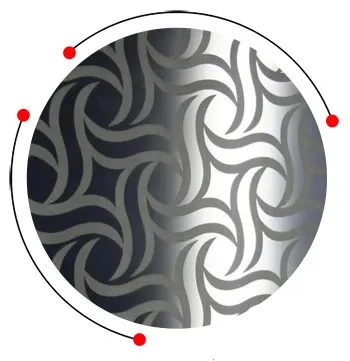

Stainless steel etching sheet

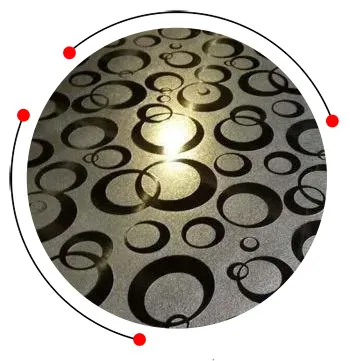

SS etched sheet

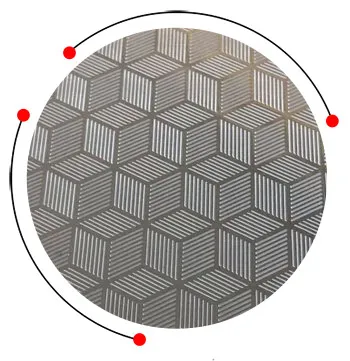

Decorative etched stainless steel sheet

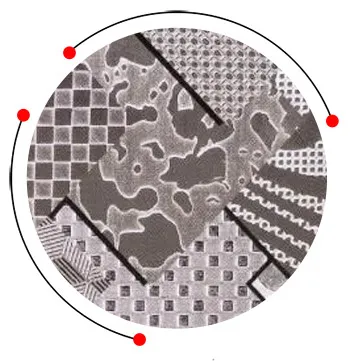

Etched SS sheet
Stainless steel etching sheet thickness chart
Stainless steel etching sheet thickness chart
| Width in milimeter | Length in milimeter | Thickness | Grades |
| 1219 | 2438 | 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm & 3mm |
|
| 1524 | 3048 | ||
| Other Thickness & Sizes On Request | |||
Weight chart of SS etched sheet
Weight chart of SS etched sheet
| Wt. Per Sq Feet | 0.22 | 0.30 | 0.37 | 0.45 | 0.59 | 0.74 | 0.89 | 1.11 | 1.34 | 1.49 | 1.86 | 2.23 |
| Thickness in milimeter | 0.30 | 0.40 | 0.50 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | 1.80 | 2.00 | 2.50 | 3.00 |
| Wt. Per Sheet : 1524mm * 3048mm / 5' * 10' |
- | - | 18.00 | 21.60 | 28.80 | 36.00 | 43.20 | 54.00 | 64.80 | 72.00 | 90.00 | 108.00 |
| Wt. Per Sheet : 1219mm * 2438mm / 4' * 8' |
- | - | 11.89 | 14.27 | 19.02 | 23.78 | 28.53 | 35.66 | 42.80 | 47.55 | 95.10 | 142.65 |
Decorative etched stainless steel sheet color option
Decorative etched stainless steel sheet color option
| Gold | Coffee Gold | Rose |
| Black | Red Rose | Titanium Black |
| Rose Gold | Violet | Brown |
| Copper | Red Copper | Antique Copper |
| Sapphire | Green | Red |
| Silver | Custom Colour Sheets | Bronze |
Chemical composition of etching stainless steel sheets
Chemical composition of etching stainless steel sheets
| Nickel (Ni) | 8.0 – 10.5 | 10.0 – 14.0 |
|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.08 |
| Chromium (Cr) | 18.0 – 20.0 | 16.0 – 18.0 |
| Phosphorus (P) | ≤ 0.045 | ≤ 0.045 |
| Sulfur (S) | ≤ 0.03 | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.0 | ≤ 2.0 |
| Silicon (Si) | ≤ 1.0 | ≤ 1.0 |
| Molybdenum (Mo) | – | 2.0 – 3.0 |
Stainless steel etched sheets mechanical properties
Stainless steel etched sheets mechanical properties
| Tensile Strength | 515 – 620 MPa |
|---|---|
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 40% |
| Hardness (HRB) | ≤ 95 |
Etched SS sheet features
- High Strength
- Dimensional Accuracy
- Robustness
- Finest Thickness
Etched stainless steel sheet equivalent
Etched stainless steel sheet equivalent
| EN | X5CrNi18-10 | X5CrNiMo17-12-2 |
|---|---|---|
| ASTM | A240 304 | A240 316 |
| UNS | S30400 | S31600 |
| JIS | SUS304 | SUS316 |
| DIN | 1.4301 | 1.4401 |
Physical properties of 304 etched stainless steel sheet
Physical properties of 304 etched stainless steel sheet
| Density | ~8.0 g/cm³ |
|---|---|
| Thermal Conductivity | 16 – 21 W/m·K |
| Melting Point | 1400 – 1450°C |
| Magnetic Response | Non-magnetic (annealed) |
| Electrical Resistivity | ~0.72 µΩ·m |
Etched finish stainless steel sheet application
Etched finish stainless steel sheet application
| Interior Design | Decorative Architecture | Elevators & Lifts |
| Wall Cladding | Partitions | Signage |
| Commercial Spaces | Furniture | Kitchens |
| Retail Displays | Hotel Lobbies | Cabin Interiors |
