SA 335 P12 seamless pipe
A335 P12 pipe specification
A335 P12 pipe specification
| SPECIFICATION | DETAILS |
|---|---|
| Manufacturing Methods | Hot Finished Seamless Pipe, Cold Drawn Seamless Pipe |
| Tolerance | ID: ±1%, OD: -1%/+1% |
| Sizes | Diameter: 6.00 to 914.4 mm, Pipe: 1/8" - 24" NB |
| Delivery Condition | Annealed, Hard/Soft Cold-finished, Normalized |
| Test | Flattening test, Tensile mechanical test, Hardness test, Bend Test |
| Coating | Varnished, Polished, FBE/ Epoxy, 3PE |

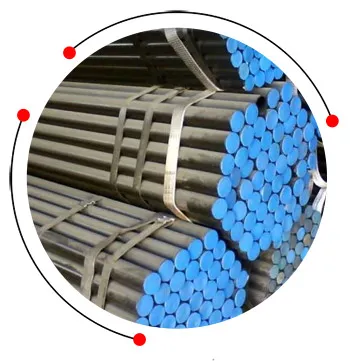

ASTM A335 P12 pipe

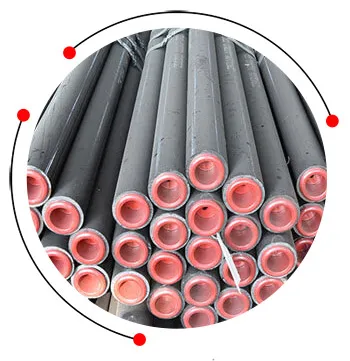

SA 335 P12 seamless pipe

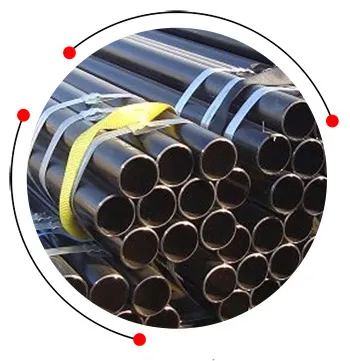

ASTM A335 grade P12 pipe

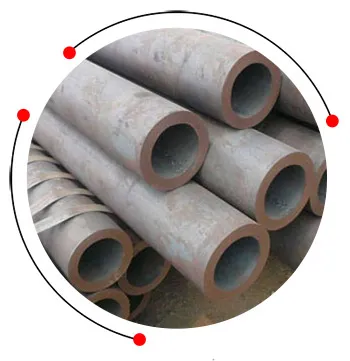

ASME SA335 gr P12 erw pipe

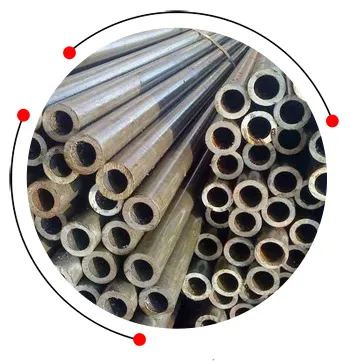

A335 gr P12 welded pipe

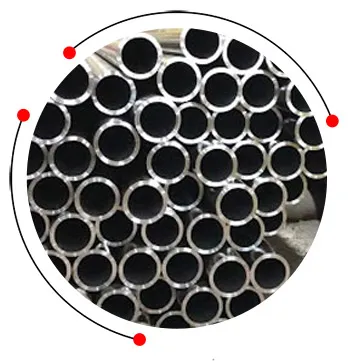

ASTM A335 grade P12 chrome pipe
Price list of SA 335 P12 seamless pipe
Price list of SA 335 P12 seamless pipe
| Description | Price in USD | Price in Kilogram (INR) |
|---|---|---|
| ASTM A335 Alloy Steel P12 Pipe, Nominal Size: 3 inch | $ 0.99 | ₹ 85 |
| ASTM A 335 P12 Alloy Steel Pipes, Size: 1/2 Inch And 3 Inch | $ 2.51 | ₹ 215 |
Schedule chart of ASTM A335 grade P12 pipe
Schedule chart of ASTM A335 grade P12 pipe
| NPS | OD (mm) | Sch 80 (WT mm) | Sch 40 (WT mm) | XXS (WT mm) | Sch 160 (WT mm) |
|---|---|---|---|---|---|
| 1 1/2" | 48.3 | 5.08 | 3.68 | 10.15 | 7.14 |
| 2" | 60.3 | 5.54 | 3.91 | 11.07 | 8.74 |
| 2 1/2" | 73.0 | 7.01 | 5.16 | 15.09 | 9.53 |
| 3" | 88.9 | 7.62 | 5.49 | 15.24 | 11.13 |
| 4" | 114.3 | 8.56 | 6.02 | 17.12 | 13.49 |
| 1/2" | 21.3 | 3.73 | 2.77 | 7.47 | 4.78 |
| 3/4" | 26.7 | 3.91 | 2.87 | 7.82 | 5.56 |
| 1" | 33.4 | 4.55 | 3.38 | 9.09 | 6.35 |
| 1 1/4" | 42.2 | 4.85 | 3.56 | 9.70 | 6.35 |
| 5" | 141.3 | 9.53 | 6.55 | 19.05 | 15.88 |
| 6" | 168.3 | 10.97 | 7.11 | 21.95 | 18.26 |
| 8" | 219.1 | 12.70 | 8.18 | 28.58 | 23.01 |
| 10" | 273.1 | 15.09 | 9.27 | 31.75 | 28.58 |
| 12" | 323.9 | 17.48 | 9.53 | 36.53 | 33.32 |
P12 chemical composition
P12 chemical composition
| C, % | P, % | S, % | Mn, % | Si, % | Mo, % | Cr, % |
| 0.015 maximum | 0.025 maximum | 0.025 maximum | 0.30-0.61 | 0.50 maximum | 0.45-0.65 | 0.80-1.25 |
Mechanical properties of ASME SA335 Gr P12 erw pipe
Mechanical properties of ASME SA335 Gr P12 erw pipe
| Tensile Strength, MPa | Elongation, % | Yield Strength, MPa |
| 415 minimum | 30 minimum | 205 minimum |
P12 pipe equivalent grades
P12 pipe equivalent grades
| ASTM | Equivalent material | JIS G 3458 | ASME | BS | LRS | UNS | ABS | DIN | NK |
|---|---|---|---|---|---|---|---|---|---|
| A335 P12 | T12 | STPA 22 | SA335 P12 | 3604 P1 620-440 | Sec 2 1Cr 1/2Mo440 |
K11562 | ABS 12 | 17175 13CrMo44 |
KSTPA 22 |
| Sec 3 1Cr 1/2Mo440 |
A335 Gr P12 welded pipe application
- Pharmaceuticals
- Chemical Equipment
- Specialty Chemicals
- Off-Shore Oil Drilling Companies
- Sea Water Equipment
- Power Generation
- Condensers
- Gas Processing
- Pulp and Paper Industry
- Pharmaceutical Equipment
- Heat Exchangers
- Petrochemicals
Weight chart of P12 alloy steel seamless pipe
Weight chart of P12 alloy steel seamless pipe
| NPS | OD (mm) | Sch 40 (WT mm) | Sch 80 (WT mm) | Weight (kg/m) | Weight (kg/m) |
|---|---|---|---|---|---|
| 2 1/2" | 73.0 | 5.16 | 7.01 | 11.00 | 14.70 |
| 3" | 88.9 | 5.49 | 7.62 | 15.28 | 20.87 |
| 4" | 114.3 | 6.02 | 8.56 | 22.27 | 30.75 |
| 6" | 168.3 | 7.11 | 10.97 | 37.74 | 57.85 |
| 8" | 219.1 | 8.18 | 12.70 | 55.62 | 84.76 |
| 10" | 273.1 | 9.27 | 15.09 | 82.38 | 129.30 |
| 12" | 323.9 | 9.53 | 17.48 | 103.72 | 180.20 |
| 1/2" | 21.3 | 2.77 | 3.73 | 1.28 | 1.68 |
| 3/4" | 26.7 | 2.87 | 3.91 | 1.91 | 2.51 |
| 1" | 33.4 | 3.38 | 4.55 | 2.96 | 3.91 |
| 1 1/4" | 42.2 | 3.56 | 4.85 | 4.43 | 5.83 |
| 1 1/2" | 48.3 | 3.68 | 5.08 | 5.48 | 7.31 |
| 2" | 60.3 | 3.91 | 5.54 | 7.56 | 10.29 |
| 14" | 355.6 | 9.53 | 19.05 | 114.10 | 221.76 |
| 16" | 406.4 | 9.53 | 21.44 | 130.40 | 266.68 |
ASTM A335 grade P12 chrome pipe tolerance chart
ASTM A335 grade P12 chrome pipe tolerance chart
| OD Tolerance | NPS | NPS | WT Tolerance |
| +/- 0.4 | 1/8 inches ≤ NPS ≤ 1 1/2 inches | 1/8 inches ≤ NPS ≤ 2 1/2 inches , All T/D ratios. | +20%, -12.5% |
| +/- 0.79 | 1 1/2 < NPS ≤ 4 inches | NPS ≥ 2 1/2 inches , T/D ≤ 5% | +22.5%, -12.5% |
| +1.59, -0.79 | 4 inches < NPS ≤ 8 inches | NPS ≥ 2 1/2 inches , T/D > 5% | +15%, -12.5% |
| +2.38, -0.79 | 8 inches < NPS ≤ 12 inches | (T= Specified Wall Thickness; D = Specified Outside Diameter) | |
ASTM A335 P12 pipe sizes
ASTM A335 P12 pipe sizes
| NPS (inches) | OD (mm) | Sch 80 WT (mm) | Sch 160 WT (mm) | Sch 40 WT (mm) |
|---|---|---|---|---|
| 1/2" | 21.3 | 3.73 | 4.78 | 2.77 |
| 3/4" | 26.7 | 3.91 | 5.56 | 2.87 |
| 1" | 33.4 | 4.55 | 6.35 | 3.38 |
| 1 1/2" | 48.3 | 5.08 | 7.14 | 3.68 |
| 2" | 60.3 | 5.54 | 8.74 | 3.91 |
| 3" | 88.9 | 7.62 | 11.13 | 5.49 |
| 4" | 114.3 | 8.56 | 13.49 | 6.02 |
| 6" | 168.3 | 10.97 | 18.26 | 7.11 |
| 8" | 219.1 | 12.70 | 23.01 | 8.18 |
| 10" | 273.1 | 15.09 | 28.58 | 9.27 |
| 12" | 323.9 | 17.48 | 33.32 | 9.53 |
ASME SA335 P12 material dimension
ASME SA335 P12 material dimension
| Sizes NPS | Wall Thk | Pipes Outer Dia. | Gallon Capacity Per Linear Foot | Std to XXHY | Weight per Foot | Pipes Inner Dia. | sch Pipes # |
Section Modulus |
| 1/2 inch | 0.109 | 0.84 | .0158 | STD | 0.85 | 0.622 | 40 | .0407 |
| 0.147 | .0122 | XHY | 1.09 | 0.546 | 80 | .0478 | ||
| 0.188 | .0088 | 1.31 | 0.464 | 160 | .0528 | |||
| 0.294 | .0026 | XXHY | 1.72 | 0.252 | .0577 | |||
| 3/4 inch | 0.113 | 1.05 | .0277 | STD | 1.13 | 0.824 | 40 | .0705 |
| 0.154 | .0225 | XHY | 1.48 | 0.742 | 80 | .0853 | ||
| 0.219 | .0153 | 1.95 | 0.612 | 160 | .1006 | |||
| 0.308 | .0077 | XXHY | 2.44 | 0.434 | .1103 | |||
| 1 inch | 0.133 | 1.315 | .0449 | STD | 1.68 | 1.049 | 40 | .1328 |
| 0.179 | .0374 | XHY | 2.17 | 0.957 | 80 | .1606 | ||
| 0.250 | .0271 | 2.85 | 0.815 | 160 | .1904 | |||
| 0.358 | .0146 | XXHY | 3.66 | 0.599 | .2136 | |||
| 1 1/4 inch | 0.140 | 1.66 | .0777 | STD | 2.27 | 1.380 | 40 | .2346 |
| 0.191 | .0666 | XHY | 3.00 | 1.278 | 80 | .2913 | ||
| 0.250 | .0549 | 3.77 | 1.160 | 160 | .3421 | |||
| 0.382 | .0328 | 5.22 | 0.896 | .4110 | ||||
| 1 1/2 inch | 0.145 | 1.90 | .1058 | STD | 2.72 | 1.610 | 40 | .3262 |
| 0.200 | .0918 | XHY | 3.63 | 1.500 | 80 | .4118 | ||
| 0.281 | .0730 | 4.86 | 1.338 | 160 | .5079 | |||
| 0.400 | .0494 | 6.41 | 1.100 | .5977 | ||||
| 2 inch | 0.109 | 2.375 | .1898 | 2.64 | 2.157 | 10 | .4205 | |
| 0.154 | .1743 | STD | 3.66 | 2.067 | 40 | .5606 | ||
| 0.218 | .1534 | XHY | 5.03 | 1.939 | 80 | .7309 | ||
| 0.250 | .1434 | 5.68 | 1.875 | .8045 | ||||
| 0.281 | .1344 | 6.29 | 1.813 | .8666 | ||||
| 0.344 | .1161 | 7.47 | 1.687 | 160 | .9806 | |||
| 0.436 | .0922 | XXHY | 9.04 | 1.503 | 1.1043 | |||
| 2 1/2 inch | 0.120 | 2.875 | .2833 | 3.53 | 2.635 | 10 | .6870 | |
| 0.203 | .2487 | STD. | 5.80 | 2.469 | 40 | 1.0640 | ||
| 0.216 | .2435 | 6.14 | 2.443 | 1.1169 | ||||
| 0.250 | .2301 | 7.02 | 2.375 | 1.2468 | ||||
| 0.276 | .2202 | XHY | 7.67 | 2.323 | 80 | 1.3386 | ||
| 0.375 | .1842 | 10.02 | 2.125 | 160 | 1.6371 | |||
| 0.552 | .1280 | XXXHY | 13.71 | 1.771 | 1.9971 | |||
| 3inch | 0.120 | 3.50 | .4336 | 4.34 | 3.260 | 1.0411 | ||
| 0.156 | .4147 | 5.58 | 3.188 | 1.3122 | ||||
| 0.172 | .4064 | 6.12 | 3.156 | 1.4265 | ||||
| 0.188 | .3984 | 6.66 | 3.124 | 1.5342 | ||||
| 0.216 | .3840 | STD. | 7.58 | 3.068 | 40 | 1.7241 | ||
| 0.250 | .3672 | 8.69 | 3.000 | 1.9372 | ||||
| 0.281 | .3521 | 9.67 | 2.938 | 2.1207 | ||||
| 0.300 | .3431 | XHY | 10.26 | 2.900 | 80 | 2.2253 | ||
| 0.438 | .2811 | 14.34 | 2.624 | 160 | 2.8774 | |||
| 0.600 | .2158 | XXHY | 18.6 | 2.300 | 3.4243 | |||
| 3 1/2inch | 0.120 | 4.0 | .5768 | 4.98 | 3.760 | 10 | 1.3776 | |
| 0.226 | .5136 | STD. | 9.12 | 3.548 | 140 | 2.3939 | ||
| 0.250 | .4998 | 10.02 | 3.500 | 2.6001 | ||||
| 0.281 | .4821 | 11.17 | 3.438 | 2.8562 | ||||
| 0.318 | .4617 | XHY | 12.52 | 3.364 | 80 | 3.1400 | ||
| 0.636 | .3085 | XXHY | 22.87 | 2..728 | 4.8795 | |||
| 4inch | 0.120 | 4.5 | .7404 | 5.62 | 4.260 | 10 | 1.7612 | |
| 0.156 | .7156 | 7.24 | 4.188 | 2.2354 | ||||
| 0.188 | .6942 | 8.67 | 4.124 | 2.6296 | ||||
| 0.203 | .6838 | 9.32 | 4.094 | 2.8173 | ||||
| 0.219 | .6725 | 10.02 | 4.062 | 3.0184 | ||||
| 0.237 | .6613 | STD. | 10.80 | 4.026 | 40 | 3.2145 | ||
| 0.250 | .6528 | 11.36 | 4.000 | 3.3611 | ||||
| 0.281 | .6326 | 12.67 | 3.938 | 60 | 3.7021 | |||
| 0.312 | .6126 | 13.97 | 3.876 | 4.0273 | ||||
| 0.337 | .5972 | XHY | 15.00 | 3.826 | 80 | 4.2713 | ||
| 0.438 | .5361 | 19.02 | 3.624 | 120 | 5.1790 | |||
| 0.531 | .4822 | 22.53 | 3.438 | 160 | 5.8997 | |||
| 0.674 | .4054 | XXHY | 27.57 | 3.152 | 6.7927 | |||
| 5inch | 0.188 | 5.563 | 1.0979 | 10.80 | 5.187 | 4.1161 | ||
| 0.219 | 1.0716 | 12.51 | 5.125 | 4.7279 | ||||
| 0.258 | 1.0391 | STD. | 14.63 | 5.047 | 40 | 5.4500 | ||
| 0.281 | 1.0204 | 15.87 | 5.001 | 5.8644 | ||||
| 0.312 | .99647 | 17.51 | 4.939 | 6.4074 | ||||
| 0.344 | .9696 | 19.19 | 4.875 | 6.9358 | ||||
| 0.375 | .9449 | XHY | 20.80 | 4.813 | 80 | 7.4300 | ||
| 0.500 | .8495 | 27.06 | 4.563 | 120 | 9.2534 | |||
| 0.625 | .7590 | 32.99 | 4.313 | 160 | 10.7976 | |||
| 0.750 | .6734 | XXHY | 38.59 | 4.063 | 12.0954 | |||
| 6inch | 0.109 | 6.625 | 1.6748 | 7.59 | 6.407 | 5 | 3.5769 | |
| 0.134 | 1.6488 | 9.30 | 6.357 | 10 | 4.3475 | |||
| 0.156 | 1.6260 | 10.79 | 6.313 | 5.0107 | ||||
| 0.188 | 1.5937 | 12.94 | 6.249 | 5.9351 | ||||
| 0.203 | 1.5780 | 13.94 | 6.219 | 6.3804 | ||||
| 0.219 | 1.5620 | 15.00 | 6.187 | 6.8261 | ||||
| 0.250 | 1.5306 | 17.04 | 6.125 | 7.6905 | ||||
| 0.280 | 1.5008 | STD. | 18.99 | 6.065 | 40 | 8.4958 | ||
| 0.312 | 1.4688 | 21.06 | 6.001 | 9.3416 | ||||
| 0.344 | 1.4391 | 23.10 | 5.937 | 10.111 | ||||
| 0.375 | 1.4082 | 25.05 | 5.875 | 10.893 | ||||
| 0.432 | 1.3541 | XHY | 28.60 | 5.761 | 80 | 12.224 | ||
| 0.500 | 1.2909 | 32.74 | 5.625 | 13.711 | ||||
| 0.562 | 1.2346 | 36.43 | 5.501 | 120 | 14.9806 | |||
| 0.625 | 1.1787 | 40.09 | 5.375 | 16.1821 | ||||
| 0.719 | 1.0977 | 45.39 | 5.187 | 160 | 17.8243 | |||
| 0.864 | .9784 | XXHY | 53.21 | 4.897 | 20.025 | |||
| 1.000 | .8727 | 60.13 | 4.625 | 21.7719 | ||||
| 1.125 | .7809 | 66.14 | 4.375 | 23.1237 |
