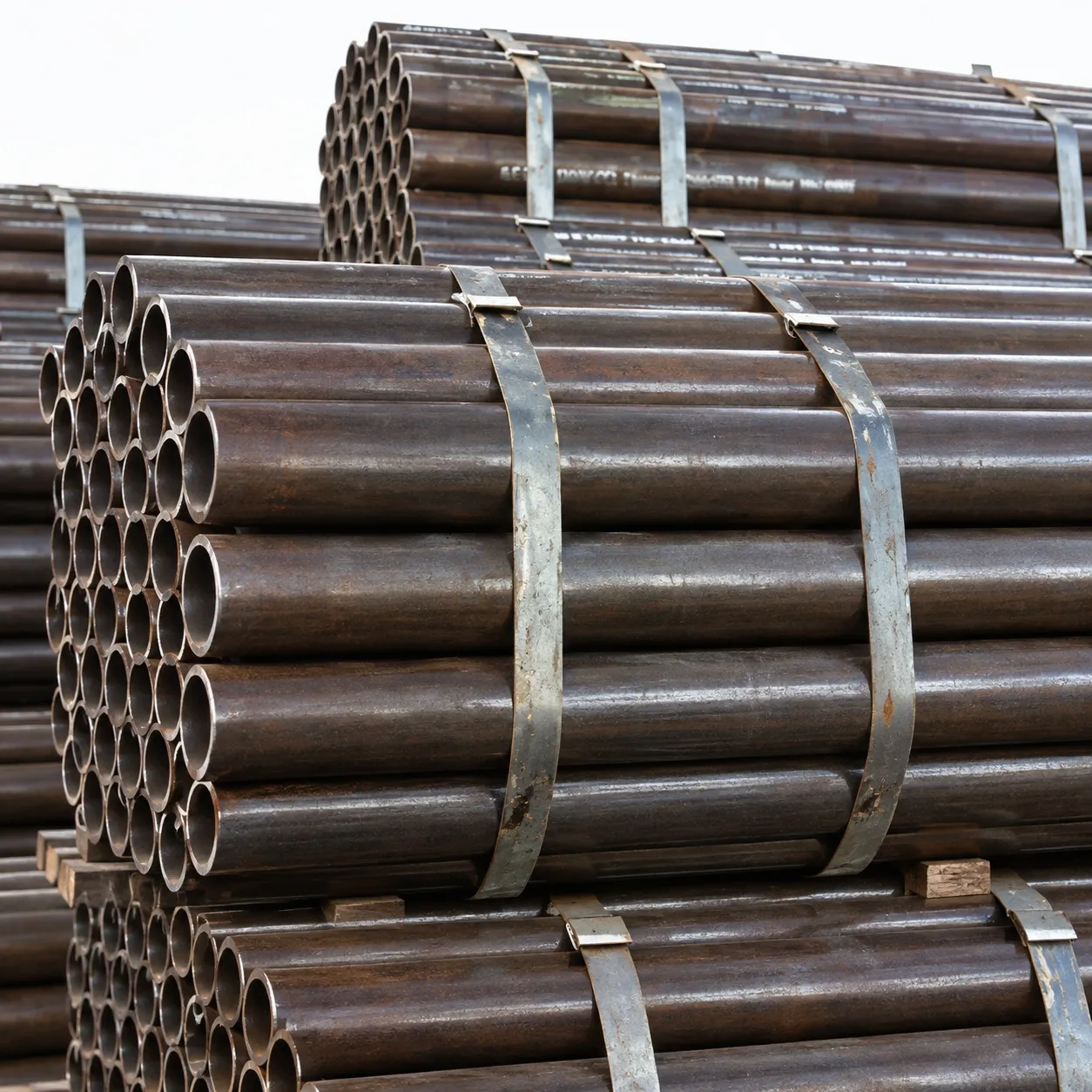

ASTM A106 Grade B Pipe manufacturer in India
ISO Certified Manufacturer

A106 Grade B Pipe

A106 Grade B Pipe is a seamless carbon steel pipe commonly used for high-temperature service, process piping, refineries, power plants, petrochemical facilities, and industrial applications. It is specified under ASTM A106/A106M, with Grade B being one of the commonly used grades within the specification.

Also searched as A106 Gr B Pipe, A106 Gr B, and A106B Pipe, this product is selected where seamless carbon steel piping is required for elevated-temperature service.

The appropriate pipe should be selected according to the applicable specification, pressure and temperature conditions, pipe dimensions, corrosion allowance, fabrication requirements, and project design.

20+
Years of Experience
50+
Grades in Stock
1/8"–2–4"
Size Range
100%
Quality Tested

A106 Gr B pipe specification

A106 Gr B pipe specification

SPECIFICATIONDETAILS
Welding ProcedureFCAW, SMAW, GMAW, GTAW
Length18 m, 3 m, Custom length
Manufacturing MethodsFabricated, ERW, Extrusion
Pipe EndBeveled Ends, Plain Ends, Threaded Ends
ToleranceCold Drawn: +/-0.1 mm, Cold Rolled: +/-0.05 mm, OD: +/-1%
FormRectangle, Round, Square
SizesDiameter: 25 to 750 mm, Pipe: 1/2” to 36”
ASME CodeASME B36.10m/B36.19m
ScheduleSch 5 to Sch 160

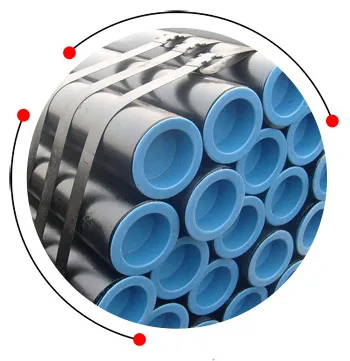

ASTM A106 Grade B pipe

ASTM A106 Grade B pipe

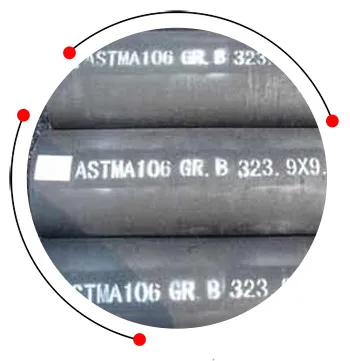

SA 106 Gr B seamless pipe

SA 106 Gr B seamless pipe

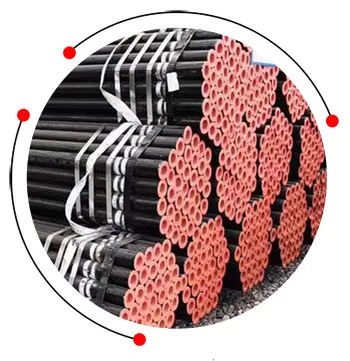

A106 galvanized pipe

A106 galvanized pipe

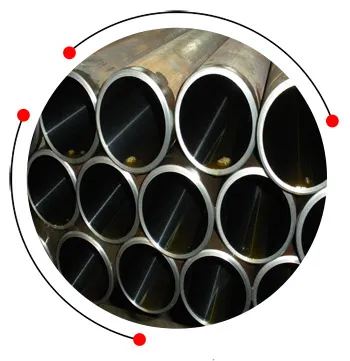

A106 GR B material

A106 GR B material

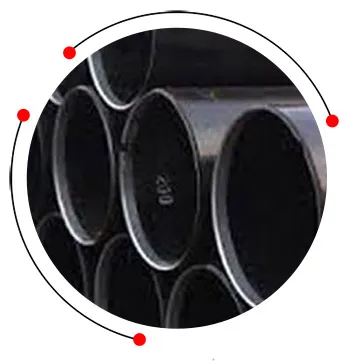

SA 106 GR B erw pipe

SA 106 GR B erw pipe

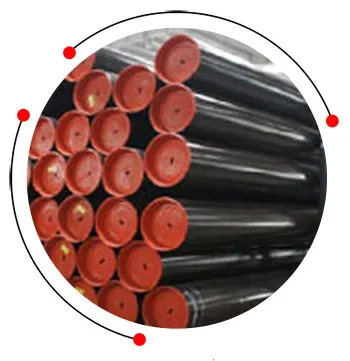

ASTM A106 Gr.B carbon steel welded pipe

ASTM A106 Gr.B carbon steel welded pipe

ASTM A106 Grade B pipe price

ASTM A106 Grade B pipe price

Description Price in USD Price in Kilogram (INR)
A-106 Seamless Pipes, Size: 2 Inch $ 1.05 ₹ 90
ASTM A106 Grade B Seamless Pipe, Thickness: 2mm To 80mm $ 0.99 ₹ 85
Square Black MS 106 Gr B Seamless Pipes, Thickness: 5 mm $ 1.05 ₹ 90
Astm A106 Gr B Seamless Pipe, 3 inches $ 9.93 ₹ 850

A106 Gr B smls pipe coating

  • Epoxy coating
  • 3PE
  • varnished
  • polythylene coating
  • Black paint
  • CRA Clad and lined
  • FBE

Tolerance of SA 106 Gr B pipe

Tolerance of SA 106 Gr B pipe

Size Over Under
1 ½ and smaller +1 / 64" -1 / 64"
Over 18 +1 / 8" -1 / 32"
10 - 18 +3 / 32"
5 - 8 +1 / 16"
2 - 4 +1 / 32"

OD Tolerance of 106 Gr.B pipe

OD Tolerance of 106 Gr.B pipe

NPS Over Under
mm in. mm in.
Over 34 - 48, incl 4.8 3/16 0.8 1/32
Over 26 - 34, incl 4 5/32
Over 18 - 26, incl 3.2 1/8
Over 8 - 18, incl 2.4 3/32
Over 4 - 8, incl 1.6 1/16
Over 1-1/2 - 4, incl 0.8 1/32
1/8 - 1-1/2, incl 0.4 1/64 0.4 1/64

ASTM A106 Grade B pipe dimensions

ASTM A106 Grade B pipe dimensions

NB Size Wall Thickness (mm)
OD S160 S140 S120 S100 S80 XS/80S S60 S40 S20 S10 10S 5S 40S
65 2 1/2" 73.03 9.53 7.01 7.01 5.16 3.1 2.1 5.2
90 3 1/2" 101.6 8.08 8.08 5.74 3.1 2.1 5.7
80 3" 88.9 11.1 7.62 7.62 5.49 3.1 2.1 5.5
100 4" 114.3 13.5 11.1 8.56 8.56 6.02 3.1 2.1 6
150 6" 168.3 18.3 14.3 11 10.97 7.11 3.4 2.8 7.1
125 5" 141.3 15.9 12.7 9.53 9.53 6.55 3.4 2.8 6.6
25 1" 33.4 6.35 4.55 4.55 3.38 2.8 1.7 3.4
20 3/4" 26.67 5.56 3.91 3.91 2.87 2.1 1.7 2.9
15 1/2" 21.34 4.78 3.73 3.73 2.77 2.1 1.7 2.8
32 1 1/4" 42.16 6.35 4.85 4.85 3.56 2.8 1.7 3.6
50 2" 60.33 9.74 5.54 5.54 3.91 2.8 1.7 3.9
40 1 1/2" 48.26 7.14 5.08 5.08 3.68 2.8 1.7 3.7
200 8" 219.1 23 20.6 19.3 15.1 12.7 12.7 10.3 8.18 6.4 3.8 2.8 8.2
300 12" 323.9 33.3 28.6 25.4 21.4 17.5 12.7 14.3 10.3 6.4 4.6 4 9.5
250 10" 273.1 28.6 25.4 21.4 19.3 15.1 12.7 12.7 9.27 6.4 4.2 3.4 9.3
350 14" 355.6 35.7 31.8 27.8 23.8 19.1 12.7 15.1 11.1 7.9 6.4 4.8 4 9.5
450 18" 457.2 45.2 39.7 34.9 29.4 23.8 12.7 19.1 14.3 7.9 6.4 4.8 4.2 9.5
400 16" 406.4 40.5 36.5 31 26.2 21.4 12.7 16.7 12.7 7.9 6.4 4.8 4.2 9.5
500 20" 508 50 44.5 38.1 32.5 26.2 12.7 20.6 15.1 9.5 6.4 5.5 4.8 9.5
600 24" 609.6 59.5 52.4 46 38.9 31 12.7 24.6 17.5 9.5 6.4 6.4 5.5 9.5
550 22" 558.8 54 47.6 41.3 34.9 28.6 12.7 22.2 9.5 6.4 5.5 4.8 9.5
650 26" 660.4 12.7 13 7.9 9.5
750 30" 762 12.7 13 7.9 7.9 6.4 9.5
700 28" 711.2 12.7 13 7.9 9.5
800 32" 812.8 12.7 17.5 13 7.9 9.5
900 36" 914.4 12.7 19.1 13 7.9 9.5
850 34" 863.6 12.7 17.5 13 7.9 9.5

A106 Gr B pipe weight

A106 Gr B pipe weight

NB Size OD XS SCH 40 SCH 60 SCH STD SCH 30 SCH 20
mm in. mm Weight WT Weight WT Weight WT Weight WT Weight WT Weight
50 2 60.3 7.48 3.9 5.44 3.9 5.44
40 11/2 48.3 5.41 3.68 4.05 3.68 4.05
65 21/2 73 11.41 5.16 8.63 5.2 8.63
90 31/2 1.6 18.63 5.74 13.57 5.74 13.57
80 3/8 88.9 15.3 5.5 11.3 5.5 11.3
10 3/8 17.1 1.1 2.31 0.84 2.31 0.84
6 ¼ 13.7 0.804 2.24 0.625 2.24 0.63
3 1/8 10.3 0.47 1.73 0.357 1.73 0.37
15 ½ 21.3 1.62 2.77 1.26 2.77 1.26
25 1 33.4 3.24 3.38 2.5 3.38 2.5
20 ¾ 26.7 2.2 2.87 1.68 2.87 1.69
32 11/4 42.2 4.47 3.56 3.38 3.56 3.39
100 4 114.3 22.3 6.02 16.07 6.02 16.07
150 6 168.3 42.5 7.11 28.26 7.11 28.26
125 5 141.3 30.9 6.55 21.77 6.6 21.77
200 8 219.1 64.6 8.2 42.5 10.3 53.1 8.2 42.5 7 36.8 6.35 33.3
300 12 323.9 97.4 10.3 79.7 14.3 109 9.53 73.8 8.4 65.2 6.35 49.7
250 10 273 81.5 9.27 60.3 12.7 81.5 9.27 60.3 7.8 51.3 6.35 41.7
350 14 355.6 107 11.13 94.3 15.1 126.4 9.53 81.3 9.53 81.3 7.92 68.1
450 18 457.2 130 14.3 156 19 206 9.53 105 11.1 122 7.92 87.8
400 16 406.4 123 12.7 123 16.7 160 9.53 93.3 9.5 93.3 7.92 77.9
500 20 508 155.1 15.1 183 20.6 248 9.53 177.2 12.7 155.1 9.53 117.2
600 24 609.6 187 17.4 255 24.5 355 9.53 141 14.3 210 9.53 141
550 22 558.8 171 22.2 294 9.53 129 12.7 171 9.53 129

A106 Grade B pipe sizes

A106 Grade B pipe sizes

Size (in.) OD (mm) NB (mm)
6 168.3 150
5 141.3 125
4 114.3 100
31/2 1.6 90
3/8 88.9 80
21/2 73 65
2 60.3 50
24 609.6 600
22 558.8 550
20 508 500
18 457.2 450
16 406.4 400
14 355.6 350
12 323.9 300
10 273 250
8 219.1 200
11/2 48.3 40
11/4 42.2 32
1 33.4 25
¾ 26.7 20
½ 21.3 15
3/8 17.1 10
¼ 13.7 6
1/8 10.3 3

A106 Gr B erw pipe testing

  • Tensile test
  • Flux leakage
  • PMI test
  • Flattening test
  • Eddy current test
  • Hydrostatic test
  • Non-destructive test
  • Hardness test

A106 Gr B material chemical composition

A106 Gr B material chemical composition

Grade Mn Si(Min) C(Max) Ni(Max) S(Max) V(Max) Cu(Max) Cr(Max) Mo(Max) P(Max)
B 0.29~1.06 0.1 0.3 0.4 0.035 0.08 0.4 0.4 0.15 0.035

A106 Grade B pipe equivalent

A106 Grade B pipe equivalent

Execution Material Grade Standard
Seamless P265GH A106 gr b EN 10216-2

ASTM A106 Grade B pipe material properties

ASTM A106 Grade B pipe material properties

Grade Tensile Strength, Min. Yield Strength, Min.
B 415 Mpa 240 Mpa

A106 Gr B seamless pipe standards

  • ASTM E 381
  • ASTM E 309
  • ASTM A 530 / A 530 M
  • ASTM E 570
  • ASME B36.10M
  • ASTM E 213

A106 Gr B pipe yield strength

A106 Gr B pipe yield strength

Seamless Grade B Grade A Grade C
Yield Strength, min., psi 35,000 30,000 40,000
Tensile Strength, min., psi 60,000 48,000 70,000

A106 Gr B temperature range

A106 Gr B temperature range

ASTM A106 -20°F to 400°F (-29°C to 204°C)

A106 Grade B pipe pressure rating

A106 Grade B pipe pressure rating

Maximum Allowable Pressure (psig)
A106 Pipes Size
(inches) 		Pipes Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
4" 40 1435 1435 1435 1435 1435 1435 1435 1378 1244
80 2075 2075 2075 2075 2075 2075 2075 1992 1798
160 3376 3376 3376 3376 3376 3376 3376 3241 2926
5" 40 1258 1258 1258 1258 1258 1258 1258 1208 1090
80 1857 1857 1857 1857 1857 1857 1857 1783 1610
160 3201 3201 3201 3201 3201 3201 3201 3073 2774
6" 40 1143 1143 1143 1143 1143 1143 1143 1098 991
80 1794 1794 1794 1794 1794 1794 1794 1722 1554
160 3083 3083 3083 3083 3083 3083 3083 2960 2672
1" 401 2857 2857 2857 2857 2857 2857 2857 2743 2476
802 3950 3950 3950 3950 3950 3950 3950 3792 3423
160 5757 5757 5757 5757 5757 5757 5757 5526 4989
1 1/2" 40 2116 2116 2116 2116 2116 2116 2116 2032 1834
80 2983 2983 2983 2983 2983 2983 2983 2864 2585
160 4331 4331 4331 4331 4331 4331 4331 4157 3753
2" 40 1783 1783 1783 1783 1783 1783 1783 1712 1545
80 2575 2575 2575 2575 2575 2575 2575 2472 2232
160 4217 4217 4217 4217 4217 4217 4217 4049 3655
3" 40 1693 1693 1693 1693 1693 1693 1693 1625 1467
80 2394 2394 2394 2394 2394 2394 2394 2298 2074
160 3600 3600 3600 3600 3600 3600 3600 3456 3120
8" 40 1006 1006 1006 1006 1006 1006 1006 966 872
80 1586 1586 1586 1586 1586 1586 1586 1523 1375
160 2976 2976 2976 2976 2976 2976 2976 2857 2579
10" 40 913 913 913 913 913 913 913 876 791
80 1509 1509 1509 1509 1509 1509 1509 1448 1308
160 2950 2950 2950 2950 2950 2950 2950 2832 2557

ASTM A106 Grade B seamless pipe wall thickness

ASTM A106 Grade B seamless pipe wall thickness

Types A106 Grade B Wall thickness Out diameter Length
ASTM A106 Gr B ERW Pipes (Custom Sizes) As per requirement 1/2" NB - 24" NB Custom
SA106 Grade B Welded Pipes (in Stock + Custom Sizes) As per requirement 1/2" NB - 24" NB
A106 Gr B Seamless Pipes (Custom Sizes) SCH 10 / SCH 5 / SCH 80 /SCH 40 / SCH 160 1/2" NB - 60" NB
SA106 Gr B SAW Pipes As per requirement 16" NB - 100" NB

ASTM A106 Grade B carbon steel pipe hsn code

ASTM A106 Grade B carbon steel pipe hsn code

SA106 GR B hsn code 73041910

ASTM A106 Grade B erw pipe applications

  • Heat Exchangers
  • Ship Building
  • Nuclear Power
  • Paper & Pulp
  • Power Plants
  • Marine
  • Refineries
  • Condensers
  • Boilers

ASTM A106 Grade B pipe schedule chart

ASTM A106 Grade B pipe schedule chart

OD in inch NPS in inch Schedule 40 Schedule 120 Schedule 30 Schedule 10 Schedule 80 Schedule 160
2.375 2 .154 .218 .344
3.500 3 .216 .3 .438
4.500 4 .237 .438 .337 .531
6.625 6 .28 .562 .432 .719
.405 1/8 .068 .095
.675 3/8 .091 .126
1.050 3/4 .113 .154 .219
1.660 1 1/4 .14 .191 .25
1.750 10 .365 .844 .307 .594 1.125
14 14 .438 1.094 .375 .25 .75 1.406
18 18 .562 1.375 .438 .25 .938 1.781
22 22 1.625 .5 .25 1.125 2.125
30 30 .625 .312
34 34 .688 .625 .312

A106 Grade B pipe allowable stress

A106 Grade B pipe allowable stress

allowable stress 17,100 psi (-20º to 650ºF)

A106 Grade A vs Grade B

A106 Grade A vs Grade B

Properties ASTM A106 Grade A ASTM A106 Grade B
Tensile Strength ≥ 330 MPa (48,000 psi) ≥ 415 MPa (60,000 psi)
Carbon Content (C) ≤ 0.25% ≤ 0.30%
Yield Strength ≥ 205 MPa (30,000 psi) ≥ 240 MPa (35,000 psi)
Application Low-pressure & structural uses High-pressure, high-temp pipelines
Elongation (%) ≥ 35% ≥ 30%
Hardness Lower Higher
Cost & Availability Lower cost Slightly higher cost

Difference between SA106 Grade B and C

Difference between SA106 Grade B and C

Properties ASTM A106 Grade B ASTM A106 Grade C
Carbon Content (C) ≤ 0.30% ≤ 0.35%
Allowable Stress 20,000 psi (138 MPa) 23,300 psi (160 MPa)
Tensile Strength ≥ 415 MPa (60,000 psi) ≥ 485 MPa (70,000 psi)
Elongation (%) ≥ 30% ≥ 28%
Weldability Easier to weld preheating Requires
Yield Strength ≥ 240 MPa (35,000 psi) ≥ 275 MPa (40,000 psi)
Application General high-temperature uses High-temperature & high-pressure pipelines

ASTM A106 Gr B density

ASTM A106 Gr B density

Density at 20 °C
Kg/dm³ 		7,85

What Is A106 Grade B Pipe?

A106 Grade B Pipe is a seamless carbon steel pipe manufactured according to ASTM A106/A106M requirements for high-temperature service.

It is commonly used for transporting:

  • Steam
  • Water
  • Oil
  • Gas
  • Process fluids
  • Hydrocarbon fluids
  • Other industrial media

ASTM A106 is a pipe product specification, while Grade B identifies the material grade within that specification.

The common designations include:

  • A106 Grade B Pipe
  • ASTM A106 Grade B Pipe
  • A106 Gr B Pipe
  • A106 Gr B
  • A106B Pipe
  • ASTM A106B
  • A106 Grade B Seamless Pipe

Key Properties of A106 Grade B Pipe

A106 Grade B provides a combination of mechanical strength, weldability, and suitability for elevated-temperature service.

Important characteristics include:

  • Seamless construction
  • Good strength
  • Good weldability with appropriate procedures
  • Suitable for high-temperature service
  • Good machinability and fabrication characteristics
  • Widely used in industrial process piping
  • Available in a broad range of pipe sizes and wall thicknesses

Actual performance depends on the grade, dimensions, temperature, pressure, service medium, and applicable design code.

A106 Grade B Mechanical Properties

Mechanical properties are an important consideration when selecting A106 Grade B Pipe.

Typical requirements cover:

  • Tensile strength
  • Yield strength
  • Elongation
  • Bend or other specified mechanical testing

Actual minimum values and testing requirements should be verified against the applicable ASTM specification and product condition.

A106 Grade B Seamless Pipe

A106 Grade B Seamless Pipe is manufactured without a longitudinal welded seam.

The seamless construction and material specification make it widely used in process and high-temperature piping applications.

Typical applications include:

  • Steam piping
  • Boiler-related piping
  • Refineries
  • Petrochemical plants
  • Power-generation facilities
  • Process plants
  • Oil and gas facilities
  • High-temperature fluid transportation

The required pipe size, wall thickness, temperature, pressure, and applicable piping code should be evaluated before selection.

A106 Gr B Pipe Applications

A106 Gr B Pipe is commonly used in industries where carbon steel piping is suitable for elevated-temperature service.

Oil and Gas
Used in selected process and transportation piping systems in oil and gas facilities.

Petrochemical
Used for process piping, hydrocarbon systems, and utility services.

Refineries
A106 Grade B can be used in selected refinery piping applications involving high-temperature fluids.

Power Plants
Used in selected steam, water, and process piping systems.

Chemical Processing
Can be considered for process services where carbon steel provides adequate resistance to the service environment.

Industrial Manufacturing
Used in various industrial piping and fluid-transport applications.

Common Applications of A106 Grade B Pipe

  • Steam lines
  • Process piping
  • Oil transportation
  • Gas transportation
  • Water piping
  • Refineries
  • Petrochemical plants
  • Power plants
  • Chemical plants
  • Heat-transfer systems
  • Industrial process systems
  • High-temperature fluid service

Why Choose Spark Steel for A106 Grade B Pipe?

Spark Steel supplies stainless steel and specialty metal products for industrial requirements.

For A106 Grade B Pipe enquiries, customers can discuss:

  • ASTM A106 Grade B requirements
  • Pipe size and schedule
  • Seamless construction
  • Quantity
  • Length
  • Testing and inspection
  • Material certification
  • Delivery requirements

Exact availability, dimensions, certification, lead time, and pricing should be confirmed with Spark Steel before ordering.

Frequently Asked Questions About A106 Grade B Pipe

A106 Grade B Pipe is seamless carbon steel pipe manufactured to ASTM A106/A106M requirements for high-temperature service.

Yes. ASTM A106 is a specification for seamless carbon steel pipe intended for high-temperature service.

It is commonly used for selected steam, oil, gas, water, process, refinery, petrochemical, and power-generation piping applications.

Yes. ASTM A106 Grade B is specifically intended for high-temperature service, subject to applicable design and service limitations.

A106 is specifically intended for seamless carbon steel pipe for high-temperature service, while A53 covers pipe for mechanical and pressure applications and is available in seamless and welded forms.

Yes. A106 Grade B is a carbon steel pipe grade.

ASTM A106 Grade B pipe is seamless. If a project specifically requires welded carbon steel pipe, another applicable product specification should be considered.

A106 Grade B is commonly used for high-temperature service, while A333 Grade 6 is intended for low-temperature service and applications requiring notch toughness.

Ready to place an order?

we supply premium quality steel products for every industrial application. call us or send an enquiry and our team will respond within 24 hours.

send enquiry call now

WhatsApp Chat
